STDatasheet (PDF)

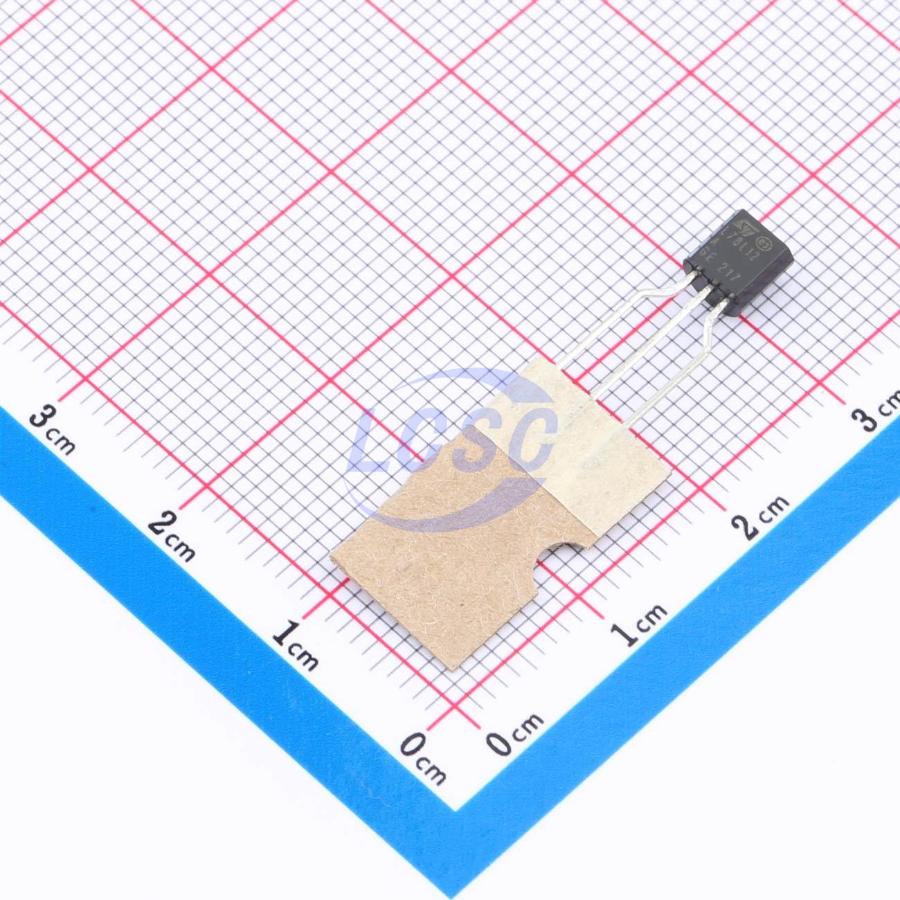

L78L12ABZ-AP
12V Positive Fixed TO-92-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-3ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L12ABZ-AP
- Store part #
- C3750366
- Package / case
- TO-92-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,615 in stock
#C3750366
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.39 | ₹226.95 |
| 50+ | ₹35.39 | ₹1,769.50 |
| 150+ | ₹31.10 | ₹4,665.00 |
| 500+ | ₹25.76 | ₹12,880.00 |
| 2,000+ | ₹23.38 | ₹46,760.00 |
| 4,000+ | ₹21.95 | ₹87,800.00 |
5 × ₹45.39
₹226.95
excl. GST
₹267.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per box
L78L12ABZ-AP
₹226.95 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.291 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78L12ABZ#C2887428ST · TO-92-3 | ST | TO-92-3 | 4,435 | ₹33.51 · 4,435 in stock | View |
 | L78L12ACZ-AP#C262913ST · TO-92-3 | ST | TO-92-3 | 2,995 | ₹60.49 · 2,995 in stock | View |
 | L78L12ACZ-TR#C2798210ST · TO-92-3 | ST | TO-92-3 | 160 | ₹30.81 · 160 in stock | View |
 | CJ78L12#C8616JSCJ · TO-92 | JSCJ | TO-92 | 1,630 | ₹9.05 · 1,630 in stock | View |
 | CJ78L12C-TAB-ABG#C20622072JSCJ · TO-92 | JSCJ | TO-92 | 780 | ₹8.31 · 780 in stock | View |
