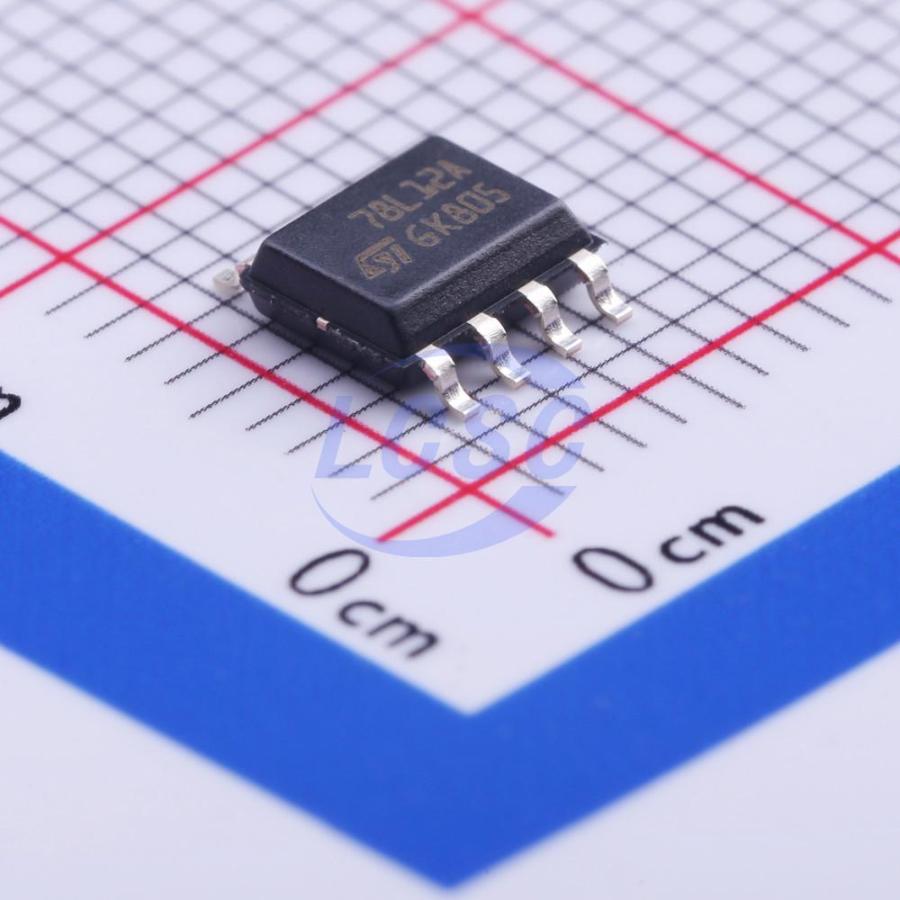

L78L12ACD13TR
12V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L12ACD13TR
- Store part #
- C79560
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,090 in stock
#C79560
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.86 | ₹104.30 |
| 50+ | ₹17.34 | ₹867.00 |
| 150+ | ₹15.60 | ₹2,340.00 |
| 500+ | ₹14.28 | ₹7,140.00 |
| 2,500+ | ₹13.22 | ₹33,050.00 |
| 5,000+ | ₹12.69 | ₹63,450.00 |
5 × ₹20.86
₹104.30
excl. GST
₹123.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L12ACD13TR
₹104.30 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Positive
- Operating Voltage
- 27V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78L12ABD-TR#C283280ST · SO-8 | ST | SO-8 | 2,365 | ₹19.49 · 2,365 in stock | View |
 | UA78L12ACDR#C398340TI · SOIC-8 | TI | SOIC-8 | 185 | ₹46.95 · 185 in stock | View |
 | MC78L12ACDR2G#C7373onsemi · SOIC-8 | onsemi | SOIC-8 | 5,580 | ₹20.57 · 5,580 in stock | View |
 | MC78L12ACDR2G-HXY#C19626999HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 455 | ₹19.50 · 455 in stock | View |
 | MC78L12ABDR2G#C232656onsemi · SOIC-8 | onsemi | SOIC-8 | 30,520 | ₹20.90 · 30,520 in stock | View |
