XBLWDatasheet (PDF)

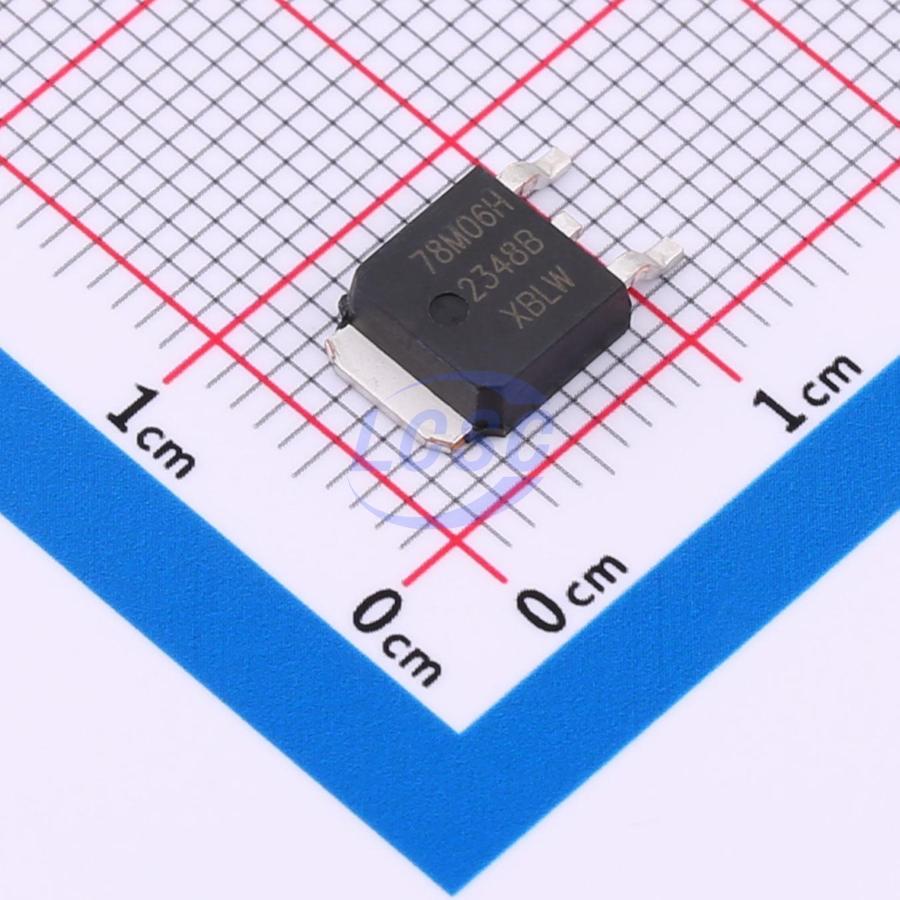

L78M06HDTR(XBLW)
6V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2ROHS CompliantActive
700mA Three-terminal Positive Regulators
- Manufacturer
- XBLW
- Manufacturer part #
- L78M06HDTR(XBLW)
- Store part #
- C20612522
- Package / case
- TO-252-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,615 in stock
#C20612522
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.75 | ₹43.75 |
| 50+ | ₹6.94 | ₹347.00 |
| 150+ | ₹6.04 | ₹906.00 |
| 500+ | ₹5.37 | ₹2,685.00 |
| 2,500+ | ₹4.83 | ₹12,075.00 |
| 5,000+ | ₹4.55 | ₹22,750.00 |
5 × ₹8.75
₹43.75
excl. GST
₹51.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78M06HDTR(XBLW)
₹43.75 for 5 + GST
Specifications
- Output Voltage
- 6V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 700mA
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.455 g
Overview
L78MXX series monolithic 3-terminal positive voltage regulators employ internal current limiting, thermal shutdown and safe-area compensation, making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 700mA output current. They are intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents. The chips are available in TO220-3L, TO252-2L and SOT223-3L package.
Applications
- Electronic point-of-sale
- Appliances and white goods
- TVs and set-top boxes
- Motor drives
- Building automation
Key features
- Output Current up to 700mA
- Output Voltages of 5, 6, 8, 9, 12, 15, 18, 24V
- Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating area (SOA) Protection
