STDatasheet (PDF)

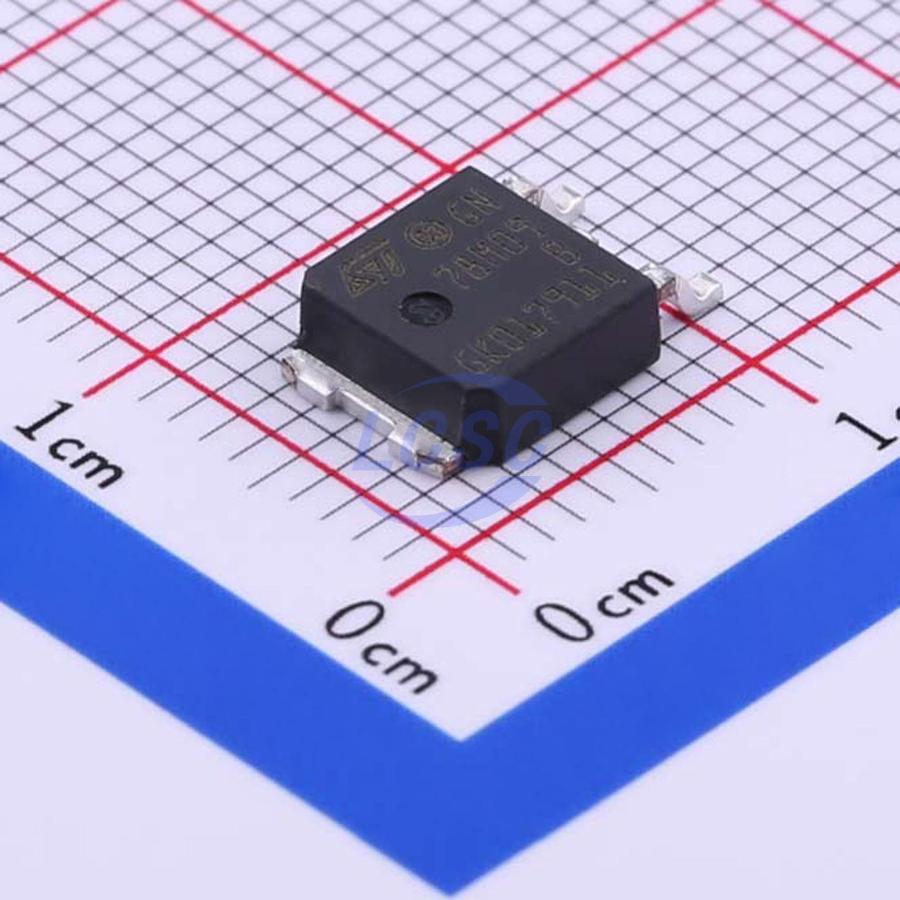

L78M09ABDT-TR
9V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
Precision 500 mA Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78M09ABDT-TR
- Store part #
- C157412
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C157412
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.16 | ₹47.16 |
| 10+ | ₹37.76 | ₹377.60 |
| 30+ | ₹33.61 | ₹1,008.30 |
| 100+ | ₹28.73 | ₹2,873.00 |
| 500+ | ₹25.84 | ₹12,920.00 |
| 1,000+ | ₹24.57 | ₹24,570.00 |
1 × ₹47.16
₹47.16
excl. GST
₹55.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78M09ABDT-TR
₹47.16 for 1 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 350mA
- Operating Voltage
- 21V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.557 g
Overview
The L78MxxA series of three-terminal positive regulators is available in TO-220 and DPAK packages and with several fixed output volt making it useful in a wide range of applications. These regulators can provide local on-card regulation eliminating the distribution pro associated with single point regulation. Each employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sin is provided, they can deliver over 0.5 A output.
Key features
- Output cuneht to U.S A
- Satpat toragoo oro,0 ohorhcirovooud piotootion ±2% choant protootrot
- Output tianstionf SOA protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP78M09K3-1#C5371012TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 2,475 | ₹14.92 · 2,475 in stock | View |
 | TP78M09K3#C5371011TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 230 | ₹8.53 · 230 in stock | View |
 | CJ7809B-TFN-ARG#C20622094JSCJ · TO-252-2L | JSCJ | TO-252-2L | 560 | ₹17.71 · 560 in stock | View |
 | MC78M09CDTG#C897469onsemi · DPAK | onsemi | DPAK | On request | Price on request | Quote |
 | L78M09HDTR(XBLW)#C20612523XBLW · TO-252-2 | XBLW | TO-252-2 | 2,030 | ₹9.11 · 2,030 in stock | View |
