STDatasheet (PDF)

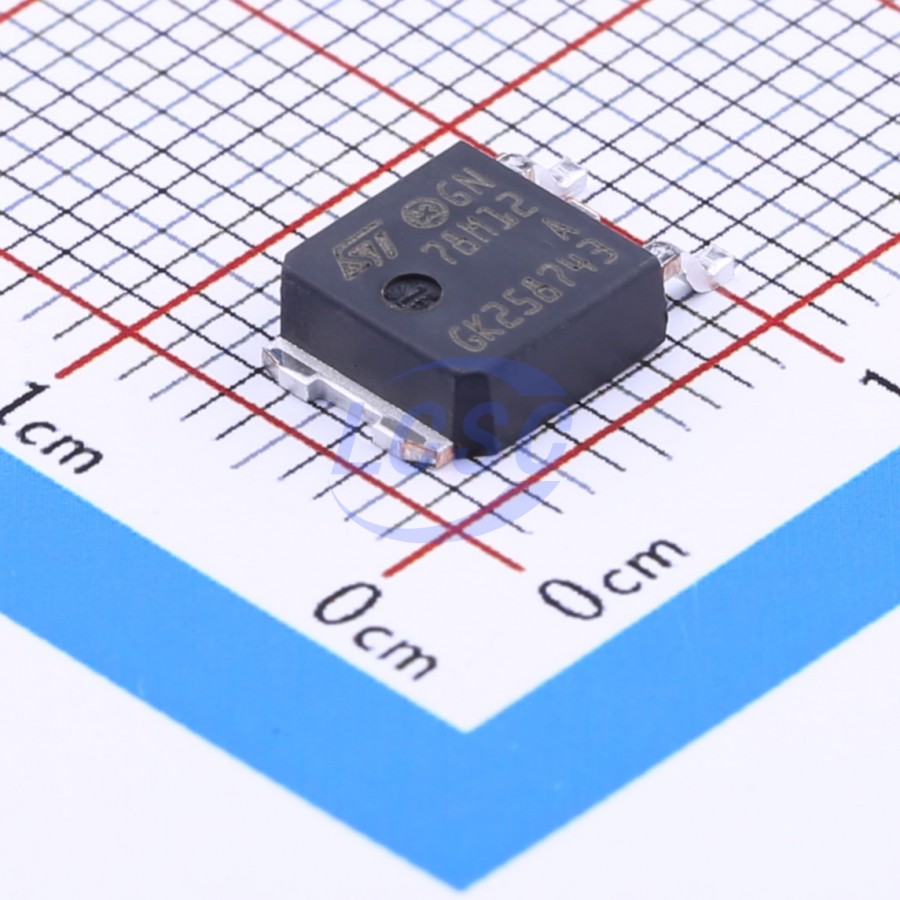

L78M12ACDT-TR
12V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS3 CompliantActive
Precision 500 mA Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78M12ACDT-TR
- Store part #
- C161629
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C161629
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.19 | ₹160.95 |
| 50+ | ₹24.98 | ₹1,249.00 |
| 150+ | ₹21.89 | ₹3,283.50 |
| 500+ | ₹18.04 | ₹9,020.00 |
| 2,500+ | ₹16.32 | ₹40,800.00 |
| 5,000+ | ₹15.30 | ₹76,500.00 |
5 × ₹32.19
₹160.95
excl. GST
₹189.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78M12ACDT-TR
₹160.95 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 350mA
- Operating Voltage
- 35V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.475 g
Overview
The L78MxxA series of three-terminal positive regulators is available in TO-220 and DPAK packages and with several fixed output volt making it useful in a wide range of applications. These regulators can provide local on-card regulation eliminating the distribution pro associated with single point regulation. Each employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sin is provided, they can deliver over 0.5 A output.
Key features
- Output cuneht to U.S A
- Satpat toragoo oro,0 ohorhcirovooud piotootion ±2% choant protootrot
- Output tianstionf SOA protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78M12CDT-TR#C16424ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 46,985 | ₹30.78 · 46,985 in stock | View |
 | LM78M12CDT/TR#C7432052HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 340 | ₹12.78 · 340 in stock | View |
 | L78M12ABDT-TR#C61534ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 130 | ₹39.05 · 130 in stock | View |
 | 78M12#C5137840GOODWORK · TO-252-2(DPAK) | GOODWORK | TO-252-2(DPAK) | 2,370 | ₹14.58 · 2,370 in stock | View |
 | 78D12#C7429765BLUE ROCKET · TO-252 | BLUE ROCKET | TO-252 | 40 | ₹25.07 · 40 in stock | View |
