STDatasheet (PDF)

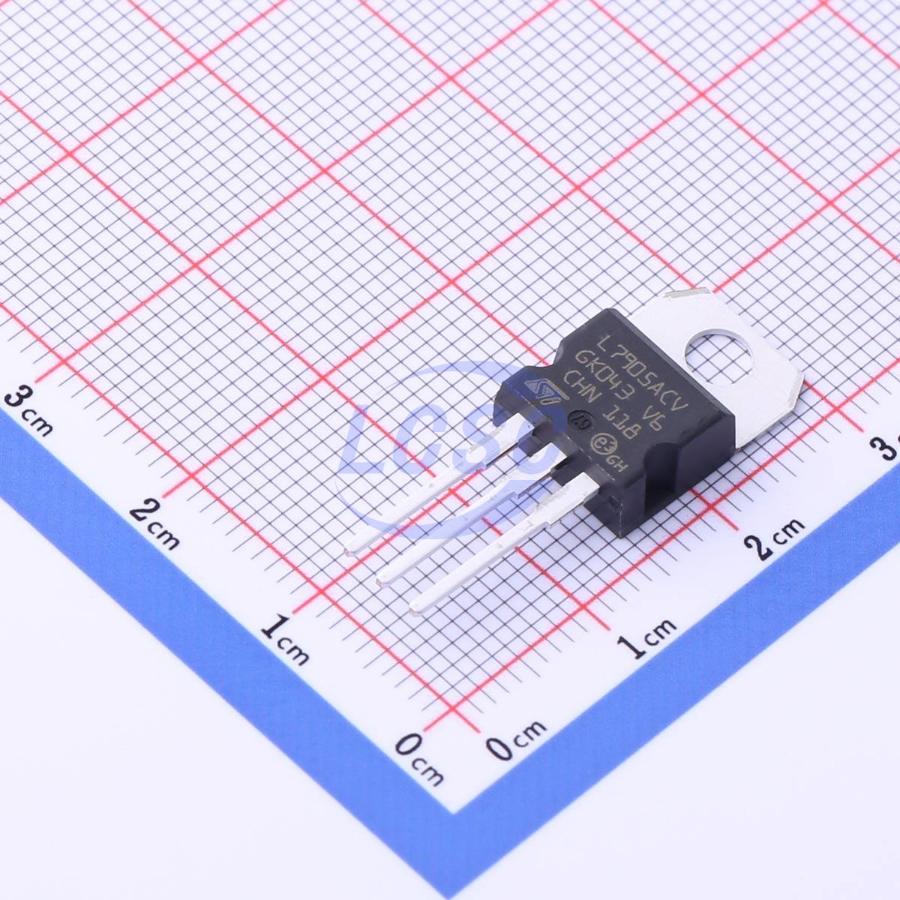

L7905ACV
5V Negative Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L7905ACV
- Store part #
- C2936098
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,670 in stock
#C2936098
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.70 | ₹168.50 |
| 50+ | ₹26.26 | ₹1,313.00 |
| 150+ | ₹23.07 | ₹3,460.50 |
| 500+ | ₹19.09 | ₹9,545.00 |
| 2,500+ | ₹17.32 | ₹43,300.00 |
| 5,000+ | ₹16.25 | ₹81,250.00 |
5 × ₹33.70
₹168.50
excl. GST
₹198.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7905ACV
₹168.50 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Negative
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.45 g
Overview
The L79xxAC series of three-terminal negative regulators is available in TO-220 and D²PAK packages and several fixed output voltages. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78xxA positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Applications
- Fixed output voltage regulator
- Split power supply (±15V - 1A)
- Output voltage boost circuit
- High-current negative voltage regulator (-5V/4A with 5A current limiting)
- On-board local regulation
- Split power supply with L78xxA series
Key features
- Output current to 1.5 A Output voltages of -5; -8; -12; -15; -24 V
- Thermal overload protection Short circuit protection
- Output transition SOA protection
