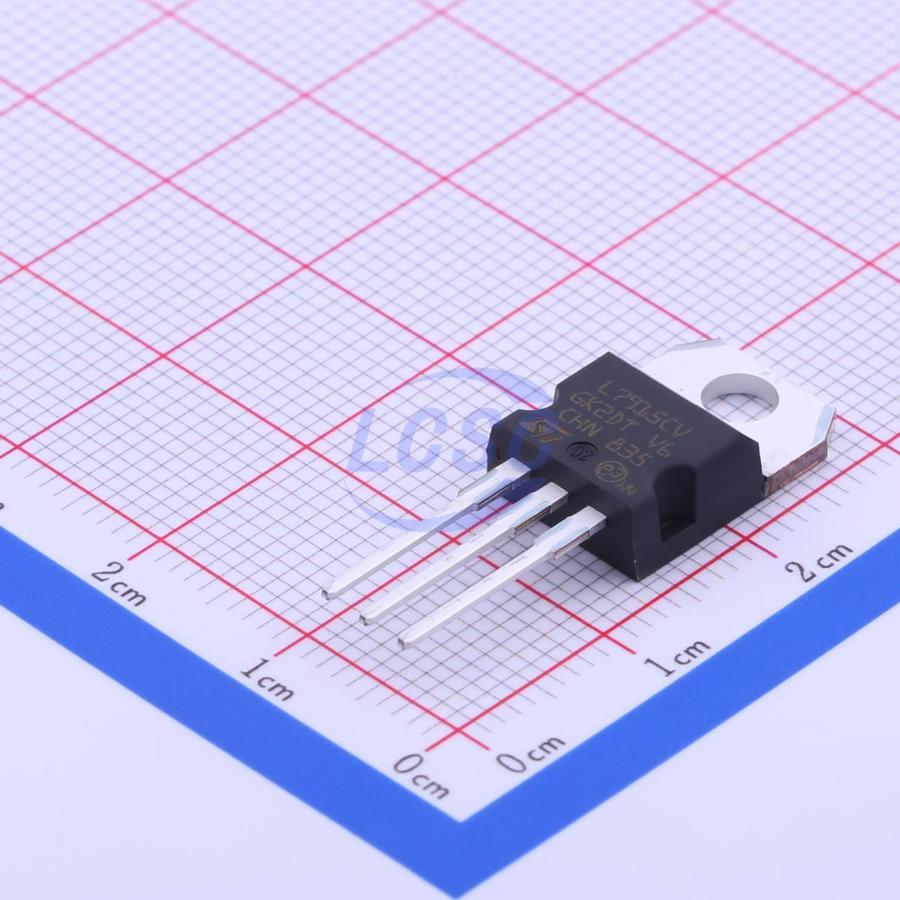

L7915CV-DG
15V Negative Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L7915CV-DG
- Store part #
- C2172
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,243 in stock
#C2172
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.66 | ₹57.66 |
| 10+ | ₹46.12 | ₹461.20 |
| 50+ | ₹41.33 | ₹2,066.50 |
| 100+ | ₹35.24 | ₹3,524.00 |
| 500+ | ₹32.41 | ₹16,205.00 |
| 1,000+ | ₹30.89 | ₹30,890.00 |
1 × ₹57.66
₹57.66
excl. GST
₹68.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7915CV-DG
₹57.66 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+150℃@(Tj)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Negative
- Operating Voltage
- 30V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.965 g
Overview
The L79 series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78 positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output current up to 1.5 A
- Output voltages of - 5; - 8; - 12; - 15 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- Output tolerance 2% (AC version) or 4% (C version) at 25°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7915CV#C154950ST · TO-220 | ST | TO-220 | 9,175 | ₹50.15 · 9,175 in stock | View |
 | L7915ACV#C163543ST · TO-220 | ST | TO-220 | 1,447 | ₹79.54 · 1,447 in stock | View |
 | L7915#C22378640OSEN · TO-220ST | OSEN | TO-220ST | 450 | ₹32.80 · 450 in stock | View |
 | HL7915CV#C41381864HXY MOSFET · TO-220S | HXY MOSFET | TO-220S | 10 | ₹36.48 · 10 in stock | View |
 | 7915#C20606610YFW · TO-220AB | YFW | TO-220AB | 100 | ₹60.94 · 100 in stock | View |
