STDatasheet (PDF)

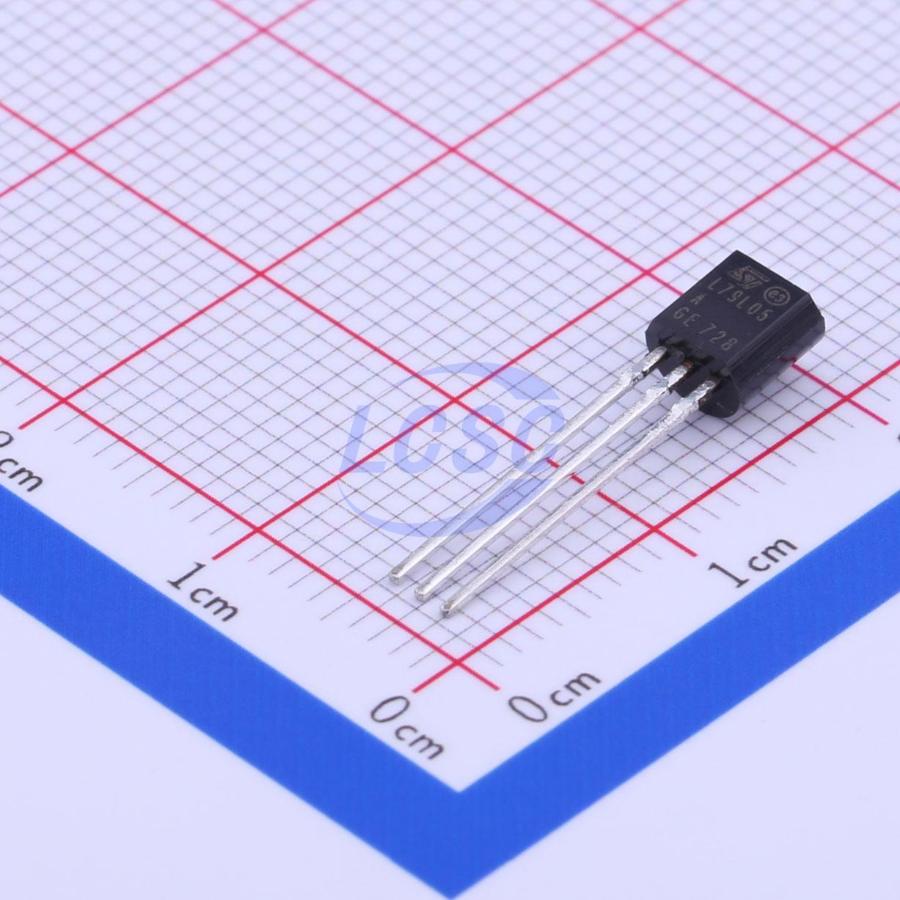

L79L05ACZ
5V Negative Fixed TO-92-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-3ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L79L05ACZ
- Store part #
- C283282
- Package / case
- TO-92-3
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,160 in stock
#C283282
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.98 | ₹224.90 |
| 50+ | ₹35.47 | ₹1,773.50 |
| 150+ | ₹31.39 | ₹4,708.50 |
| 500+ | ₹26.30 | ₹13,150.00 |
| 2,500+ | ₹24.04 | ₹60,100.00 |
| 5,000+ | ₹22.68 | ₹1,13,400.00 |
5 × ₹44.98
₹224.90
excl. GST
₹265.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per box
L79L05ACZ
₹224.90 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Negative
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 2,500 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.273 g
Overview
The L79L series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L79L series used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of -5; -8; -12; -15 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in ±5% (AC) or ±10% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L79L05ACZ-TR#C3749639ST · TO-92-3 | ST | TO-92-3 | 3 | ₹69.55 · 3 in stock | View |
 | MC79L05ACPRAG#C903153onsemi · TO-92 | onsemi | TO-92 | 7 | ₹84.04 · 7 in stock | View |
 | CJ79L05#C8617JSCJ · TO-92 | JSCJ | TO-92 | 825 | ₹13.61 · 825 in stock | View |
 | LM79L05#C126074HTC · TO-92-3 | HTC | TO-92-3 | 2,070 | ₹14.33 · 2,070 in stock | View |
| CJ79L05-TA#C2910387JSCJ · TO-92-3 | JSCJ | TO-92-3 | On request | Price on request | Quote | |
