STDatasheet (PDF)

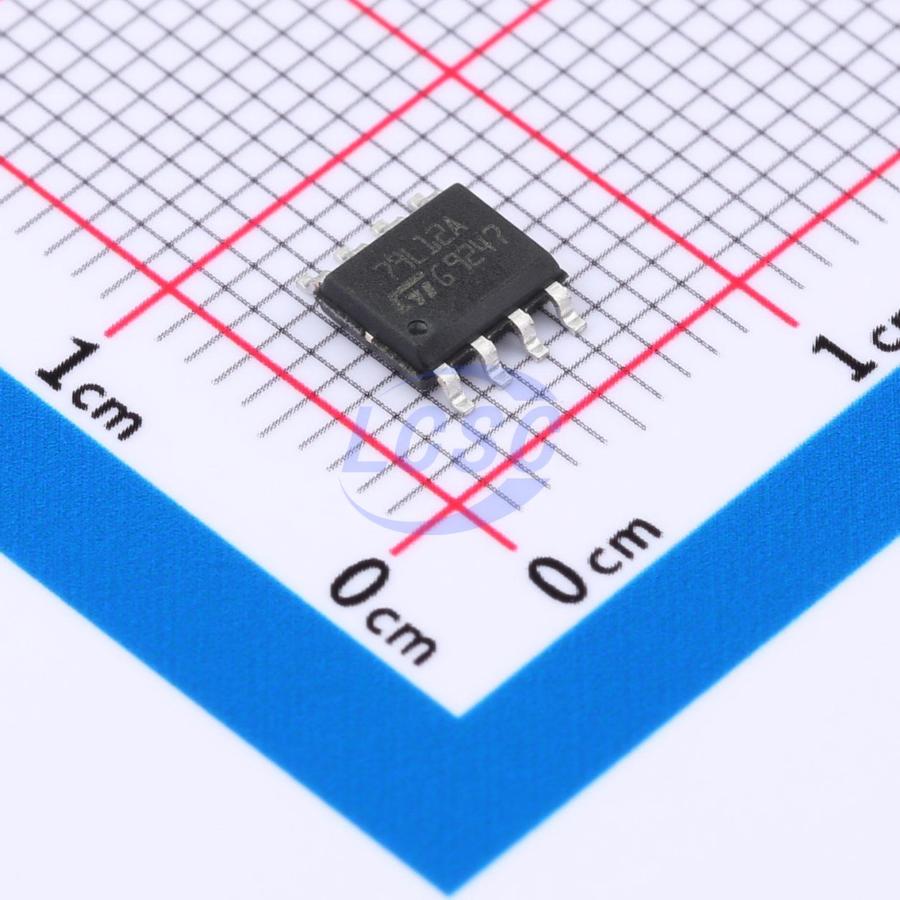

L79L12ACD13TR
12V Negative Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L79L12ACD13TR
- Store part #
- C2970151
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,865 in stock
#C2970151
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.25 | ₹171.25 |
| 50+ | ₹26.86 | ₹1,343.00 |
| 150+ | ₹23.68 | ₹3,552.00 |
| 500+ | ₹19.73 | ₹9,865.00 |
| 2,500+ | ₹17.95 | ₹44,875.00 |
| 5,000+ | ₹16.89 | ₹84,450.00 |
5 × ₹34.25
₹171.25
excl. GST
₹202.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L79L12ACD13TR
₹171.25 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Negative
- Output Current
- 100mA
- Operating Voltage
- 27V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.108 g
Overview
The L79L series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L79L series used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of -5; -8; -12; -15 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Output tolerance + 4%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC79L12ACDR#C2878386TI · SOIC-8 | TI | SOIC-8 | 250 | ₹52.21 · 250 in stock | View |
 | MC79L12ACDR2G#C233402onsemi · SOIC-8 | onsemi | SOIC-8 | 16,115 | ₹24.62 · 16,115 in stock | View |
 | MC79L12ABDR2G#C233233onsemi · SOIC-8 | onsemi | SOIC-8 | 7,405 | ₹29.49 · 7,405 in stock | View |
| MC79L12ACD#C2878384TI · SOIC-8 | TI | SOIC-8 | On request | Price on request | Quote | |
 | MC79L12ACDG#C233234onsemi · SOIC-8 | onsemi | SOIC-8 | On request | Price on request | Quote |
