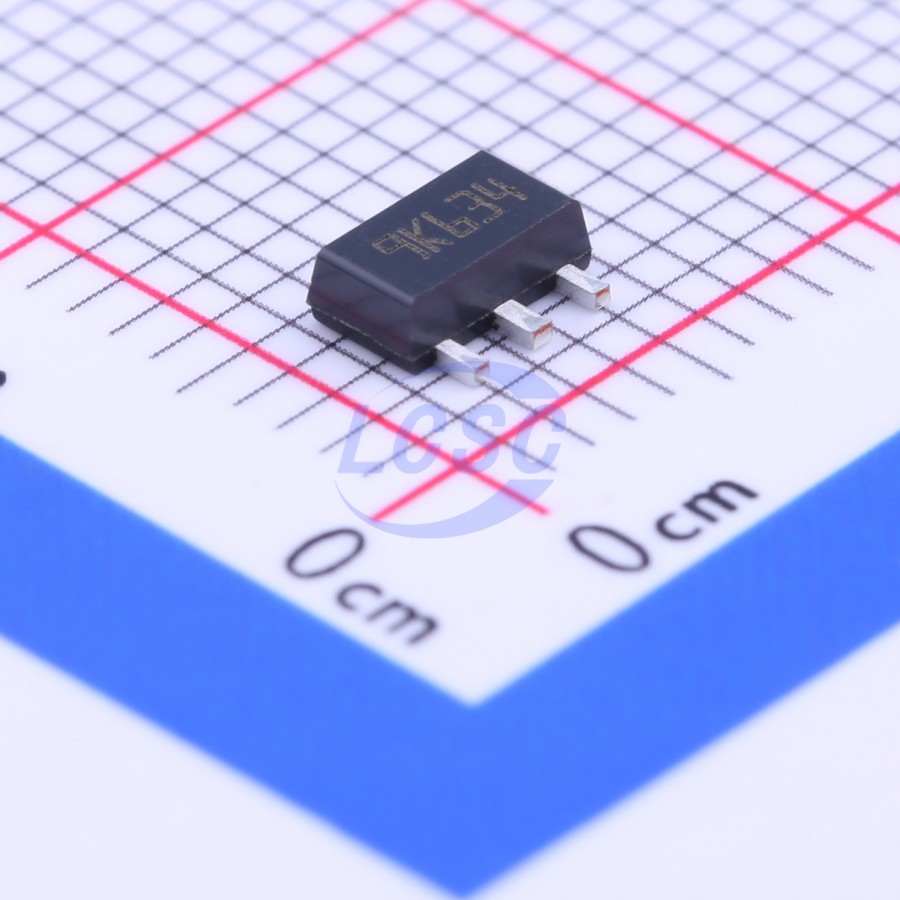

L79L12ACUTR
12V Negative Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L79L12ACUTR
- Store part #
- C157399
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,335 in stock
#C157399
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.05 | ₹175.25 |
| 50+ | ₹27.53 | ₹1,376.50 |
| 150+ | ₹24.30 | ₹3,645.00 |
| 500+ | ₹20.28 | ₹10,140.00 |
| 2,500+ | ₹18.50 | ₹46,250.00 |
| 5,000+ | ₹17.42 | ₹87,100.00 |
5 × ₹35.05
₹175.25
excl. GST
₹206.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L79L12ACUTR
₹175.25 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Negative
- Operating Voltage
- 35V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.253 g
Overview
The L79L series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L79L series used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of -5; -8; -12; -15 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in ±5% (AC) or ±10% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 79L12#C5246139TWGMC · SOT-89 | TWGMC | SOT-89 | 3,980 | ₹8.90 · 3,980 in stock | View |
 | 79L12#C5344584Shikues · SOT-89P | Shikues | SOT-89P | 1,910 | ₹9.78 · 1,910 in stock | View |
 | CJ79L12#C8626JSCJ · SOT-89-3L | JSCJ | SOT-89-3L | 6,120 | ₹17.15 · 6,120 in stock | View |
 | 79L12#C2880154CBI · SOT-89-3 | CBI | SOT-89-3 | 960 | ₹9.86 · 960 in stock | View |
 | HR79L12V#C54560858R+O · SOT-89 | R+O | SOT-89 | 5,630 | ₹12.33 · 5,630 in stock | View |
