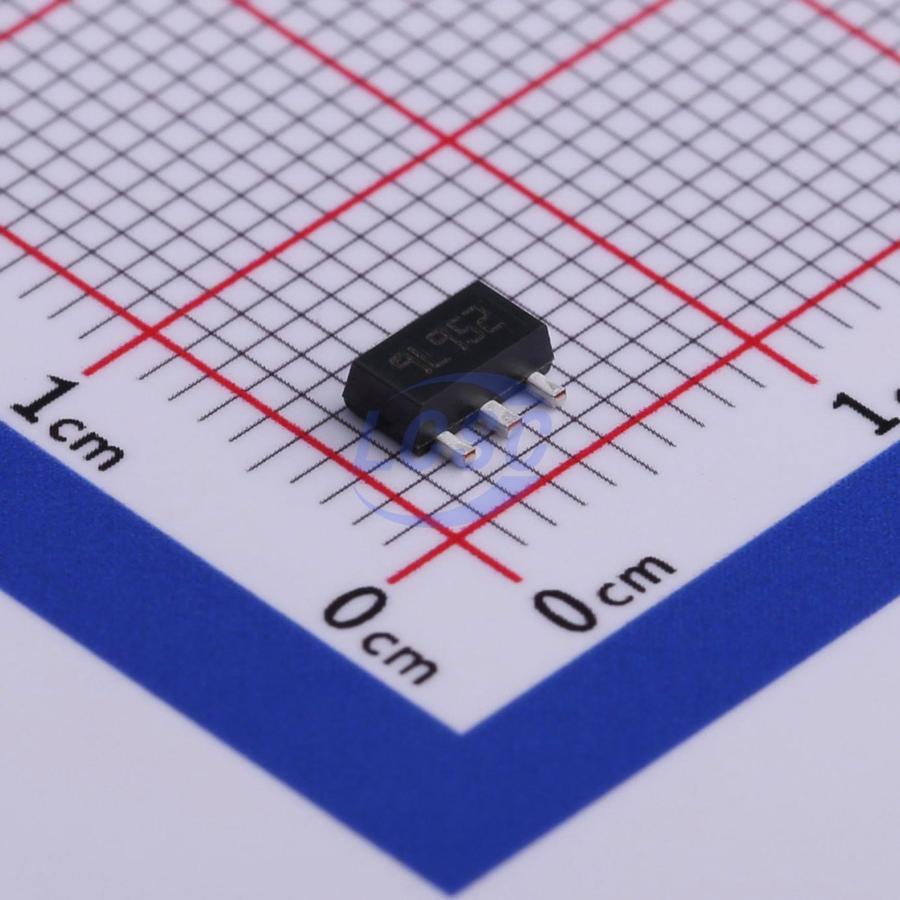

L79L15ACUTR
15V Negative Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L79L15ACUTR
- Store part #
- C495224
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,282 in stock
#C495224
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.43 | ₹57.43 |
| 10+ | ₹44.37 | ₹443.70 |
| 30+ | ₹38.72 | ₹1,161.60 |
| 100+ | ₹31.77 | ₹3,177.00 |
| 500+ | ₹28.72 | ₹14,360.00 |
| 1,000+ | ₹26.76 | ₹26,760.00 |
1 × ₹57.43
₹57.43
excl. GST
₹67.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L79L15ACUTR
₹57.43 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Negative
- Output Current
- 100mA
- Operating Voltage
- 35V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The L79L series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L79L series used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of -5; -8; -12; -15 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Output tolerance + 4%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ79L15#C24226JSCJ · SOT-89-3 | JSCJ | SOT-89-3 | 3,730 | ₹17.40 · 3,730 in stock | View |
 | 79L15U#C2880155CBI · SOT-89-3 | CBI | SOT-89-3 | 20 | ₹11.59 · 20 in stock | View |
 | 79L15#C5309541Shikues · SOT-89 | Shikues | SOT-89 | 10 | ₹9.82 · 10 in stock | View |
 | LM79L15F#C596356HTC · SOT-89 | HTC | SOT-89 | 250 | ₹17.07 · 250 in stock | View |
 | NJM79L15SU3-TE1#C3039923JRC · SOT-89-3 | JRC | SOT-89-3 | 2 | ₹85.41 · 2 in stock | View |
