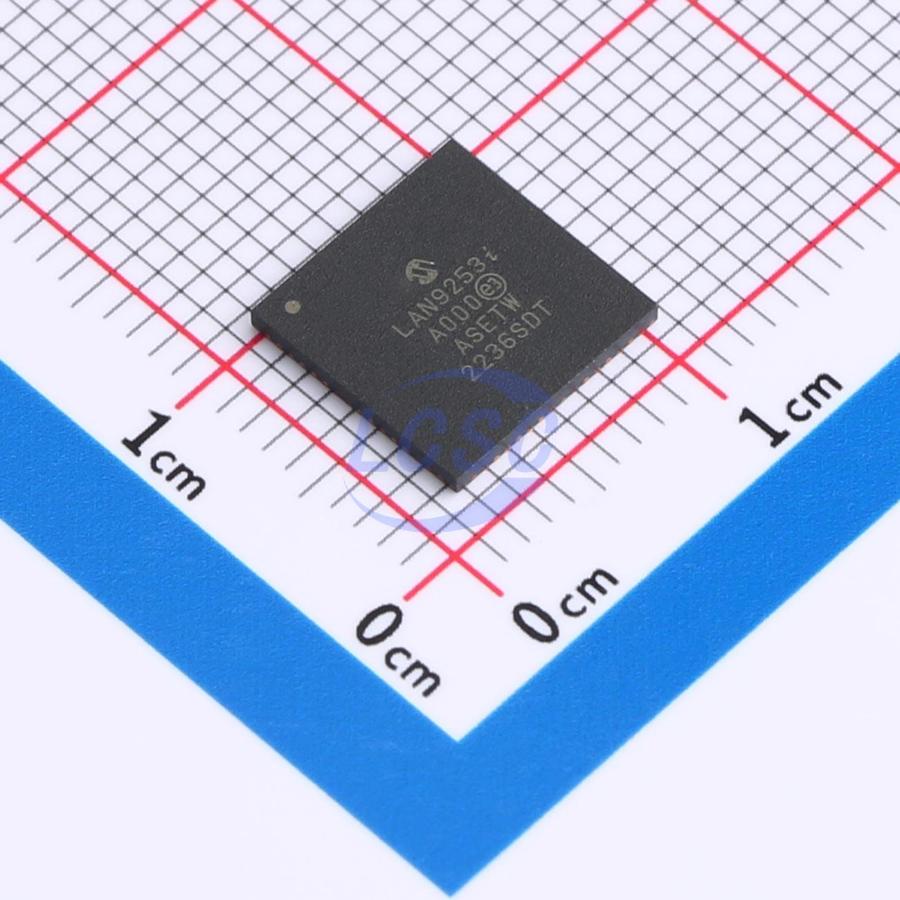

LAN9253-I/R4X

The LAN9253 is a 2/3 -port EtherCAT SubDevice controller with dual integrated Ethernet PHYs, each containing a full-duplex 100BASE-TX transceiver that supports 100Mbps (100BASE-TX) operation. The LAN9253 supports HP AutoMDIX, allowing the use of direct connect or cross-over LAN cables. EtherCAT P and Signal Quality Index PHY diagnostics are supported. The LAN9253 includes an EtherCAT SubDevice controller with 8K bytes of Dual Port memory (DPRAM) and 8 Fieldbus Memory Management Units (FMMUs). Each FMMU performs the task of mapping logical addresses to physical addresses. The EtherCAT SubDevice controller also includes 8 SyncManagers to allow the exchange of data between the EtherCAT MainDevice and the local application. Each SyncManager's direction and mode of operation is configured by the EtherCAT MainDevice. Two modes of operation are available: buffered mode or mailbox mode.

Applications

• Motor Motion Control
• Process/Factory Automation
• Communication Modules, Interface Cards
• Sensors
• Hydraulic & Pneumatic Valve Systems
• Operator Interfaces

Key features

• 2/3-port EtherCAT SubDevice controller with 8 Fieldbus Memory Management Units (FMMUs) and 8 SyncManagers
• Interfaces to most 8/16-bit embedded controllers and 32-bit embedded controllers with an 8/16-bit bus
• Integrated Ethernet PHYs with HP Auto-MDIX
• Wake on LAN (WoL) support
• Low power mode allows systems to enter sleep mode until addressed by the MainDevice
• Cable diagnostic support
• 1.8V to 3.3V variable voltage I/O
• Integrated 1.2V regulator for single 3.3V operation
• Integrated high-performance 100Mbps Ethernet transceivers - Compliant with IEEE 802.3/802.3u (Fast Ethernet) - Signal Quality Index diagnostics - Loop-back modes - Automatic polarity detection and correction - HP Auto-MDIX - Compatible with EtherCAT P
• EtherCAT SubDevice controller - Supports 8 FMMUs - Supports 8 SyncManagers - Distributed clock support allows synchronization with other EtherCAT devices - 8K bytes of DPRAM
• 8/16-Bit Host Bus Interface - Indexed register or multiplexed bus - Allows local host to enter sleep mode until addressed by EtherCAT MainDevice - SPI / SQI (Quad SPI) support
• Digital I/O Mode for optimized system cost - 16 available Digital I/Os
• 3rd port for flexible network configurations
• Comprehensive power management features - 3 power-down levels - Wake on link status change (energy detect) - Magic packet wakeup, Wake on LAN (WoL), wake on broadcast, wake on perfect DA - Wakeup indicator event signal
• Power and I/O - Integrated power-on reset circuit - Latch-up performance exceeds 150mA per EIA/JESD78, Class II - JEDEC Class 3A ESD performance - Single 3.3V power supply (integrated 1.2V regulator)
• Additional Features - EEPROM emulation - Transformer-less link support - Multifunction GPIOs - Ability to use low cost 25MHz crystal for reduced BOM - 25MHz clock output for reference clock daisy chaining
• Packaging - Pb-free RoHS compliant 64-pin QFN
• Available in commercial, industrial, and extended industrial temp. ranges
