MICROCHIP

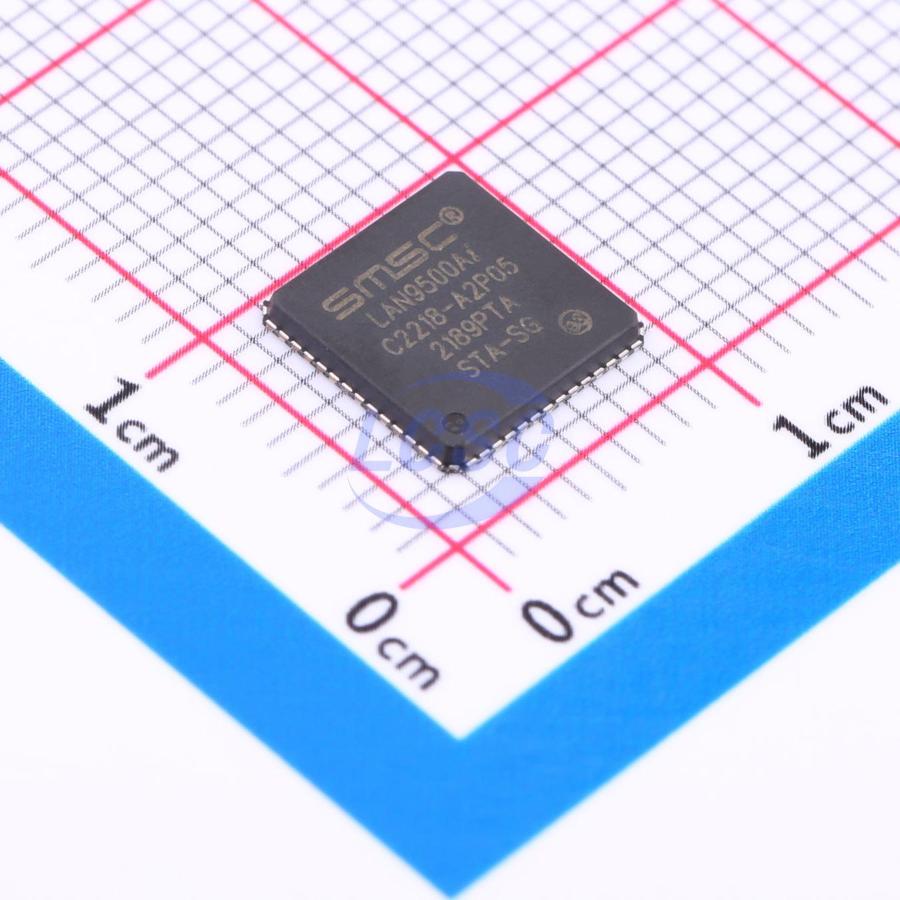

LAN9500AI-ABZJ-TR

QFN-56-EP(8x8) Controllers RoHS

QFN-56-EP(8x8)ROHS3 CompliantActive

USB 2.0 to 10/100 Ethernet Controller

Manufacturer: MICROCHIP
Manufacturer part #: LAN9500AI-ABZJ-TR
Store part #: C625108
Package / case: QFN-56-EP(8x8)
Category: Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,601 in stock

#C625108

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹732.60	₹732.60
10+	₹603.99	₹6,039.90
30+	₹527.73	₹15,831.90
100+	₹450.38	₹45,038.00
500+	₹414.75	₹2,07,375.00
1,000+	₹398.67	₹3,98,670.00

Quantity (min 1)

1 × ₹732.60

₹732.60

excl. GST

₹864.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LAN9500AI-ABZJ-TR

₹732.60 for 1 + GST

Specifications

Features: Low-power mode;Wake-up function;Power-on reset;Programmable LED indication;Support multicast filtering
MAC Interface: USB
Voltage - Supply: 3.3V
Integrated PHY: Yes
Communication Interface: JTAG
Operating Temperature: 0℃~+70℃
Ethernet Speed Standards: 10BASE-T;100BASE-TX
Memory Space: 30KB

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.23 g

Overview

Applications

Embedded Systems
Set-Top Boxes
PVRs
CE Devices
Networked Printers
USB Port Replicators
Standalone USB to Ethernet Dongles
Test Instrumentation
Industrial

Key features

USB Device Controller - Fully compliant with Hi-Speed Universal Serial Bus Specification Revision 2.0 - Supports HS (480 Mbps) and FS (12 Mbps) modes - Four endpoints supported Supports vendor specific commands Integrated USB 2.0 PHY - Remote wakeup supported
High-Performance 10/100 Ethernet Controller - Fully compliant with IEEE802.3/802.3u Integrated Ethernet MAC and PHY 10BASE-T and 100BASE-TX support - Full- and half-duplex support Full- and half-duplex flow control - Preamble generation and removal - Automatic 32-bit CRC generation and checking - Automatic payload padding and pad removal - Loop-back modes - TCP/UDP/IP/ICMP checksum offload suppor
Flexible address filtering modes –One 48-bit perfect address –64 hash-filtered multicast addresses –Pass all multicast –Promiscuous mode –Inverse filtering –Pass all incoming with status report
Wakeup packet support
Integrated Ethernet PHY –Auto-negotiation –Automatic polarity detection and correction –HP Auto-MDIX support –Link status change wake-up detection
Support for 3 status LEDs
External MII and Turbo MII support
Various low power modes
NetDetach feature increases battery life
Supports PCI-like PME wake
11 GPIOs
Supports bus-powered and self-powered operation
Integrated power-on reset circuit
Single external 3.3v I/O supply –Internal core regulator
EEPROM Controller
Supports custom operation without EEPROM
IEEE 1149.1 (JTAG) Boundary Scan
Requires single 25 MHz crystal
Windows XP/Vista Driver
Linux Driver
Win CE Driver
MAC OS Driver
EEPROM Utility
56-pin QFN (8×8 mm) RoHS Compliant
Commercial Temperature Range (0℃ to +70℃)
Industrial Temperature Range (-40℃ to +85℃)
