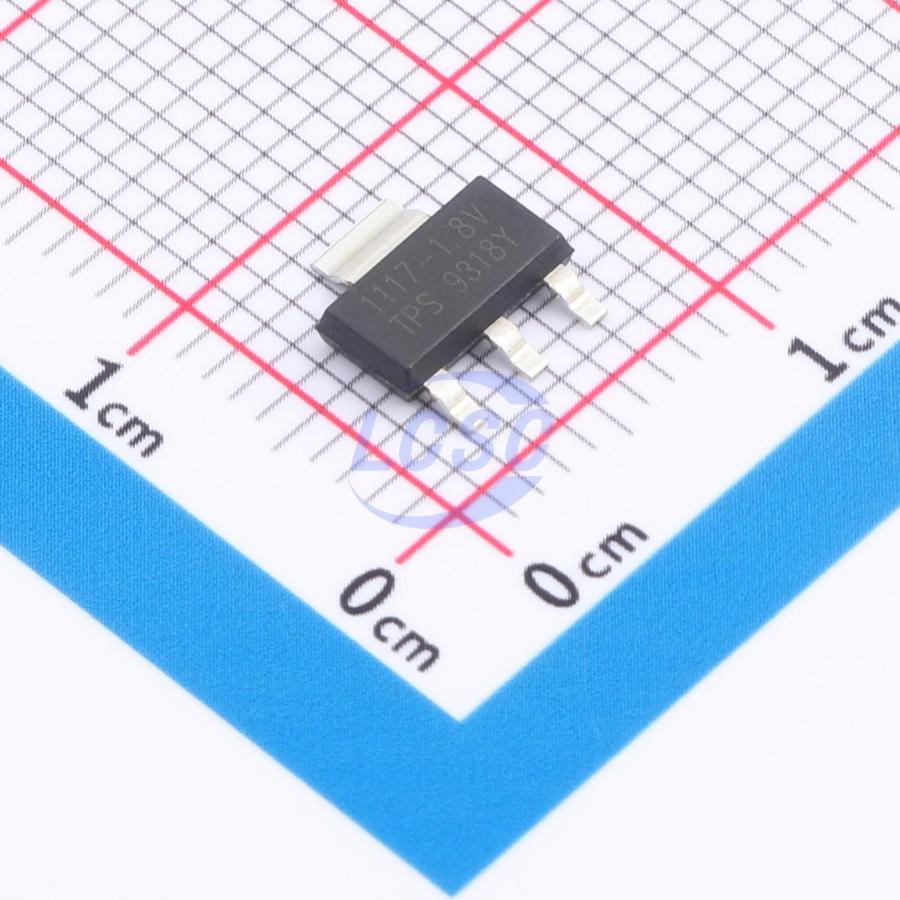

LD1117-1.8
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223RoHSActive
1A LOW DROPOUT LINEAR REGULATOR
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LD1117-1.8
- Store part #
- C18212704
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,440 in stock
#C18212704
Stock & price checked 13 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.82 | ₹58.20 |
| 100+ | ₹4.56 | ₹456.00 |
| 300+ | ₹3.94 | ₹1,182.00 |
| 1,000+ | ₹3.47 | ₹3,470.00 |
| 4,000+ | ₹3.10 | ₹12,400.00 |
| 8,000+ | ₹2.91 | ₹23,280.00 |
10 × ₹5.82
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LD1117-1.8
₹58.20 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -50℃~+140℃
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
Applications
- High Efficiency Linear Regulators
- Post Regulator for Switching DC/DC Converter
- Power Management for M/B and Graphic Card
- 2.85V Model for SCSI-2 Active Termination
- Battery Charger
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL Modem
Key features
- Output Current of 1A Maximum
- Three-Terminal Adjustable or Fixed Outputs
- Maximum Input Voltage: 18V
- Fast Transient Response
- Current Limit, Safe Operating and Thermal Shutdown Protection
- Line Regulation: 0.2%
- Load Regulation: 0.4%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP1117-1.8Y3#C18212703TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 3,950 | ₹7.47 · 3,950 in stock | View |
 | AMS1117-1.8#C18212705TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 820 | ₹6.13 · 820 in stock | View |
 | AMS1117-1.8V#C46473009TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 1,910 | ₹5.70 · 1,910 in stock | View |
 | LM1117MPX-1.8-TP#C52146071TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 2,860 | ₹6.42 · 2,860 in stock | View |
 | TPSPX1117M3-L-1-8#C52146082TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 3,960 | ₹6.38 · 3,960 in stock | View |
