STDatasheet (PDF)

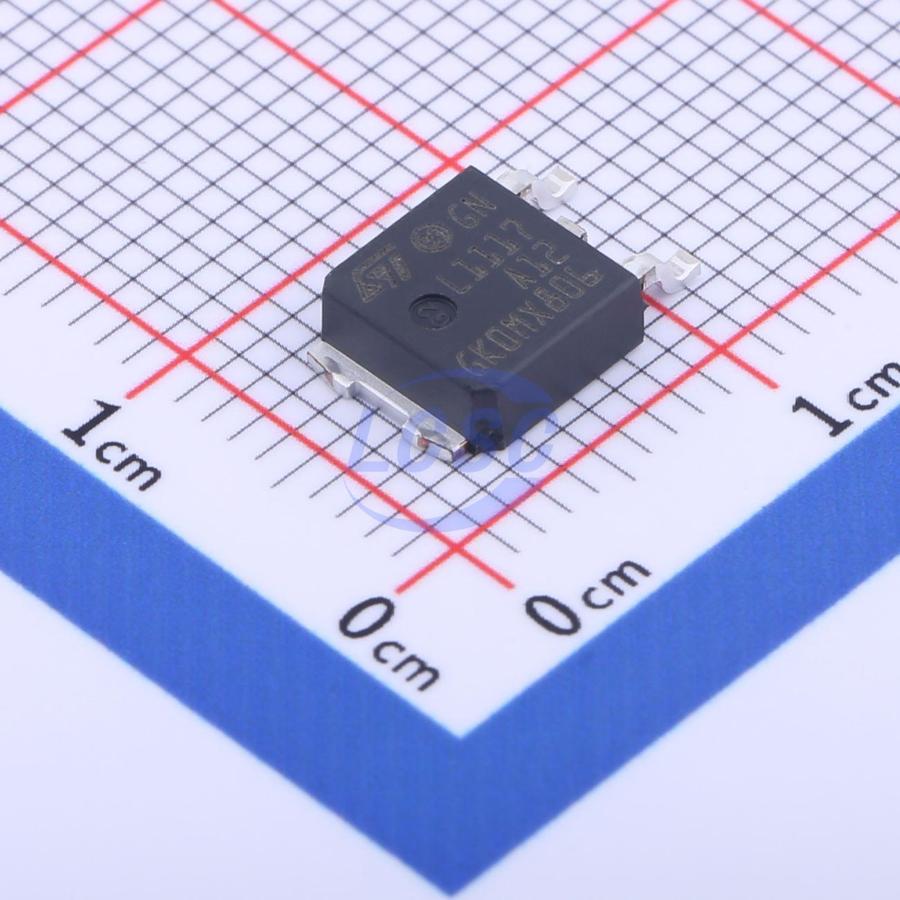

LD1117ADT12TR
1.2V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
Low Dropout Fixed and Adjustable Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117ADT12TR
- Store part #
- C500666
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C500666
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.65 | ₹138.25 |
| 50+ | ₹23.99 | ₹1,199.50 |
| 150+ | ₹22.41 | ₹3,361.50 |
| 500+ | ₹20.45 | ₹10,225.00 |
| 2,500+ | ₹19.58 | ₹48,950.00 |
| 5,000+ | ₹19.05 | ₹95,250.00 |
5 × ₹27.65
₹138.25
excl. GST
₹163.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117ADT12TR
₹138.25 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.49 g
Overview
The LD1117A is a low drop voltage regulator able to provide up to 1 A of output current, available also in adjustable versions (V_REF = 1.25 V). In fixed versions, the following output voltages are offered: 1.2 V, 1.8 V, and 3.3 V. The device is supplied in: SOT - 223, DPAK and TO - 220. Surface mounted packages optimize the thermal characteristics while offering a relevant space saving advantage. High efficiency is assured by an NPN pass transistor. Only a very common 10 μF minimum capacitor is needed for stability. Chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 2% at 25°C.
Key features
- Low dropout voltage: – 1.15 V typ. (ΔI_OUT = 1 A, 25°C)
- Very low quiescent current: – 5 mA typ. (25°C)
- Output current up to 1 A
- Fixed output voltage of: – 1.2 V, 1.8 V, 3.3 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Only 10 μF for stability
- Available in ± 2% (at 25°C) and 4% in full temperature range
- High supply voltage rejection: – 80 dB typ. (at 25°C)
- Temperature range: 0°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117RS-1.2#C262794HTC · TO-252-2(DPAK) | HTC | TO-252-2(DPAK) | 420 | ₹38.70 · 420 in stock | View |
 | AZ1117CD-1.2TRG1#C177002DIODES · TO-252-2 | DIODES | TO-252-2 | 10 | ₹18.68 · 10 in stock | View |
| ZLDO1117QK12TC#C6043945DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 25 | ₹135.61 · 25 in stock | View | |
 | BL1117-12CY#C213396BL · TO-252-2(DPAK) | BL | TO-252-2(DPAK) | 1,545 | ₹16.47 · 1,545 in stock | View |
 | MC33269DT-1.2/TR#C49270253HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 2,500 | ₹18.87 · 2,500 in stock | View |
