UTCDatasheet (PDF)

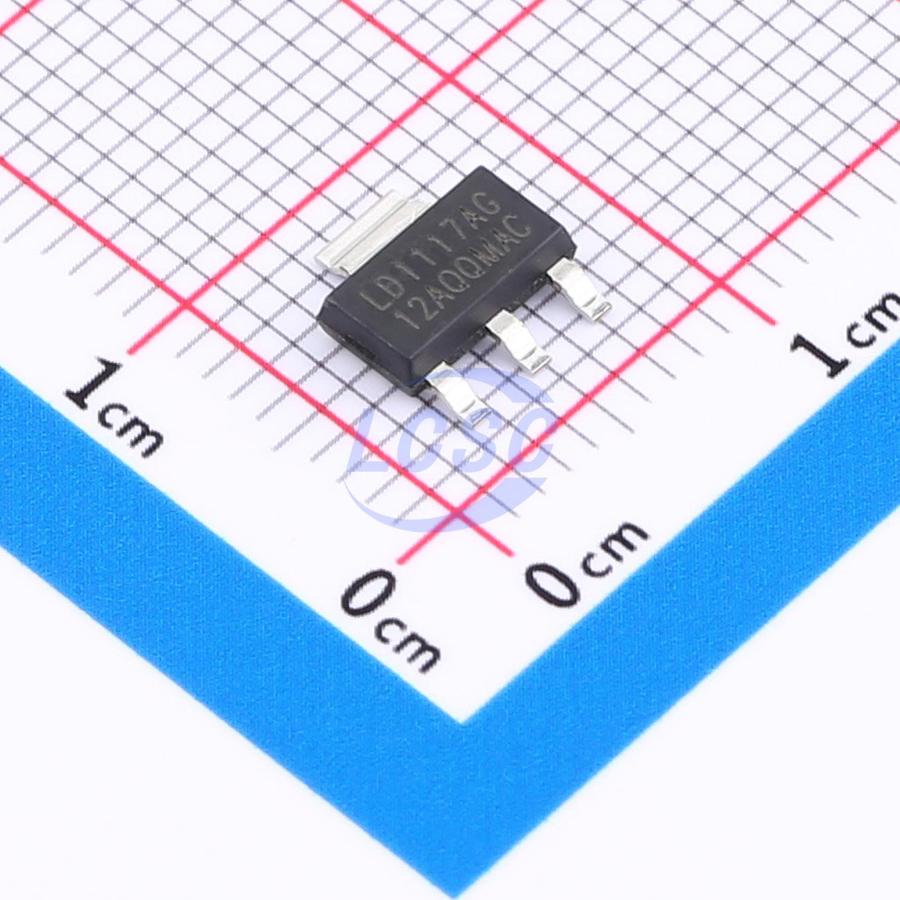

LD1117AG-12-AA3-A-R
1.2V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS CompliantActive
Low-dropout fixed and adjustable positive voltage regulators
- Manufacturer
- UTC
- Manufacturer part #
- LD1117AG-12-AA3-A-R
- Store part #
- C75486
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,130 in stock
#C75486
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.17 | ₹101.70 |
| 100+ | ₹8.16 | ₹816.00 |
| 300+ | ₹7.16 | ₹2,148.00 |
| 2,500+ | ₹6.09 | ₹15,225.00 |
| 5,000+ | ₹5.49 | ₹27,450.00 |
| 10,000+ | ₹5.19 | ₹51,900.00 |
10 × ₹10.17
₹101.70
excl. GST
₹120.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117AG-12-AA3-A-R
₹101.70 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.307 g
Overview
The UTC LD1117/A is a low dropout, 3-terminal positive voltage regulator designed to provide output current up to 800mA/1A. There are adjustable version (V_REF = 1.25V) and various fixed versions.
Key features
- Low dropout voltage
- Suitable for SCSI-2 active termination if VOUT set to 2.85V
- Output current up to 0.8A for 1117 and 1.0A for 1117A
- Built-in current limit and over temperature protection
- Low current consumption
- Support MLCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC33269MP-1.2/TR#C46614064HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,500 | ₹17.08 · 2,500 in stock | View |
 | AZ1117H-1.2TRE1#C110105DIODES · SOT-223-3 | DIODES | SOT-223-3 | 4,035 | ₹46.79 · 4,035 in stock | View |
 | ZLDO1117QG12TA#C672282DIODES · SOT-223 | DIODES | SOT-223 | 26 | ₹99.50 · 26 in stock | View |
 | JTD1117B-1.2V#C42443439JTD · SOT-223 | JTD | SOT-223 | 2,980 | ₹6.26 · 2,980 in stock | View |
 | AZ1117CH-1.2TRG1#C507895DIODES · SOT-223 | DIODES | SOT-223 | 2,580 | ₹18.40 · 2,580 in stock | View |
