UTCDatasheet (PDF)

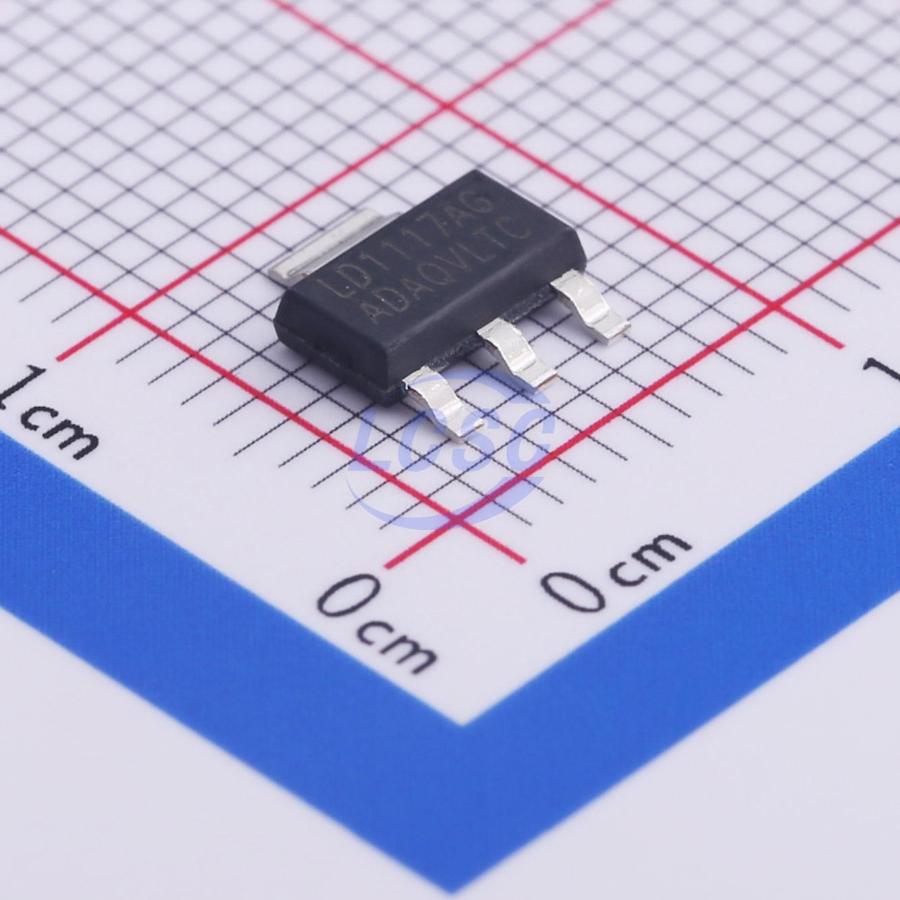

LD1117AG-ADJ-A
1.25V~13V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
Low-dropout fixed and adjustable positive voltage regulators
- Manufacturer
- UTC
- Manufacturer part #
- LD1117AG-ADJ-A
- Store part #
- C474399
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,850 in stock
#C474399
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.63 | ₹96.30 |
| 100+ | ₹7.67 | ₹767.00 |
| 300+ | ₹6.69 | ₹2,007.00 |
| 2,500+ | ₹5.95 | ₹14,875.00 |
| 5,000+ | ₹5.36 | ₹26,800.00 |
| 10,000+ | ₹5.07 | ₹50,700.00 |
10 × ₹9.63
₹96.30
excl. GST
₹113.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117AG-ADJ-A
₹96.30 for 10 + GST
Specifications
- Output Voltage
- 1.25V~13V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.262 g
Overview
The UTC LD1117/A is a low dropout, 3-terminal positive voltage regulator designed to provide output current up to 800mA/1A. There are adjustable version (V_REF = 1.25V) and various fixed versions.
Key features
- Low dropout voltage
- Suitable for SCSI-2 active termination if VOUT set to 2.85V
- Output current up to 0.8A for 1117 and 1.0A for 1117A
- Built-in current limit and over temperature protection
- Low current consumption
- Support MLCC
