STDatasheet (PDF)

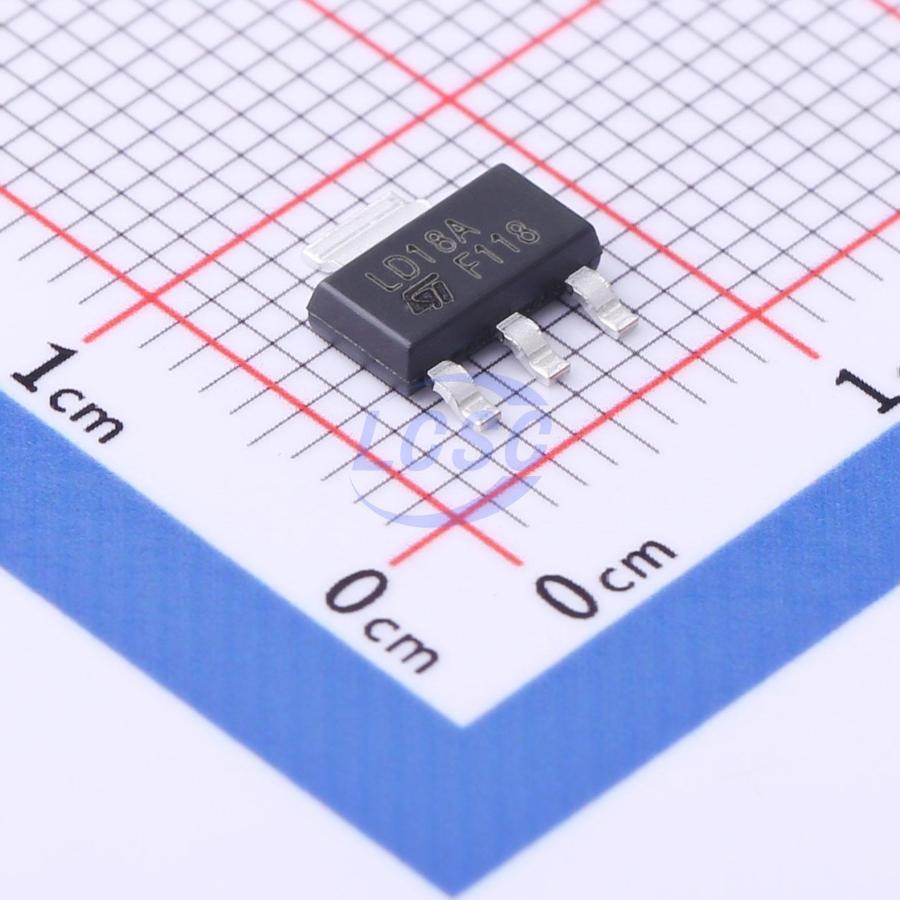

LD1117AS18TR
1.8V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS3 CompliantActive
Low Dropout Fixed and Adjustable Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117AS18TR
- Store part #
- C2845037
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,515 in stock
#C2845037
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.39 | ₹136.95 |
| 50+ | ₹22.65 | ₹1,132.50 |
| 150+ | ₹20.61 | ₹3,091.50 |
| 500+ | ₹18.09 | ₹9,045.00 |
| 2,500+ | ₹16.96 | ₹42,400.00 |
| 5,000+ | ₹16.27 | ₹81,350.00 |
5 × ₹27.39
₹136.95
excl. GST
₹161.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117AS18TR
₹136.95 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.251 g
Overview
The LD1117A is a low drop voltage regulator able to provide up to 1 A of output current, available also in adjustable versions (VREF = 1.25 V). In fixed versions, the following output voltages are offered: 1.2 V, 1.8 V, and 3.3 V. The device is supplied in: SOT - 223, DPAK and TO - 220. Surface mounted packages optimize the thermal characteristics while offering a relevant space saving advantage. High efficiency is assured by an NPN pass transistor. Only a very common 10 μF minimum capacitor is needed for stability. Chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 2% at 25℃.
Key features
- Low dropout voltage: – 1.15 V typ. (Δln(0UT)=1 A, 25°C)
- Very low quiescent current: – 5 mA typ. (25°C)
- Output current up to 1 A
- Fixed output voltage of: – 1.2 V, 1.8 V, 3.3 V
- Adjustable version availability (VREF = 1.25 V)
- Internal current and thermal limit
- Only 10 μF for stability
- Available in ± 2% (at 25°C) and 4% in full temperature range
- High supply voltage rejection: – 80 dB typ. (at 25°C)
- Temperature range: 0°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117S-1.8#C126026HTC · SOT-223-3 | HTC | SOT-223-3 | 1,115 | ₹28.03 · 1,115 in stock | View |
 | LD1117AG-18-AA3-A-R#C71122UTC · SOT-223-4 | UTC | SOT-223-4 | 105 | ₹10.77 · 105 in stock | View |
 | AMS1117-1.8#C18164483GR · SOT-223 | GR | SOT-223 | 680 | ₹5.34 · 680 in stock | View |
 | NCP1117ST18T3G#C255605onsemi · SOT-223 | onsemi | SOT-223 | 105 | ₹65.41 · 105 in stock | View |
 | 1117-1.8#C5125087IDCHIP · SOT-223 | IDCHIP | SOT-223 | 1,790 | ₹8.24 · 1,790 in stock | View |
