STDatasheet (PDF)

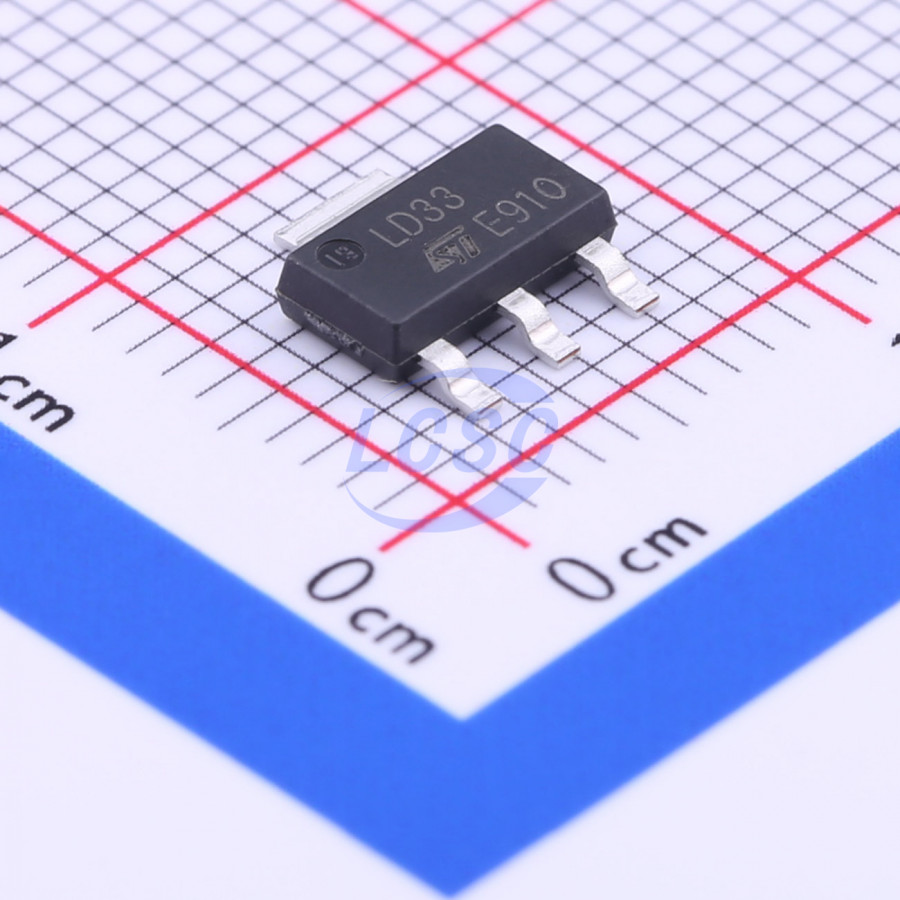

LD1117S33CTR
3.3V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
PopularSOT-223-4ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117S33CTR
- Store part #
- C35879
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48,220 in stock
#C35879
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.00 | ₹120.00 |
| 50+ | ₹18.56 | ₹928.00 |
| 150+ | ₹15.92 | ₹2,388.00 |
| 500+ | ₹13.55 | ₹6,775.00 |
| 2,500+ | ₹12.90 | ₹32,250.00 |
| 5,000+ | ₹12.50 | ₹62,500.00 |
5 × ₹24.00
₹120.00
excl. GST
₹141.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S33CTR
₹120.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1.3A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.321 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT1117CST-3.3#PBF#C140395ADI · SOT-223-3 | ADI | SOT-223-3 | 16 | ₹1,115.95 · 16 in stock | View |
| LT1117IST-3.3#TRPBF#C661274ADI · SOT-223-3 | ADI | SOT-223-3 | 14 | ₹1,246.65 · 14 in stock | View | |
 | LT1117IST-3.3#PBF#C114908ADI · SOT-223-3 | ADI | SOT-223-3 | 7 | ₹1,574.21 · 7 in stock | View |
 | AZ1117CH2-3.3TRG1#C108492DIODES · SOT-223 | DIODES | SOT-223 | 3 | ₹101.47 · 3 in stock | View |
 | SK6117-33LR#C2986181Suntek · SOT-223 | Suntek | SOT-223 | 2,430 | ₹21.45 · 2,430 in stock | View |
