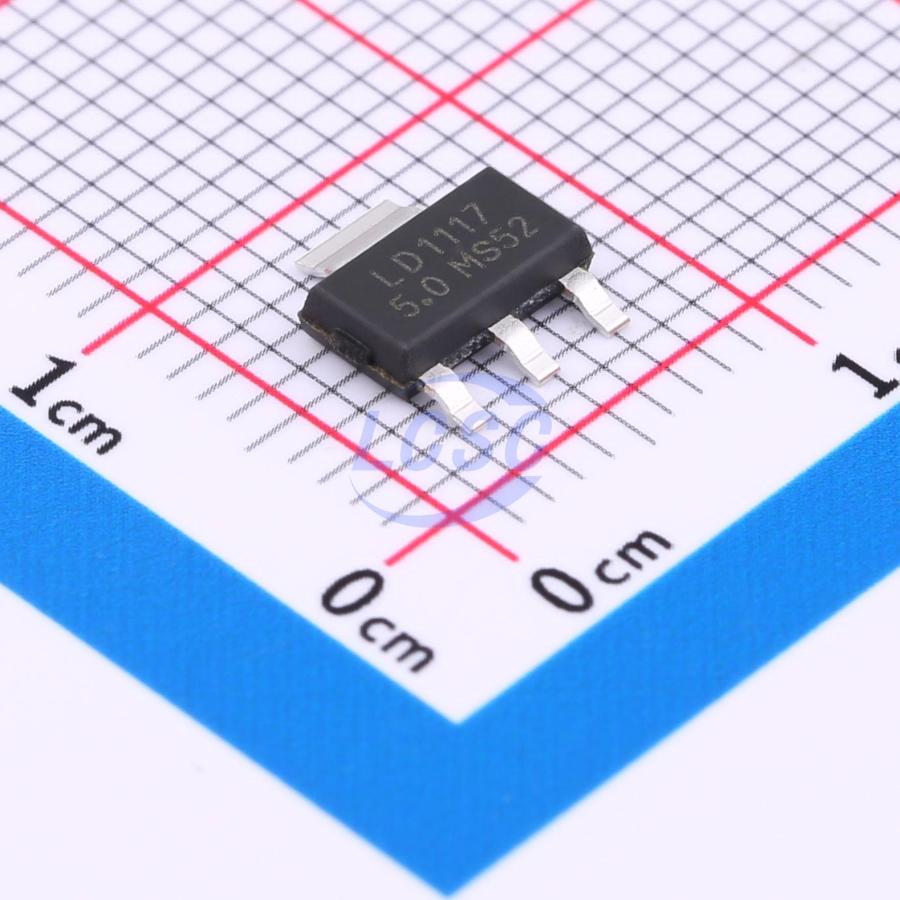

LD1117S50TR(MS)
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223RoHSActive
Low Dropout (LDO) Three-Terminal Voltage Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LD1117S50TR(MS)
- Store part #
- C20538891
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C20538891
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.42 | ₹57.10 |
| 50+ | ₹9.02 | ₹451.00 |
| 150+ | ₹7.83 | ₹1,174.50 |
| 500+ | ₹6.93 | ₹3,465.00 |
| 2,500+ | ₹6.22 | ₹15,550.00 |
| 5,000+ | ₹5.85 | ₹29,250.00 |
5 × ₹11.42
₹57.10
excl. GST
₹67.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S50TR(MS)
₹57.10 for 5 + GST
Specifications
- Output Voltage
- 4.9V~5.1V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Ta)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.201 g
Overview
LD1117X-x.(MS) is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. It features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V, it has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. It offers thermal shut down function, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%. It is available in SOT-223, TO-252 and SOT89 power package.
Applications
- Power Management for Computer Mother Board, Graphic Card
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL Modem
- Post Regulators for Switching Supplies
Key features
- Output current is 1A
- Range of operation input voltage: 15V
- Line regulation: 0.03%/V (typ.)
- Standby current: 2mA (typ.)
- Load regulation: 0.2%/A (typ.)
- Environment Temperature: -40°C - 85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117S-5.0(MS)#C20538887MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 910 | ₹12.02 · 910 in stock | View |
 | AMS1117-5.0(MS)#C20538892MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 7,390 | ₹5.76 · 7,390 in stock | View |
