STDatasheet (PDF)

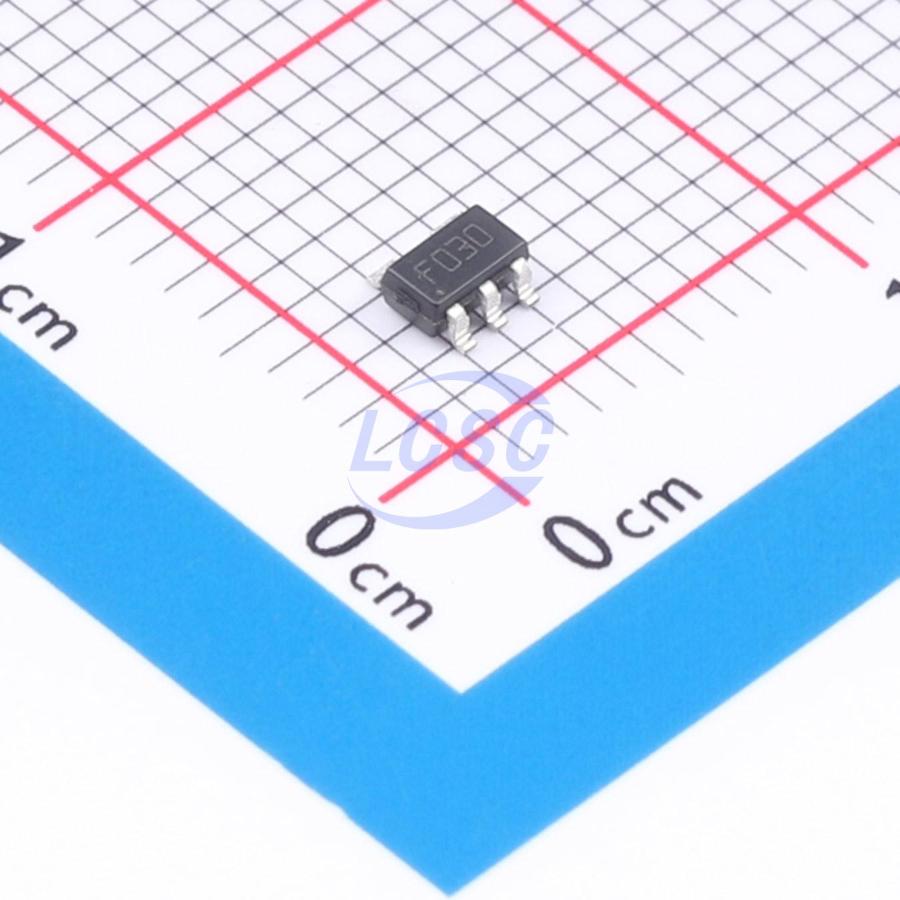

LD2980ABM30TR
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Ultra low drop voltage regulators compatible with low ESR output capacitors
- Manufacturer
- ST
- Manufacturer part #
- LD2980ABM30TR
- Store part #
- C2971329
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,113 in stock
#C2971329
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.06 | ₹93.06 |
| 10+ | ₹75.01 | ₹750.10 |
| 30+ | ₹65.89 | ₹1,976.70 |
| 100+ | ₹56.97 | ₹5,697.00 |
| 500+ | ₹47.18 | ₹23,590.00 |
| 1,000+ | ₹44.36 | ₹44,360.00 |
1 × ₹93.06
₹93.06
excl. GST
₹109.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LD2980ABM30TR
₹93.06 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.2mA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 50mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Reverse-polarity current protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.064 g
Overview
The low drop voltage and the ultra low quiescent current make them suitable for low noise, low power applications and in battery powered systems. The quiescent current in sleep mode is less than 1 µA when the INHIBIT pin is pulled low. A shutdown logic control function is available on pin n° 3 (TTL compatible). This means that when the device is used as local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. The LD2980 is designed to work with low ESR ceramic capacitors.
Key features
- Ultra low dropout voltage (0.7 mV typ. at 50 mA load, 7 mV typ. at 1 mA load)
- Very low quiescent current (80 µA typ.)
- Guaranteed output current up to 50 mA
- Logic Controlled Electronic Shutdown
- ± 0.5% Tolerance output voltage
- Output low noise voltage
- Temperature range: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP2980AIM5X-3.0/NOPB#C2859679TI · SOT-23-5 | TI | SOT-23-5 | 2 | ₹78.28 · 2 in stock | View |
 | LP2980AIM5-3.0/NOPB#C181455TI · SOT-23-5 | TI | SOT-23-5 | 3,030 | ₹72.35 · 3,030 in stock | View |
 | LP2981AIM5-3.0/NOPB#C134030TI · SOT-23-5 | TI | SOT-23-5 | 1 | ₹146.22 · 1 in stock | View |
 | LP2981-30DBVR#C205951TI · SOT-23-5 | TI | SOT-23-5 | 932 | ₹44.49 · 932 in stock | View |
 | LP2981IM5-3.0/NOPB#C2865099TI · SOT-23-5 | TI | SOT-23-5 | 4 | ₹291.21 · 4 in stock | View |
