STDatasheet (PDF)

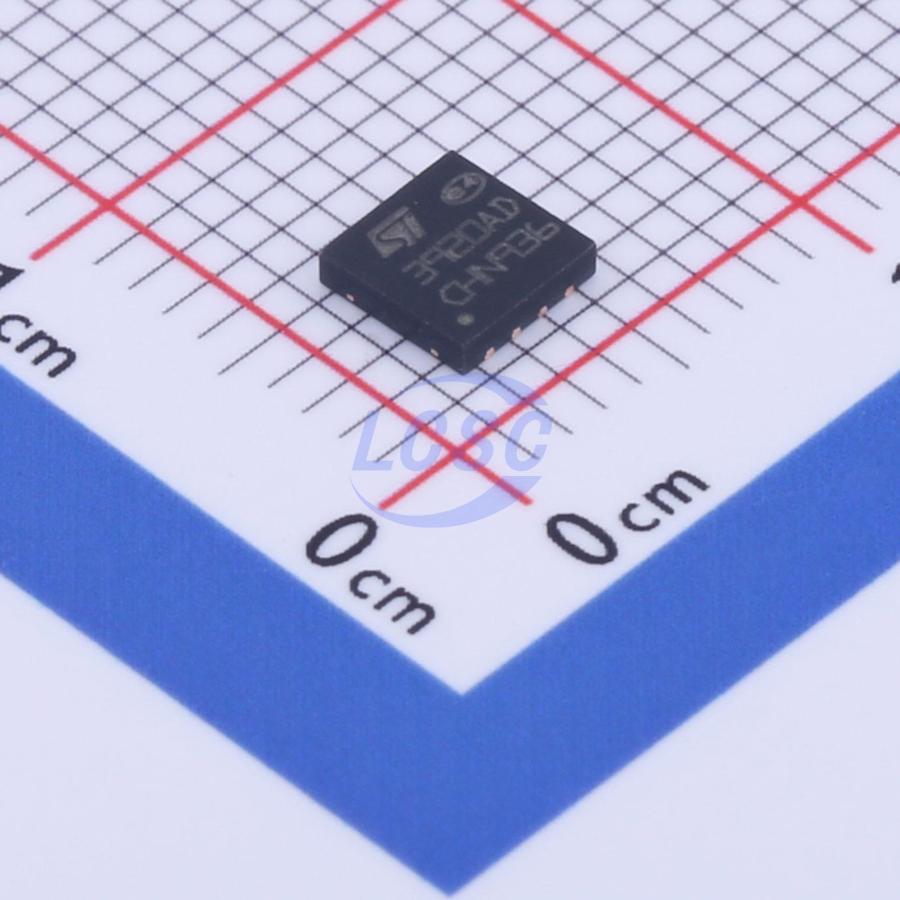

LD39200DPUR
500mV~5.9V Positive Adjustable DFN-8(4x4) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-8(4x4)ROHS3 CompliantActive
2 A High PSRR Ultra-Low Dropout Linear Regulator with Reverse Current Protection
- Manufacturer
- ST
- Manufacturer part #
- LD39200DPUR
- Store part #
- C880590
- Package / case
- DFN-8(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,967 in stock
#C880590
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.79 | ₹192.79 |
| 10+ | ₹158.48 | ₹1,584.80 |
| 30+ | ₹139.59 | ₹4,187.70 |
| 100+ | ₹118.32 | ₹11,832.00 |
| 500+ | ₹105.73 | ₹52,865.00 |
| 1,000+ | ₹101.38 | ₹1,01,380.00 |
1 × ₹192.79
₹192.79
excl. GST
₹227.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
LD39200DPUR
₹192.79 for 1 + GST
Specifications
- Output Voltage
- 500mV~5.9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 2A
- Features
- Enable control;Operating status indication;Reverse-polarity current protection;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.161 g
Overview
The LD39200 provides 2 A of maximum current with an input voltage range from 1.25 V to 6.0 V, and a typical dropout voltage of 130 mV. It is stable with ceramic capacitors on the output (10 μF). Typical power supply rejection ratio is 70 dB at 1 kHz and starts to roll off at 20 kHz. The enable logic control function puts the LD39200 in shutdown mode, reducing the total current consumption to 10 nA (typ.). Power Good flag is available on a dedicated pin. The device also includes reverse current protection, short - circuit constant current limit and thermal protection. Typical applications are for Telecom infrastructure and consumer.
Applications
- Telecom infrastructure Medium power POL
Key features
- Input voltage from 1.25 V to 6.0 V
- Ultra low drop: 130 mV (typ.) at 2 A load
- 1 % output accuracy at 25 °C, 2 % in full temperature range
- High PSRR: 70 dB at 1 kHz
- Reverse current protection
- 2 A guaranteed output current
- Available in fixed and adjustable output voltage version from 0.5 V with 100 mV step
- Power Good
- Internal current and thermal limit
- Operating junction temperature range: - 40 °C to 125 °C
- DFN6 (3×3 mm) and DFN8 (4×4 mm) packages
