analogysemi

LD501PCSOT-30

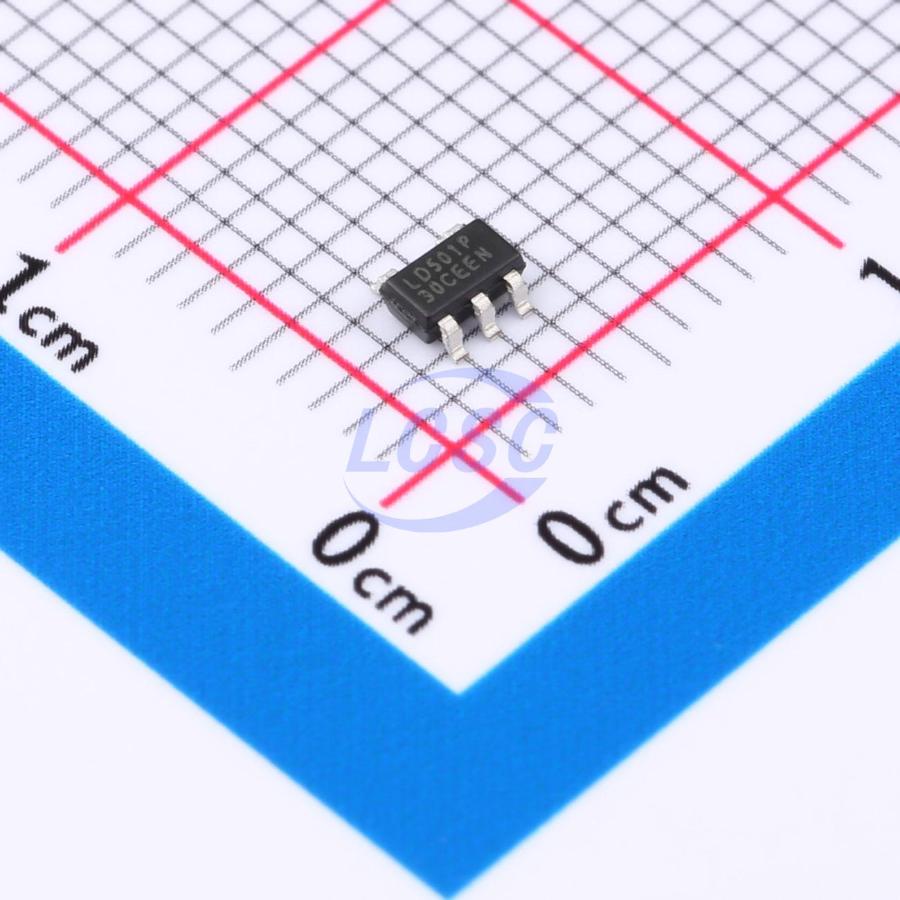

Linear Voltage Regulator IC 250mA SOT23-5

SOT23-5RoHSActive

IC REG LINEAR 3V 250mA SOT23-5

Manufacturer: analogysemi
Manufacturer part #: LD501PCSOT-30
Store part #: C5349831
Package / case: SOT23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,010 in stock

#C5349831

Stock & price checked 33 h ago

Quantity	Unit price	Pack price
1+	₹71.72	₹71.72
10+	₹63.68	₹636.80
30+	₹59.55	₹1,786.50
100+	₹55.63	₹5,563.00
500+	₹53.25	₹26,625.00
1,000+	₹51.94	₹51,940.00

Quantity (min 1)

1 × ₹71.72

₹71.72

excl. GST

₹84.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LD501PCSOT-30

₹71.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 12uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 250mA
Output Type: Fixed
Features: Enable control;Built-in soft-start;Short Circuit Protection;Thermal shutdown;Input under-voltage protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.027 g

Overview

The LD501 is an ultra-low noise, low dropout linear regulator operating from 2.2 V to 5.5 V, supporting maximum output currents of 150 mA (LD501L), 200 mA (LD501M), or 250 mA (LD501P). The LD501 features a very low dropout voltage: 70 mV at 150 mA load (LD501L), 94 mV at 200 mA load (LD501M), and 118 mV at 250 mA load (LD501P), enabling high-efficiency operation across a wide input voltage range. Thanks to an optimized circuit topology, the LD501 achieves ultra-low noise performance without a bypass capacitor, making it well suited for noise-sensitive or space-constrained RF applications. The LD501 delivers ultra-low noise performance without compromising PSRR or load transient response. In addition, the low quiescent current of 170 μA (LD501L), 200 μA (LD501M), or 229 μA (LD501P) makes the LD501 ideal for battery-powered portable devices. The LD501 supports 1 μF, ±30% ceramic capacitors at both input and output, meeting the demands of applications requiring both high performance and a small footprint. The LD501 offers more than 32 fixed output voltage options ranging from 1.1 V to 5.0 V. With built-in short-circuit protection and thermal overload protection, the LD501 is available in a SOT23-5 package to address a wide range of portable power applications.

Applications

RF, VCO, PLL power supply
Mobile systems
Digital cameras
Portable products
Medical devices

Key features

Ultra-low noise: VOUT = 3.3 V: 13.5 μV; VOUT = 1.1 V: 9.5 μV
Input voltage range: 2.2 V to 5.5 V
PSRR: 74 dB @ 10 kHz
Maximum output current: 150 mA (LD501L); 200 mA (LD501M); 250 mA (LD501P)
Low quiescent current: IGND = 12 μA at IOUT = 0 mA; IGND = 170 μA at IOUT = 150 mA (LD501L); IGND = 200 μA at IOUT = 200 mA (LD501M); IGND = 229 μA at IOUT = 250 mA (LD501P)
Low shutdown current: 0.25 μA
Low dropout: VDROPOUT = 70 mV at IOUT = 150 mA (LD501L); VDROPOUT = 94 mV at IOUT = 200 mA (LD501M); VDROPOUT = 118 mV at IOUT = 250 mA (LD501P)
Initial accuracy: ±1%
Overall accuracy: ±2.5%
No noise bypass capacitor required
Current limiting protection and over-temperature protection
EN pin support
SOT23-5 package
