LeadtrendDatasheet (PDF)

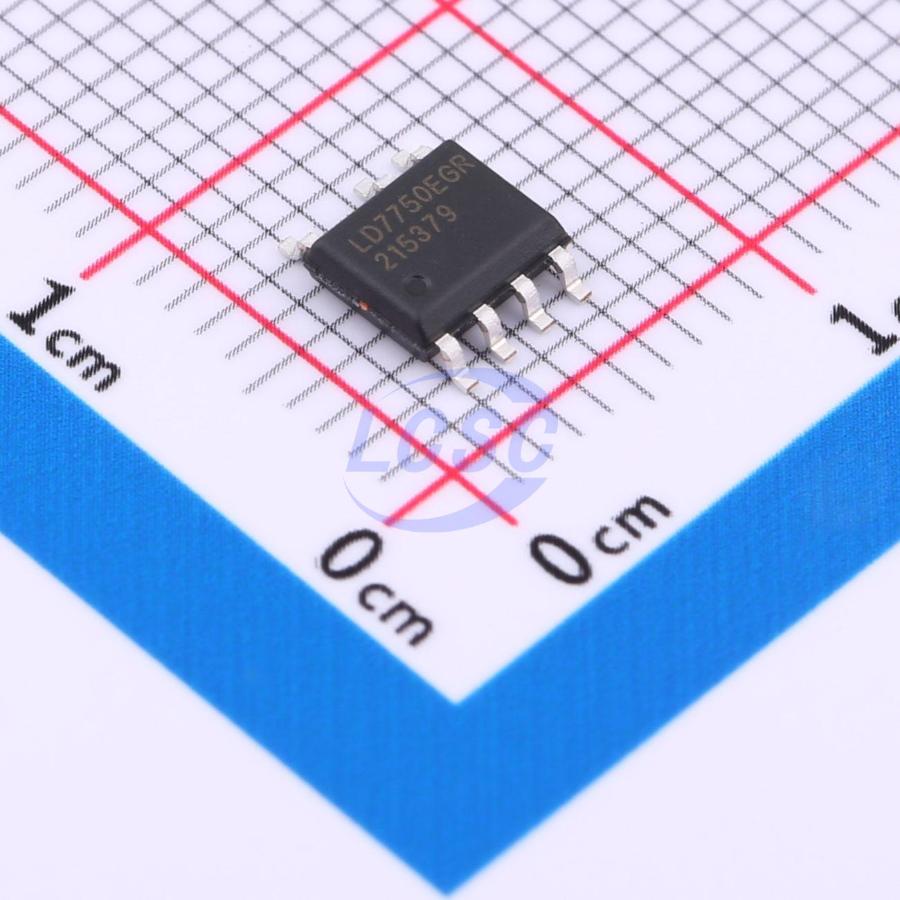

LD7750EGR
500mA 65kHz 400mW 500V Flyback SOP-7 AC DC Converters, Offline Switchers RoHS
SOP-7ROHS CompliantActive
High Voltage Green-Mode PWM Controller with Over Temperature Protection
- Manufacturer
- Leadtrend
- Manufacturer part #
- LD7750EGR
- Store part #
- C3008462
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,047 in stock
#C3008462
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.90 | ₹54.90 |
| 10+ | ₹44.07 | ₹440.70 |
| 30+ | ₹39.37 | ₹1,181.10 |
| 100+ | ₹33.59 | ₹3,359.00 |
| 500+ | ₹29.80 | ₹14,900.00 |
| 1,000+ | ₹28.36 | ₹28,360.00 |
1 × ₹54.90
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD7750EGR
₹54.90 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Output Current
- 500mA
- Frequency - Switching
- 65kHz
- Pd - Power Dissipation
- 400mW
- Voltage - Breakdown
- 500V
- Topology
- Flyback
- Features
- High voltage direct start;Light load efficient mode;Leading edge blanking;Slope compensation;Under-voltage lockout;Hiccup current limiting;Over Voltage Protection;Overtemperature protection (OTP);Under Voltage Protection
- Duty Cycle(Max)
- 75%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The LD7750E integrates several functions of protections, and EMI-improved solution in a SOP-7, SOP-8 or DIP-8 package to minimize the component counts and the circuit space. The device provides functions of low startup current, green-mode power-saving operation, leading-edge blanking of the current sensing and internal slope compensation. Also, the LD7750E features more protections like OLP (Over Load Protection), OVP (Over Voltage Protection), and OTP (Over Temperature Protection) to prevent the circuit being damaged under the abnormal conditions. The LD7750E features built-in auto-recovery function for OVP on Vcc pin and OLP.
Applications
- Switching AC/DC Adaptor and Battery Charger
- Open Frame Switching Power Supply
- LCD Monitor/TV Power
Key features
- High-Voltage (500V) Startup Circuit
- Current Mode Control
- Green Mode Control
- UVLO (Under Voltage Lockout)
- LEB (Leading-Edge Blanking) on CS Pin
- Internal Frequency Swapping
- Internal Slope Compensation
- Internal Over Current Protection
- OVP (Over Voltage Protection) on Vcc
- OLP (Over Load Protection)
- External OTP through a NTC
- 500mA Driving Capability
