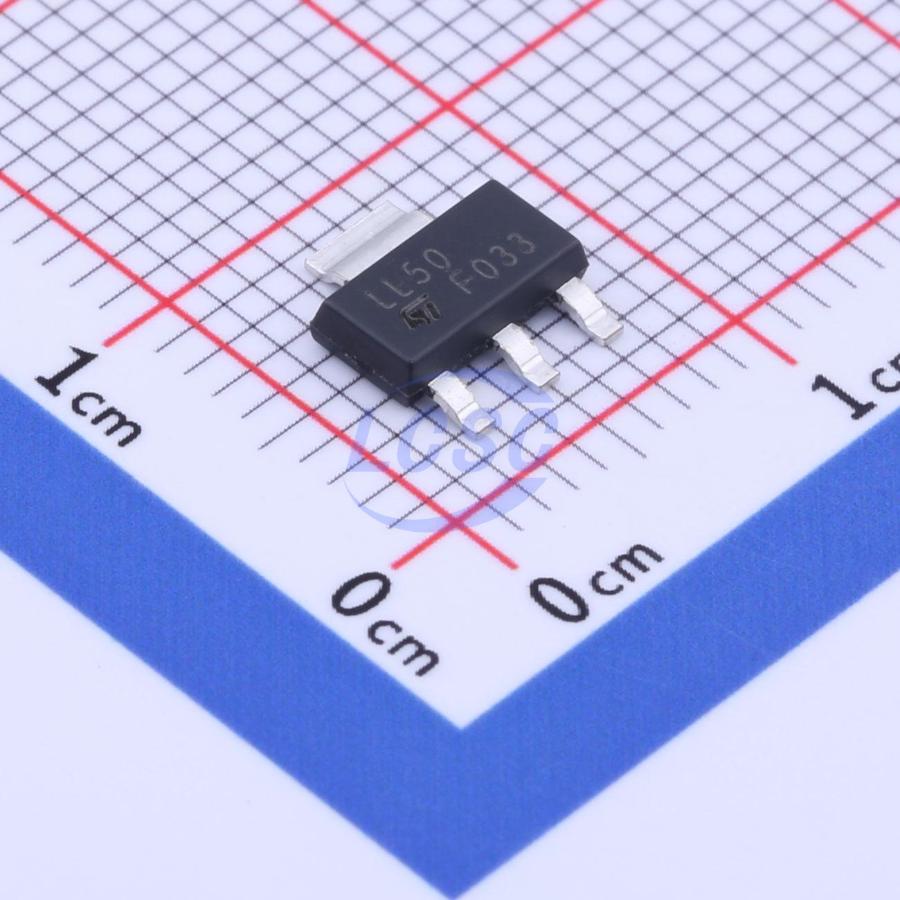

LDL1117S50R
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
1.2 A high PSRR low-dropout linear voltage regulator
- Manufacturer
- ST
- Manufacturer part #
- LDL1117S50R
- Store part #
- C970558
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,650 in stock
#C970558
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.55 | ₹187.75 |
| 50+ | ₹29.11 | ₹1,455.50 |
| 150+ | ₹25.49 | ₹3,823.50 |
| 500+ | ₹20.98 | ₹10,490.00 |
| 2,500+ | ₹18.97 | ₹47,425.00 |
| 5,000+ | ₹17.75 | ₹88,750.00 |
5 × ₹37.55
₹187.75
excl. GST
₹221.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LDL1117S50R
₹187.75 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 250uA
- Output Configuration
- Positive
- Output Current
- 1.2A
- Operating Voltage
- 18V
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.251 g
Overview
The LDL1117 provides 1.2 A of maximum current with an input voltage range from 2.5 V to 18 V, and a typical dropout voltage of 350 mV @ 1.2 A. The high power supply rejection ratio of 87 dB at 120 Hz, rolling down to more than 40 dB at 100 kHz, makes the LDL1117 suitable for direct regulations in SMPS and secondary linear regulations in DC - DC converters. This device includes current limit, SOA and thermal protections.
Applications
- Consumer
- Industrial
- SMPS
- Motherboard P.O.L.
- DC - DC post - regulation
Key features
- Input voltage from 2.5 V to 18 V
- Available on fixed output voltages: 1.2 V (1.185 V), 1.5 V, 1.8 V, 2.5 V, 3 V, 3.3 V, 5.0 V (other options are available on request)
- Guaranteed output current 1.2 A
- Typical dropout 350 mV @ 1.2 A
- Internal thermal, current and power limitation
- High PSRR 87 dB @ 120 Hz
- Operating temperature range: -40 °C to 125 °C
- Package SOT223
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL8072CLTR50#C692268BL · SOT-223-4 | BL | SOT-223-4 | 2,880 | ₹31.54 · 2,880 in stock | View |
 | LM340MPX-5.0/NOPB#C2860024TI · SOT-223-4 | TI | SOT-223-4 | 3 | ₹221.66 · 3 in stock | View |
 | LM7805MPX/NOPB#C2848241TI · SOT-223-4 | TI | SOT-223-4 | 3,288 | ₹150.90 · 3,288 in stock | View |
 | LM7805MP/NOPB#C2872300TI · SOT-223-4 | TI | SOT-223-4 | 197 | ₹221.76 · 197 in stock | View |
| LM340MPX-5.0-TP#C41348208TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,420 | ₹50.63 · 2,420 in stock | View | |
