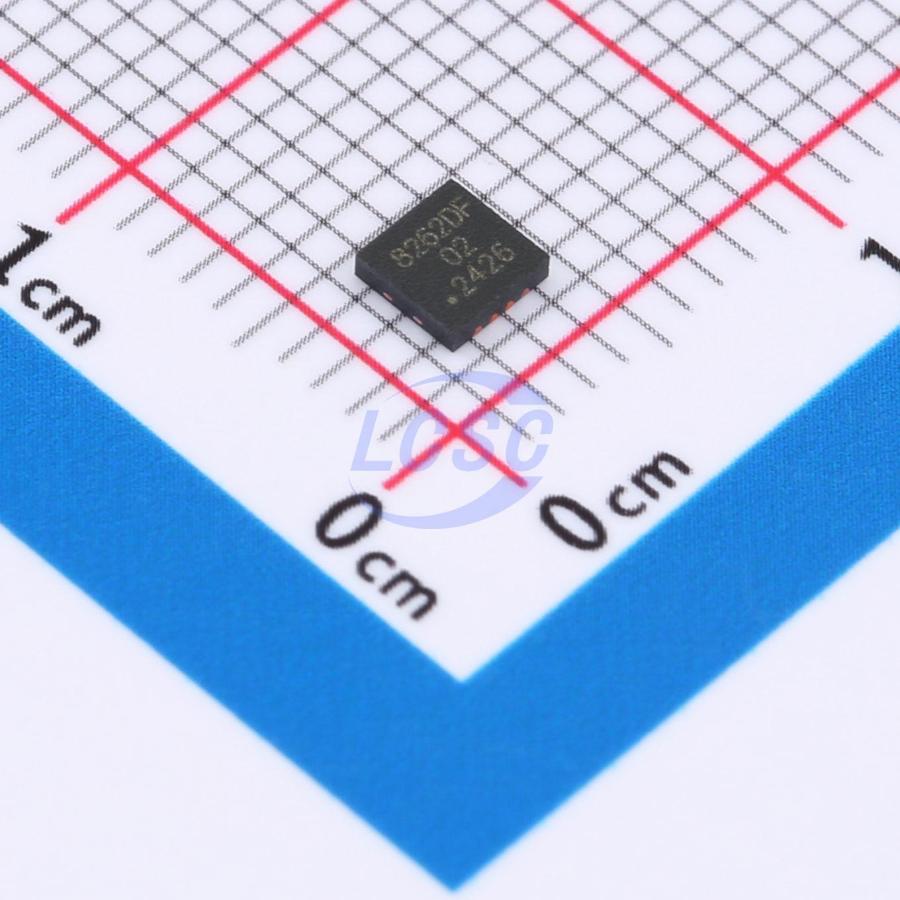

LKP8262DF-02
Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA DFN-8-EP(3x3)
DFN-8-EP(3x3)RoHSActive
Ultra-low noise linear voltage regulator
- Manufacturer
- LKWIC
- Manufacturer part #
- LKP8262DF-02
- Store part #
- C46629085
- Package / case
- DFN-8-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,592 in stock
#C46629085
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹703.84 | ₹703.84 |
| 10+ | ₹603.43 | ₹6,034.30 |
| 30+ | ₹551.07 | ₹16,532.10 |
| 100+ | ₹499.79 | ₹49,979.00 |
1 × ₹703.84
₹703.84
excl. GST
₹830.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
LKP8262DF-02
₹703.84 for 1 + GST
Specifications
- Output Voltage
- 1.5V~4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 7mA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 800mA
- Features
- Enable control;Input under-voltage protection;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
LKP8262DF is a series of ultra-low noise LDOs powered by a 4.5V~16V supply, with a maximum output current of 800mA. This device employs an advanced proprietary architecture to deliver high power supply rejection [greater than 90dB from 1kHz to 100kHz], achieving excellent line and load transient response performance with a single 10μF ceramic output capacitor. Using two resistors, the output voltage can be set to any value within the range of 1.5V~5.1V.
Applications
- Power supply noise-sensitive applications: RF mixers, PLLs, VCOs, and PLLs with integrated VCO
- Clock distribution circuits
- Ultrasound and other imaging applications
- High-speed RF transceivers
- High-speed ADCs with 16-bit and above resolution
- Communications and infrastructure
- Cable DAC drivers
Key features
- Input voltage range: 4.5V~16V (LKP8262DF-02); 6.2V~16V (LKP8262DF-04)
- Output voltage range: 1.5V~5.1V
- Maximum output current: 800mA
- Dropout voltage: 0.6V (VOUT = 5V, 800mA load)
- Low noise:
- 100Hz~100kHz total integrated noise: 1.0μVRMS
- 10Hz~100kHz total integrated noise: 1.6μVRMS
- PSRR at 400mA load:
- >90dB (1kHz~100kHz, VOUT = 5V)
- >60dB (1MHz, VOUT = 5V)
- Voltage accuracy over full line, load, and temperature range: ±2%
- Operating temperature: -40℃~+125℃
- Package: DFN8 (3.00mm×3.00mm×0.75mm)
