LKWICDatasheet (PDF)

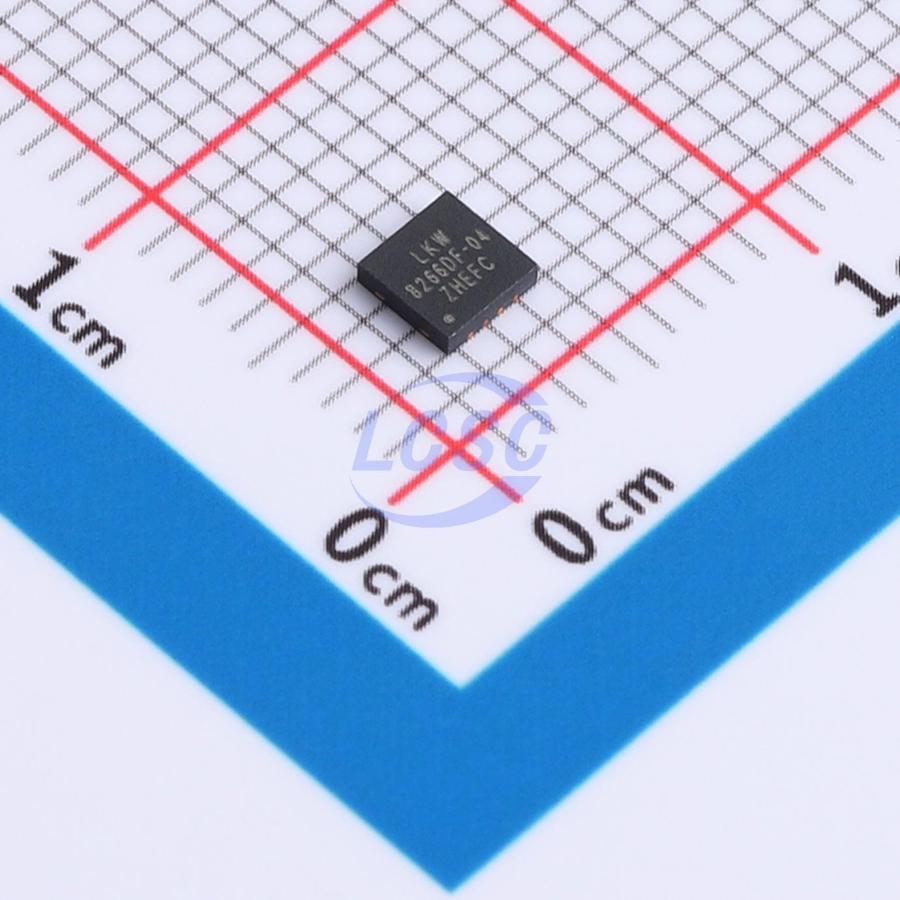

LKP8266DF-04
1.2V~3.4V Positive Adjustable DFN-8(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-8(3x3)RoHSActive
- Manufacturer
- LKWIC
- Manufacturer part #
- LKP8266DF-04
- Store part #
- C53233022
- Package / case
- DFN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C53233022
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹597.55 | ₹597.55 |
| 10+ | ₹511.30 | ₹5,113.00 |
| 30+ | ₹460.02 | ₹13,800.60 |
| 100+ | ₹408.09 | ₹40,809.00 |
| 500+ | ₹384.28 | ₹1,92,140.00 |
| 1,500+ | ₹373.34 | ₹5,60,010.00 |
1 × ₹597.55
₹597.55
excl. GST
₹705.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
LKP8266DF-04
₹597.55 for 1 + GST
Specifications
- Output Voltage
- 1.2V~3.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 7mA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Adjustable
- Features
- Enable control;Built-in soft-start;Noise bypass terminal;Input under-voltage protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The LKP8266DF series is an ultra-low noise LDO linear regulator operating from a 2.3V to 5.5V supply, with an adjustable output voltage range of 1.2V to 3.4V and a maximum output current of 600mA. Utilizing an advanced proprietary architecture, the device delivers high PSRR and ultra-low noise performance, achieving excellent line and load transient response with only a single 10μF ceramic output capacitor. Internally, it comprises a voltage reference, an error amplifier, and a P-channel MOSFET pass transistor, where the error amplifier regulates the output voltage by controlling the PMOS pass device.
Applications
- Phase-locked loop
- Voltage-controlled oscillator
- PLL with integrated VCO
- Microwave link
Key features
- Input voltage range: 2.3V~5.5V
- Adjustable output voltage: 1.2V~3.4V
- Maximum output current: 600mA
- Low quiescent current: 4mA
- Low dropout: 120mV@3.3V, 600mA
- Low noise: 1.6μV_RMS total integrated noise (10Hz~100kHz)
- PSRR: >90dB@200Hz~200kHz, >57dB@1MHz
- Low shutdown current: 0.2μA
- Voltage accuracy over full line, load and temperature range: ±2%
- Package: DFN8 (3.00mm×3.00mm×0.75mm) plastic encapsulation
