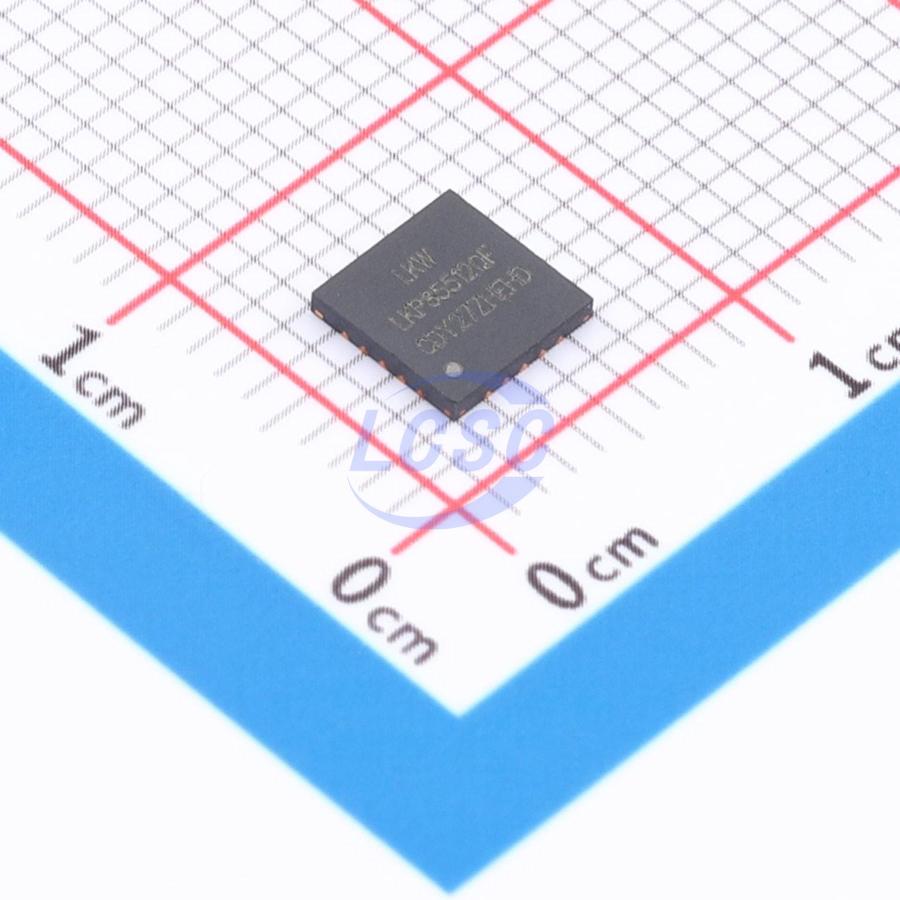

LKP85512QF
800mV~3.6V Positive Adjustable QFN-20(5x5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
QFN-20(5x5)RoHSActive
IC REG LINEAR 800mV~3.6V 3A QFN-20(5x5)
- Manufacturer
- LKWIC
- Manufacturer part #
- LKP85512QF
- Store part #
- C49451834
- Package / case
- QFN-20(5x5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,514 in stock
#C49451834
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.91 | ₹121.91 |
| 10+ | ₹97.57 | ₹975.70 |
| 30+ | ₹85.40 | ₹2,562.00 |
| 100+ | ₹73.24 | ₹7,324.00 |
| 500+ | ₹68.89 | ₹34,445.00 |
| 1,000+ | ₹64.97 | ₹64,970.00 |
1 × ₹121.91
₹121.91
excl. GST
₹143.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LKP85512QF
₹121.91 for 1 + GST
Specifications
- Output Voltage
- 800mV~3.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 3A
- Output Type
- Adjustable
- Features
- Enable control;Adjustable soft-start;Operating status indication
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
The LKP85512QF is a low-dropout linear regulator that provides power management solutions for a wide range of applications. Its programmable soft-start function reduces capacitive inrush current during system startup, thereby minimizing input power supply stress. This device is well-suited for powering various processors and ASICs. With enable input and power-good output, it provides solutions for applications with specific startup sequencing requirements, and can maintain system stability without an external output capacitor or with only a small ceramic output capacitor. The output voltage can be set using the formula V_OUT = 0.8V × (1 + R1/R2).
Applications
- FPGA applications
- DSP core and I/O voltage
- Post-regulation circuits
- Applications with special startup or sequencing requirements
- Hot-swap and inrush control
Key features
- Input voltage range: 1.1V ~ 5.5V
- Adjustable output voltage range: 0.8V ~ 3.6V
- Maximum output current: 3A
- Low dropout: 115mV @ 3A
- Soft-start pin enables linear startup; rise time set via external capacitor
- Input voltage down to 0.9V with external bias supply
- Stable with any output capacitor or no output capacitor
- Fast transient response
- Package: QFN20 (5.00mm × 5.00mm × 0.75mm)
