LKWIC

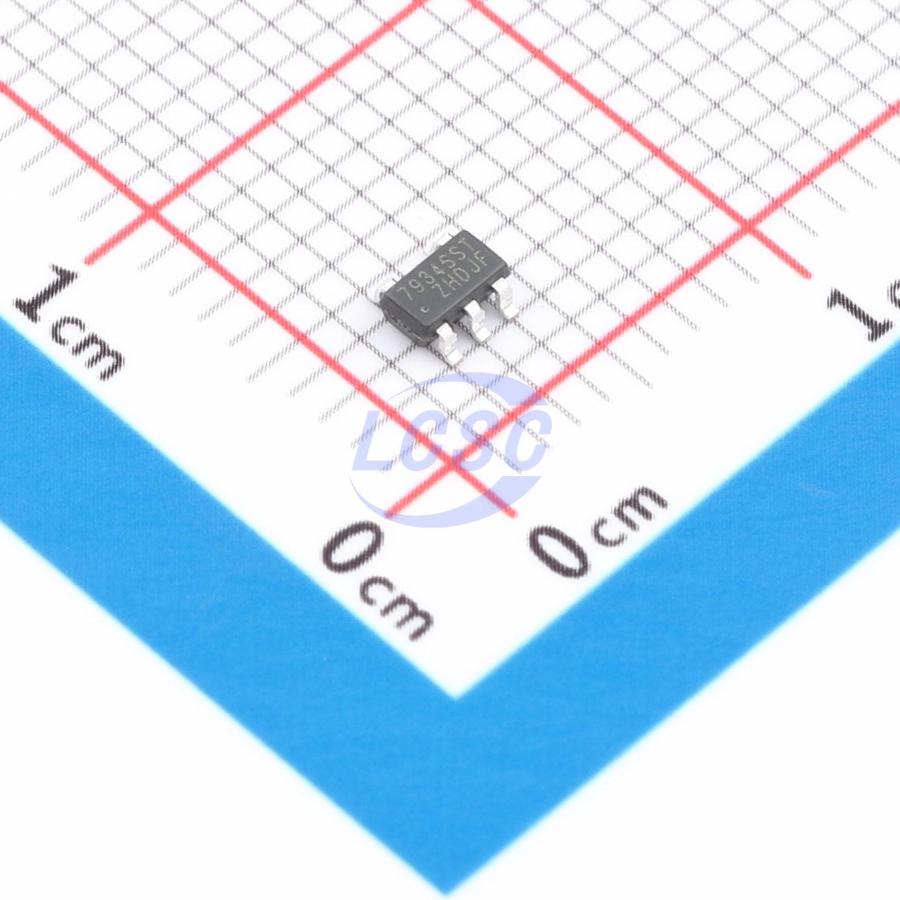

LKQ7934SST

140ms Active Low 1.2V~5.5V 1 SOT-23-5 Supervisors

SOT-23-5RoHSActive

Manufacturer: LKWIC
Manufacturer part #: LKQ7934SST
Store part #: C54442480
Package / case: SOT-23-5
Category: Supervisors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

995 in stock

#C54442480

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹316.70	₹316.70
10+	₹268.20	₹2,682.00
30+	₹237.95	₹7,138.50
100+	₹206.84	₹20,684.00
500+	₹192.89	₹96,445.00
1,000+	₹186.68	₹1,86,680.00

Quantity (min 1)

1 × ₹316.70

₹316.70

excl. GST

₹373.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LKQ7934SST

₹316.70 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Reset Timeout: 140ms
Operating Temperature: -40℃~+85℃
output type: Push-pull
Reset Active Level: Active Low
standby current: 30uA
Voltage - Supply: 1.2V~5.5V
ChipType: Power Supervisor
Threshold Voltage: 2.93V
Number of Voltages Monitored: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.101 g

Overview

LKQ7934xST is a series of low-voltage power supply monitoring circuits with manual reset and watchdog functions, designed for power-on reset and brownout protection of digital controllers such as processors or MCUs. The watchdog timer is cleared when RESET# is asserted or the watchdog is toggled; as long as RESET# is not asserted, the watchdog continues counting.
