VISHAYDatasheet (PDF)

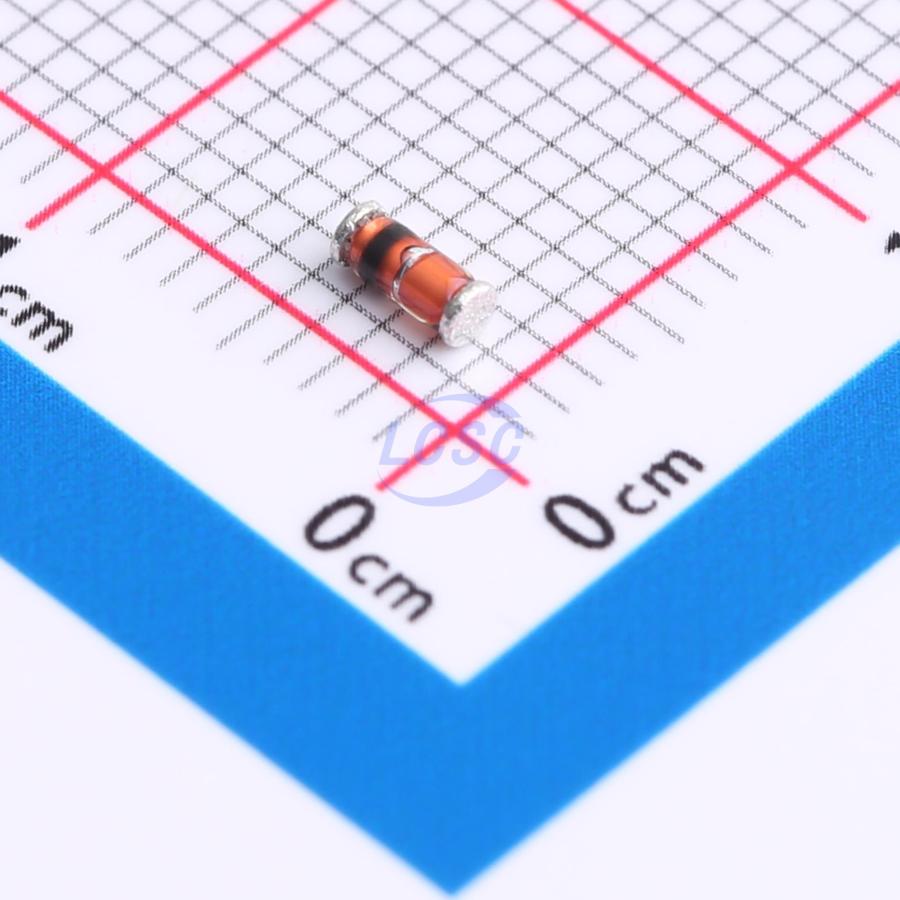

LL41-GS08
Diode 1 Independent 100V 100mA Surface Mount MiniMELF
MiniMELFROHS3 CompliantActive
DIODE SCHOTTKY 100V MiniMELF
- Manufacturer
- VISHAY
- Manufacturer part #
- LL41-GS08
- Store part #
- C3313141
- Package / case
- MiniMELF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
415 in stock
#C3313141
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.06 | ₹65.30 |
| 50+ | ₹10.40 | ₹520.00 |
| 150+ | ₹9.06 | ₹1,359.00 |
| 500+ | ₹8.06 | ₹4,030.00 |
| 2,500+ | ₹7.26 | ₹18,150.00 |
| 5,000+ | ₹6.87 | ₹34,350.00 |
5 × ₹13.06
₹65.30
excl. GST
₹77.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LL41-GS08
₹65.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 1V@0.2A
- Reverse Leakage Current (Ir)
- 100nA@50V
- Non-Repetitive Peak Forward Surge Current
- 750mA
- Current - Rectified
- 100mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
Key features
- For general purpose applications
- This diode features low turn-on voltage and high breakdown voltage
- This device is protected by a PN junction guardring against excessive voltage, such as electrostatic discharges
- This diode is also available in the DO-35 (DO-204AH) case with type designation BAT41
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LL46-GS08#C5342958VISHAY · SOD-80 | VISHAY | SOD-80 | 4,130 | ₹16.83 · 4,130 in stock | View |
 | TMMBAT41FILM#C283272ST · MiniMELF | ST | MiniMELF | 3,525 | ₹10.19 · 3,525 in stock | View |
| LL41-GS18#C5751245VISHAY · SOD-80MiNiMELF | VISHAY | SOD-80MiNiMELF | On request | ₹19.32 · 0 in stock | View | |
| LL46-GS18#C6217815VISHAY · SOD-80MiNiMELF | VISHAY | SOD-80MiNiMELF | On request | ₹20.65 · 0 in stock | View | |
 | TMMBAT46FILM#C222234ST · MiniMELF | ST | MiniMELF | 500 | ₹9.60 · 500 in stock | View |
