VISHAYDatasheet (PDF)

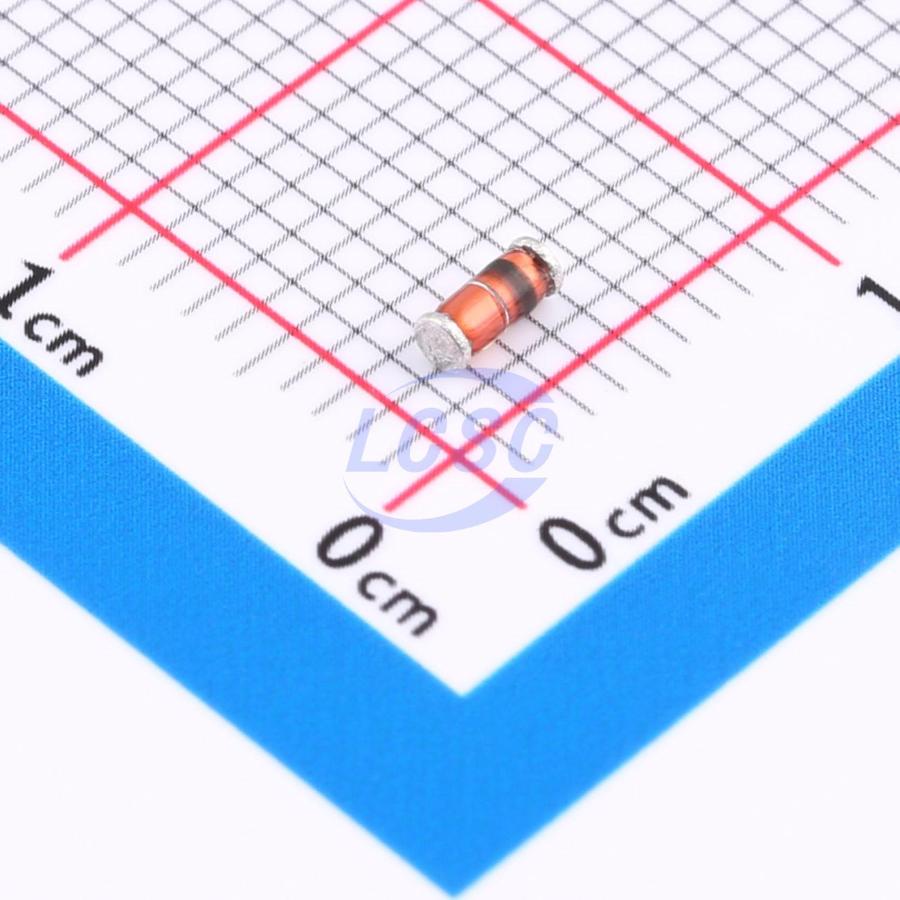

LL4148-GS08
Diode Independent 75V 300mA Surface Mount MiniMELF
PopularMiniMELFROHS3 CompliantActive
DIODE GP 75V 300mA MiniMELF
- Manufacturer
- VISHAY
- Manufacturer part #
- LL4148-GS08
- Store part #
- C68883
- Package / case
- MiniMELF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,98,475 in stock
#C68883
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹1.82 | ₹9.10 |
| 50+ | ₹1.43 | ₹71.50 |
| 150+ | ₹1.25 | ₹187.50 |
| 500+ | ₹1.12 | ₹560.00 |
| 2,500+ | ₹1.07 | ₹2,675.00 |
| 5,000+ | ₹1.03 | ₹5,150.00 |
5 × ₹1.82
₹9.10
excl. GST
₹10.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LL4148-GS08
₹9.10 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 8ns
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Voltage - Forward(Vf@If)
- 860mV@50mA
- Reverse Leakage Current (Ir)
- 5uA@75V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 300mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
Applications
- Extreme fast switches
Key features
- Silicon epitaxial planar diode
- Electrical data identical with the devices 1N4148 and 1N4448 respectively
- AEC-Q101 qualified
- Material categorization: For definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LS4148-GS18#C145227VISHAY · QuadroMELF | VISHAY | QuadroMELF | 23,870 | ₹4.00 · 23,870 in stock | View |
 | LS4148-GS08#C84133VISHAY · QuadroMELF | VISHAY | QuadroMELF | 16,570 | ₹5.34 · 16,570 in stock | View |
 | LL4448-GS08#C183025VISHAY · MiniMELF | VISHAY | MiniMELF | 8,740 | ₹3.64 · 8,740 in stock | View |
 | LL4148-M-18#C5224072VISHAY · SOD-80 | VISHAY | SOD-80 | 3,210 | ₹6.68 · 3,210 in stock | View |
 | LL4148-GS18#C2984668VISHAY · SOD-80 | VISHAY | SOD-80 | 2,840 | ₹4.06 · 2,840 in stock | View |
