VISHAYDatasheet (PDF)

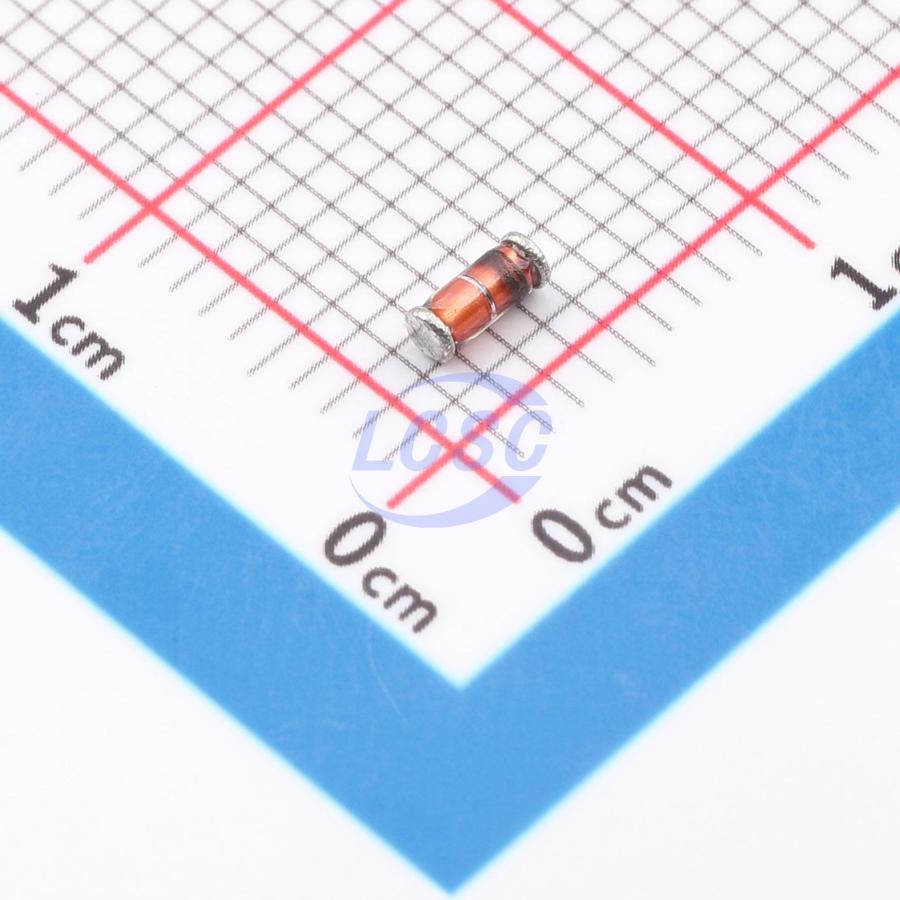

LL4150GS08
Diode Independent 50V 300mA Surface Mount SOD-80
SOD-80ROHS3 CompliantActive
DIODE GP 50V 300mA SOD-80
- Manufacturer
- VISHAY
- Manufacturer part #
- LL4150GS08
- Store part #
- C2979755
- Package / case
- SOD-80
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C2979755
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.95 | ₹69.50 |
| 100+ | ₹5.61 | ₹561.00 |
| 300+ | ₹4.93 | ₹1,479.00 |
| 2,500+ | ₹4.17 | ₹10,425.00 |
| 5,000+ | ₹3.77 | ₹18,850.00 |
| 10,000+ | ₹3.57 | ₹35,700.00 |
10 × ₹6.95
₹69.50
excl. GST
₹82.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LL4150GS08
₹69.50 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Pd - Power Dissipation
- 500mW
- Voltage - Forward(Vf@If)
- 1V@200mA
- Reverse Leakage Current (Ir)
- 100nA@50V
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 300mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.01 g
Overview
Applications
- High speed switch and general purpose use in computer and industrial applications
Key features
- Silicon epitaxial planar diodes
- Low forward voltage drop
- High forward current capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LL4150GS18#C142577VISHAY · MiniMELF | VISHAY | MiniMELF | 350 | ₹10.11 · 350 in stock | View |
 | LS4150GS08#C499523VISHAY · QuadroMELF | VISHAY | QuadroMELF | 10 | ₹5.64 · 10 in stock | View |
 | LL4148-GS18#C2984668VISHAY · SOD-80 | VISHAY | SOD-80 | 52,000 | ₹5.99 · 52,000 in stock | View |
 | LL4148#C211750YANGJIE · LL-34 | YANGJIE | LL-34 | 97,350 | ₹2.17 · 97,350 in stock | View |
 | LL4448-GS08#C183025VISHAY · MiniMELF | VISHAY | MiniMELF | 8,540 | ₹4.38 · 8,540 in stock | View |
