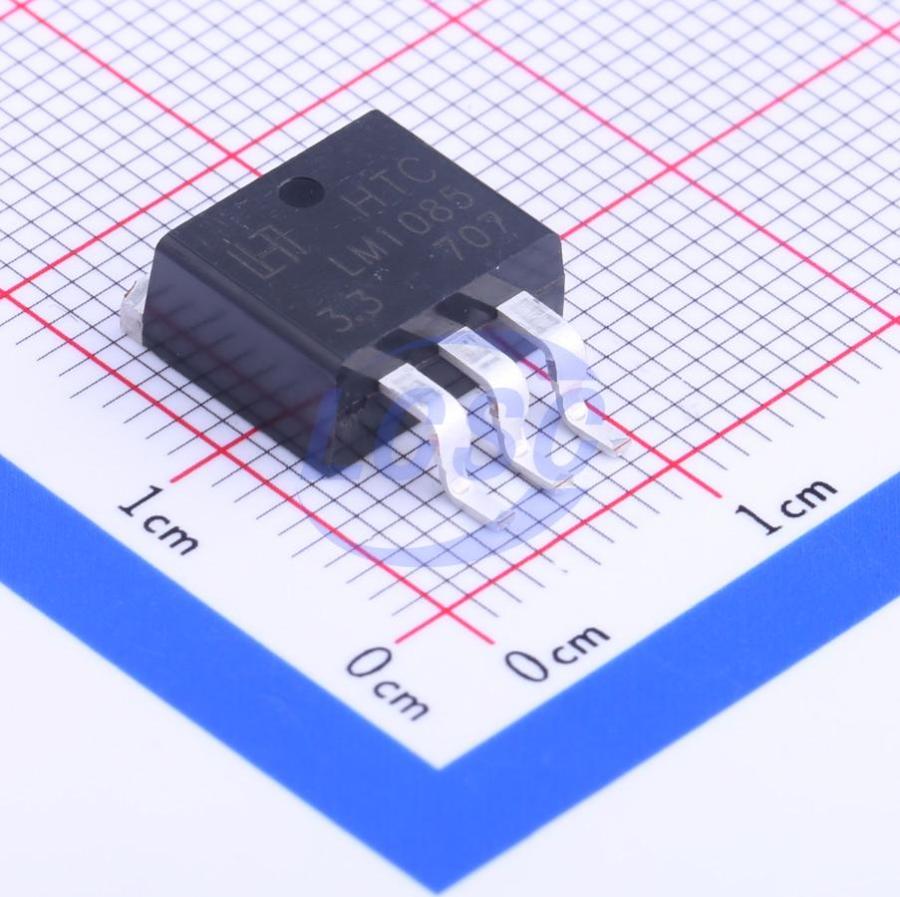

LM1085R-3.3
3.3V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-3ROHS CompliantActive
3A L.D.O. VOLTAGE REGULATOR (Adjustable & Fixed)
- Manufacturer
- HTC
- Manufacturer part #
- LM1085R-3.3
- Store part #
- C126016
- Package / case
- TO-263-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,598 in stock
#C126016
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.39 | ₹96.39 |
| 10+ | ₹77.90 | ₹779.00 |
| 30+ | ₹68.54 | ₹2,056.20 |
| 100+ | ₹59.40 | ₹5,940.00 |
| 500+ | ₹53.75 | ₹26,875.00 |
| 800+ | ₹50.92 | ₹40,736.00 |
1 × ₹96.39
₹96.39
excl. GST
₹113.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
LM1085R-3.3
₹96.39 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+70℃@(Ta)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 12V
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.323 g
Overview
The LM1085 series of positive adjustable and fixed regulators are designed to provide 3A with high efficient. All internal circuitry is designed to operate down to 1.5V input to output differential. On-chip trimming adjusts the reference voltage to 1%. It's low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications. Internal current and thermal limiting provides protection against any overload condition that would create excessive junction temperature.
Applications
- High Efficiency Linear Regulators / Power Supply
- High Efficiency "Green" Computer Systems
- Constant Current Regulators
- Portable Instrumentation
- SMPS Post-Regulator
- Adjustable Power Supplies
- Powering VGA & Sound Card
Key features
- Output Current of 3A
- Fast Transient Response
- 0.04% Line Regulation
- 0.2% Load Regulation
- Internal Thermal and Current Limiting
- Adjustable or Fixed Output Voltage(1.5V, 1.8V, 2.5V, 3.3V, 5.0V)
- Surface Mount Package TO-263 3LD & TO-252 3L
- 100% Thermal Limit Burn-in
- Low Dropout Voltage 1.5V at 3A Output Current
- Moisture Sensitivity Level 3
