HTCDatasheet (PDF)

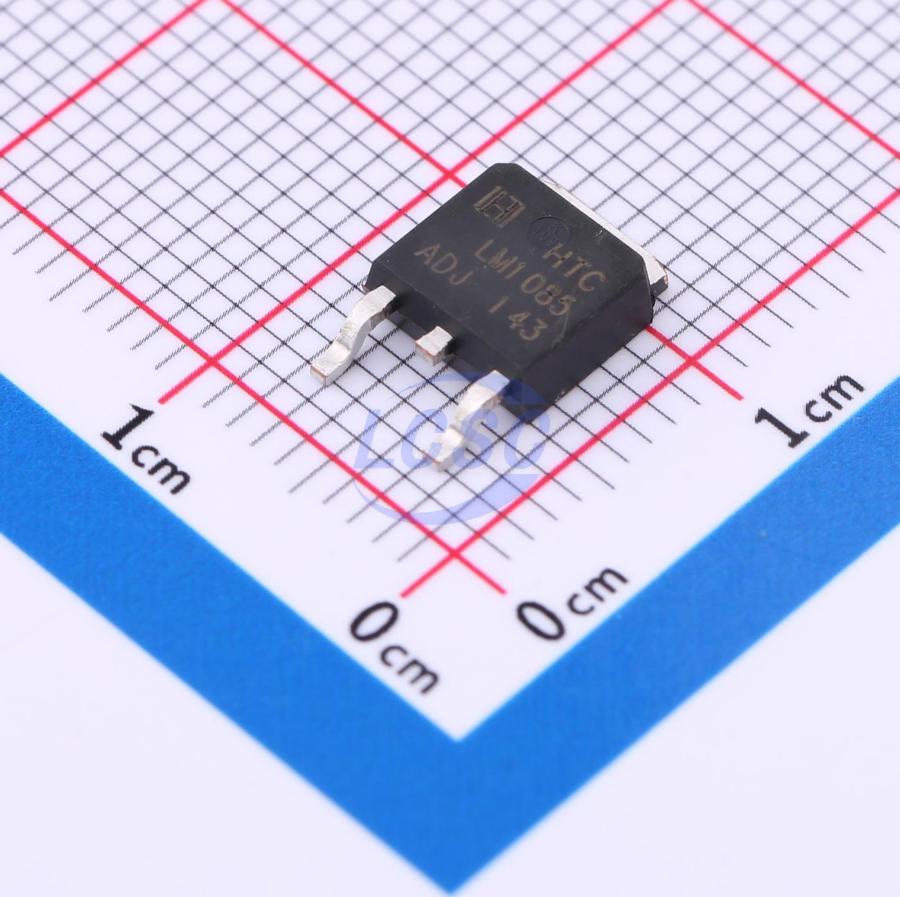

LM1085RS-ADJ
Positive Adjustable TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-3ROHS CompliantActive
3.0A LDO Voltage Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM1085RS-ADJ
- Store part #
- C2916128
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,080 in stock
#C2916128
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.63 | ₹50.63 |
| 10+ | ₹44.33 | ₹443.30 |
| 30+ | ₹41.52 | ₹1,245.60 |
| 100+ | ₹38.04 | ₹3,804.00 |
| 500+ | ₹34.77 | ₹17,385.00 |
| 1,000+ | ₹33.91 | ₹33,910.00 |
1 × ₹50.63
₹50.63
excl. GST
₹59.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1085RS-ADJ
₹50.63 for 1 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 15V
- Output Type
- Adjustable
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.498 g
Overview
The LM1085 series are a low dropout three terminal positive voltage regulators with 3.0A output current capability. The output voltage is adjustable with the use of a resistor divider. Dropout is guaranteed at a maximum of 1.5V at maximum output current. Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications. Internal current and thermal limiting provides protection against any overload condition that would create excessive junction temperature.
Applications
- Battery Charger
- Adjustable Power Supplies
- Constant Current Regulators
- Portable Instrumentation
- High Efficiency Linear Power Supplies
- High Efficiency "Green" Computer Systems
- SMPS Post-Regulator
- Power PC Supplies
- Powering VGA & Sound Card
Key features
- Output Current of 3.0A
- Fast Transient Response
- Excellent Line and Load Regulation
- Internal Thermal and Current Limiting
- Adjustable or Fixed Output Voltage (1.5V, 1.8V, 2.5V, 3.3V, and 5.0V)
- Surface Mount Package TO252-3LD & TO-263-3LD
- Low Dropout Voltage 1.5V at 3.0A Output Current
- Moisture Sensitivity Level 3
