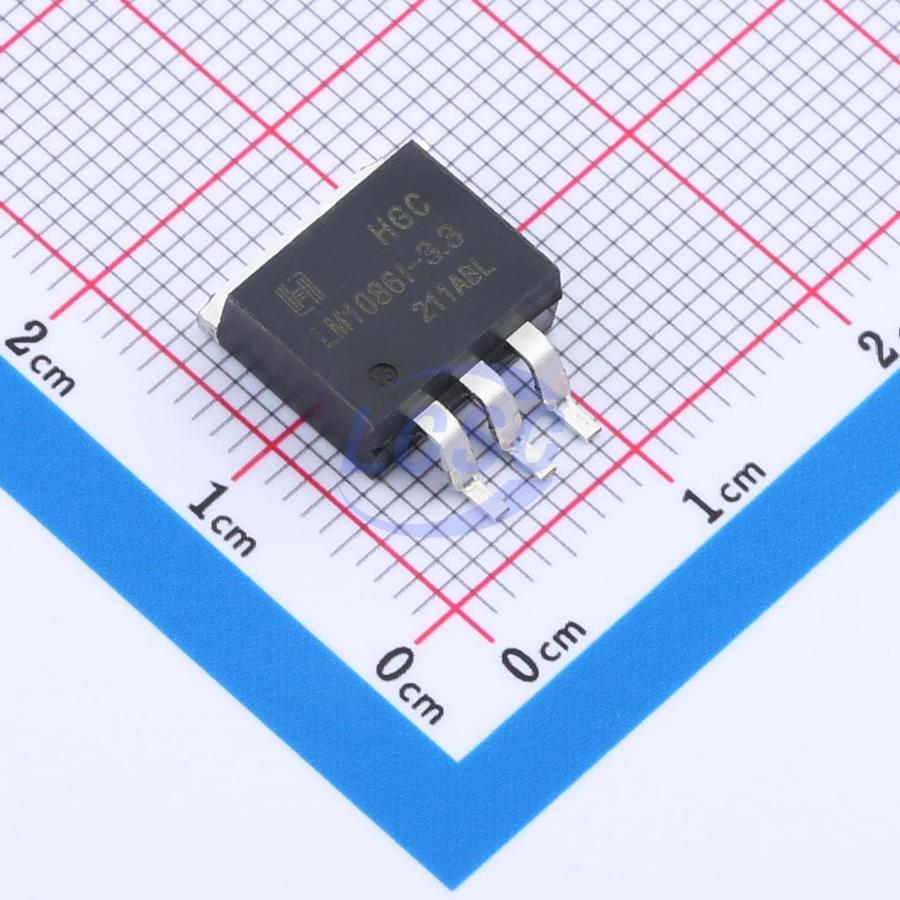

LM1086IS-3.3RG
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-263-3
TO-263-3ROHS CompliantActive
1.5A LDO regulator circuit
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM1086IS-3.3RG
- Store part #
- C5145331
- Package / case
- TO-263-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,335 in stock
#C5145331
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.53 | ₹182.65 |
| 50+ | ₹28.88 | ₹1,444.00 |
| 150+ | ₹25.60 | ₹3,840.00 |
| 500+ | ₹20.60 | ₹10,300.00 |
| 2,500+ | ₹18.79 | ₹46,975.00 |
| 5,000+ | ₹17.69 | ₹88,450.00 |
5 × ₹36.53
₹182.65
excl. GST
₹215.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per reel
LM1086IS-3.3RG
₹182.65 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1.5A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.31 g
Overview
The LM1086 is a positive-voltage low-dropout three-terminal linear regulator with a 1.2V dropout voltage at 1.5A output current. The device is available in two versions: fixed voltage output and adjustable voltage output. Fixed output voltages are 3.3V and 5.0V. The adjustable version offers 1% output voltage accuracy, while the fixed voltage version offers 2% accuracy. The device integrates overtemperature protection and current limiting circuits.
Applications
- Portable computing devices
- Battery chargers
- SCSI-II active terminators
- Mobile phones
- Cordless phones
- Battery-powered systems
- Portable devices
- Post-regulator for switching power supplies
Key features
- Fixed output voltages: 3.3V and 5.0V; adjustable output version available
- Adjustable version output voltage accuracy: 1%
- Fixed voltage version output voltage accuracy: 2%
- Low dropout: only 1.2V at 1.5A output current
- Current limiting protection
- Thermal shutdown protection
- Operating temperature range: -40℃ ~ 125℃
