HTCDatasheet (PDF)

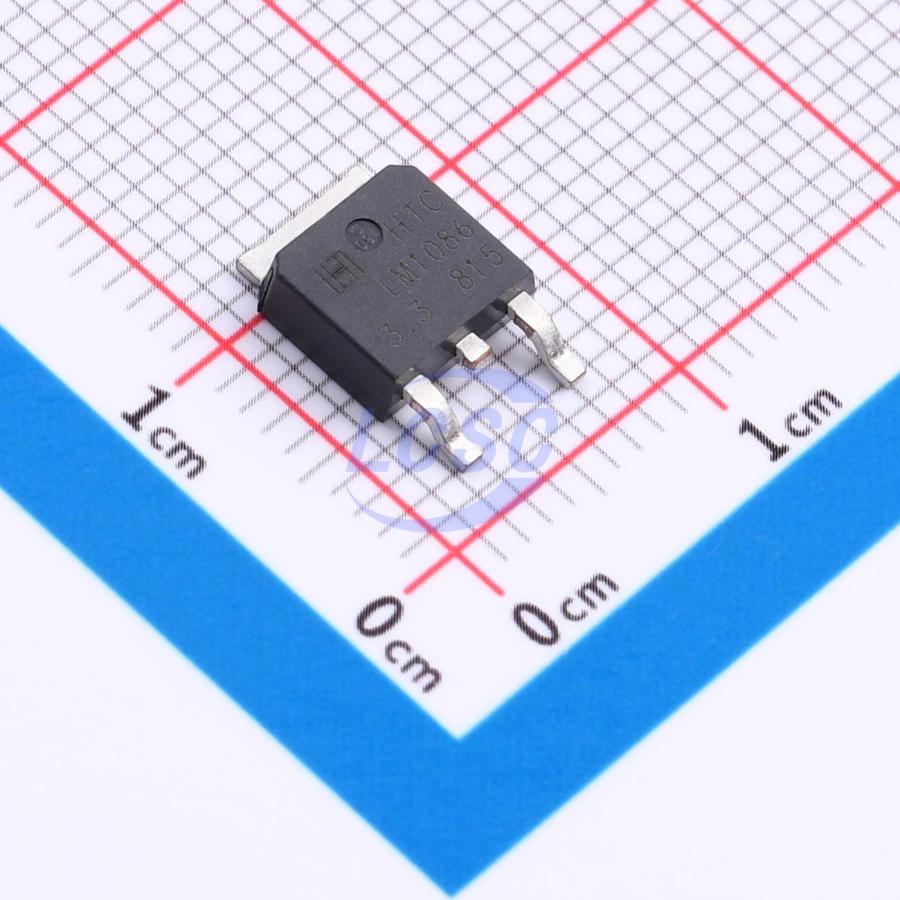

LM1086RS-3.3
3.3V Positive Fixed TO-252-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-3LRoHSActive
- Manufacturer
- HTC
- Manufacturer part #
- LM1086RS-3.3
- Store part #
- C7434828
- Package / case
- TO-252-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C7434828
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.28 | ₹52.28 |
| 10+ | ₹40.84 | ₹408.40 |
| 30+ | ₹35.87 | ₹1,076.10 |
| 100+ | ₹29.82 | ₹2,982.00 |
| 500+ | ₹27.02 | ₹13,510.00 |
| 1,000+ | ₹25.28 | ₹25,280.00 |
1 × ₹52.28
₹52.28
excl. GST
₹61.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1086RS-3.3
₹52.28 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1.5A
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
The LM1086 series is a low-dropout three-terminal positive voltage regulator with 1.5A output current capability. The output voltage is adjustable via a resistive voltage divider. At maximum output current, the dropout voltage is guaranteed to be no more than 1.5V. Its low dropout voltage and fast transient response make it ideal for low-voltage microprocessor applications. Internal current limiting and thermal limiting protect against excessive junction temperatures under overload conditions.
Applications
- Battery chargers
- Adjustable power supplies
- Constant-current regulators
- Portable instruments
- High-efficiency linear power supplies
Key features
- Output current 1.5A
- Fast transient response
- Excellent line and load regulation
- Internal thermal and current limiting
- Adjustable or fixed output voltage (1.5V, 1.8V, 2.5V, 3.3V, and 5.0V)
- Surface mount packages TO252-3LD and TO-263-3LD
- Low dropout voltage, 1.5V at 1.5A output current
- Moisture sensitivity level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1085RS-3.3#C22650825HTC · TO-252-3L | HTC | TO-252-3L | 2,435 | ₹64.38 · 2,435 in stock | View |
 | LM1084RS-3.3#C7434827HTC · TO-252-3L | HTC | TO-252-3L | 749 | ₹66.56 · 749 in stock | View |
 | BL1084-33-CY#C167251BL · TO-252-2(DPAK) | BL | TO-252-2(DPAK) | 4,410 | ₹29.40 · 4,410 in stock | View |
 | UZ1085L-33-TN3-R#C125622UTC · TO-252-2(DPAK) | UTC | TO-252-2(DPAK) | 14,785 | ₹26.66 · 14,785 in stock | View |
 | LD1086DT33TR#C12051ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 6,926 | ₹175.19 · 6,926 in stock | View |
