HTCDatasheet (PDF)

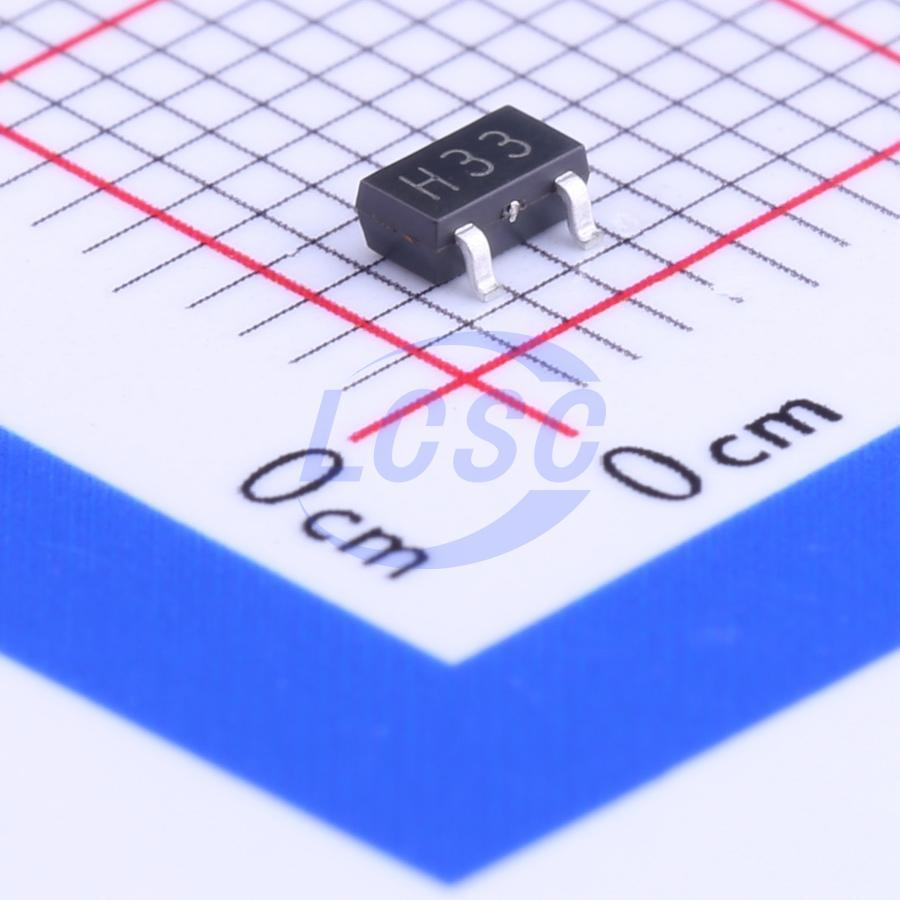

LM1108SF-3.3
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
300mA CMOS L.D.O. Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM1108SF-3.3
- Store part #
- C126018
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C126018
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.81 | ₹129.05 |
| 50+ | ₹21.90 | ₹1,095.00 |
| 150+ | ₹19.95 | ₹2,992.50 |
| 500+ | ₹18.48 | ₹9,240.00 |
| 3,000+ | ₹15.27 | ₹45,810.00 |
| 6,000+ | ₹14.69 | ₹88,140.00 |
5 × ₹25.81
₹129.05
excl. GST
₹152.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM1108SF-3.3
₹129.05 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The LM1108 is a fixed output, high accuracy(typically ±0.5%) CMOS low drop-out regulator. Total supply current is typically 50μA at full load (20 to 60 times lower than in bipolar regulators). LM1108 key features include ultra low noise operation, very low dropout voltage (typically 240mV at full load), and fast response to step changes in load. The LM1108 incorporates both over temperature and over current protection. The LM1108 is stable with an output capacitor of only 1µF and has a maximum output current of 300mA. It is available in a SOT - 23 & SOT - 89 package
Applications
- Battery Operated Systems
- Portable Computers
- Portable Cameras and Video Recorders
- Medical Instruments
- Instrumentation
- Cellular/GSM/PHS Phones
- Linear Post - Regulators for SMPS
- Pagers
Key features
- Extremely Low Supply Current( 50μA ,Typ.)
- Very Low Dropout Voltage
- 300mA Output Current
- Compatible with MLCC
- High Output Voltage Accuracy +/- 1.4 %
- Standard or Custom Output Voltages
- Over Current and Over Temperature Protection
- Small input/output differential : 0.3V for full load
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ9650M33SC#C41348040PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 50 | ₹10.60 · 50 in stock | View |
 | PJ9650M33SA#C45406553PJSEMI · SOT-23 | PJSEMI | SOT-23 | 375 | ₹10.37 · 375 in stock | View |
 | SL9650M33SA#C7543311Slkor · SOT-23 | Slkor | SOT-23 | 1,870 | ₹9.06 · 1,870 in stock | View |
 | HMCP1703T-3302E/CB#C41381862HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 10 | ₹41.98 · 10 in stock | View |
 | PJ73AL33SA#C45406567PJSEMI · SOT-23 | PJSEMI | SOT-23 | 205 | ₹10.86 · 205 in stock | View |
