HTCDatasheet (PDF)

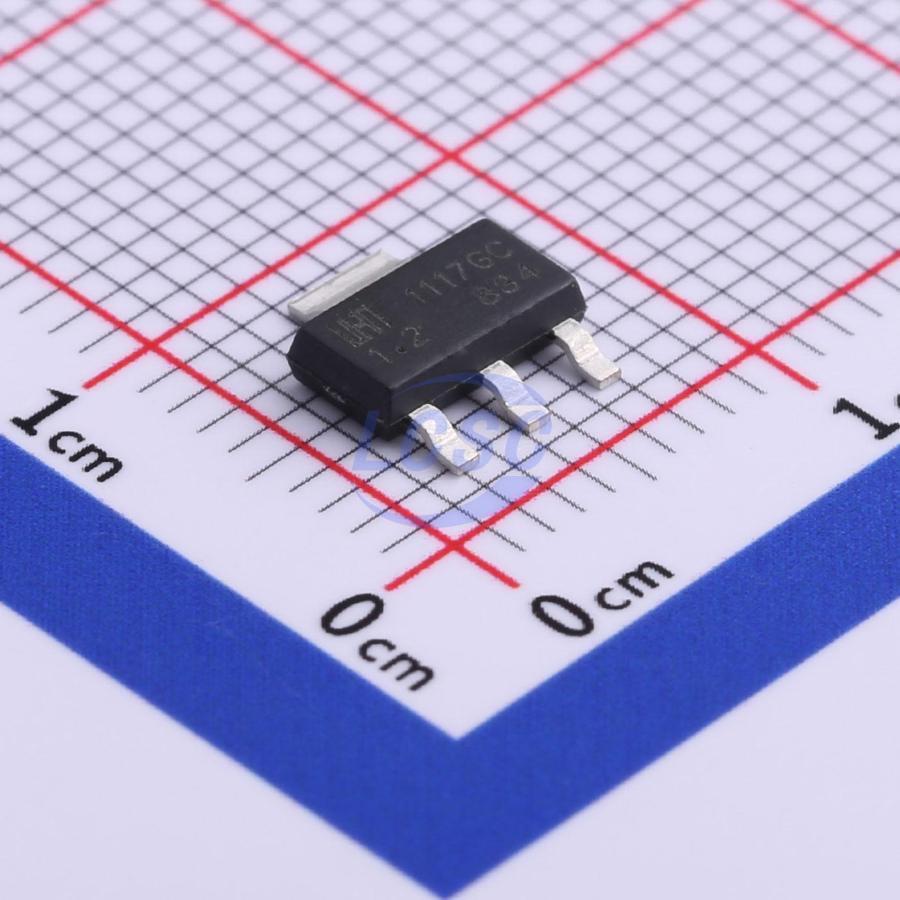

LM1117GS-1.2
1.2V Positive Fixed SOT-223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3LROHS CompliantActive
1A LDO Voltage Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM1117GS-1.2
- Store part #
- C596349
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,755 in stock
#C596349
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.13 | ₹105.65 |
| 50+ | ₹16.62 | ₹831.00 |
| 150+ | ₹14.69 | ₹2,203.50 |
| 500+ | ₹12.28 | ₹6,140.00 |
| 2,500+ | ₹11.21 | ₹28,025.00 |
| 5,000+ | ₹10.56 | ₹52,800.00 |
5 × ₹21.13
₹105.65
excl. GST
₹124.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117GS-1.2
₹105.65 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
The LM1117GS is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117GS features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117GS is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117GS is offered in a 3-pin surface mount package SOT-223-3L. The output capacitor of 10μF or larger is needed for output stability of LM1117GS as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers
- High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives Battery Chargers
Key features
- Output Current up to 1A
- Dropout Voltage is 1.2V at Output current
- Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Thermal Protection
- Surface Mount Package SOT-223-3L
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-1.2#C5250987TWGMC · SOT-223-3L | TWGMC | SOT-223-3L | 2,740 | ₹7.71 · 2,740 in stock | View |
 | AMS1117-1.2#C963402JSMSEMI · SOT-223-3 | JSMSEMI | SOT-223-3 | 2,280 | ₹10.24 · 2,280 in stock | View |
 | MC33269MP-1.2/TR#C46614064HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,500 | ₹17.08 · 2,500 in stock | View |
 | AMS1117-1.2#C49274351GOODWORK · SOT-223 | GOODWORK | SOT-223 | 4,590 | ₹6.09 · 4,590 in stock | View |
 | AMS1117-1.2#C2931369WPMtek · SOT-223-4 | WPMtek | SOT-223-4 | 2,490 | ₹9.51 · 2,490 in stock | View |
