HTCDatasheet (PDF)

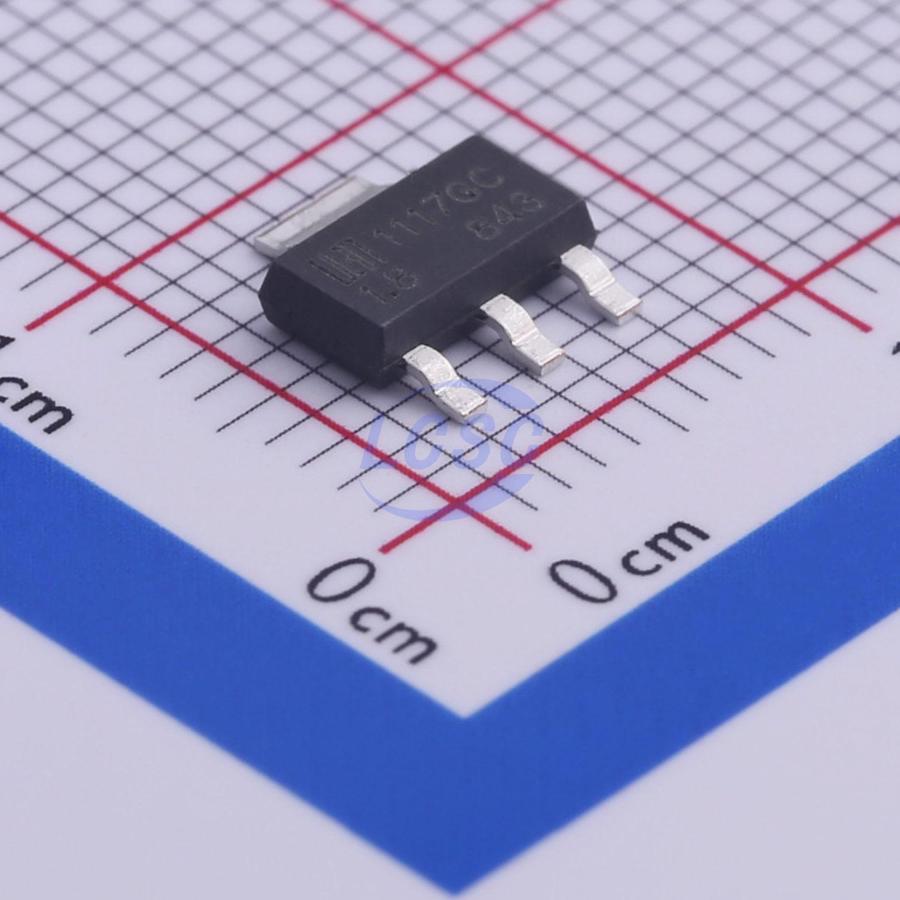

LM1117GS-1.8
1.8V Positive Fixed SOT-223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3LROHS CompliantActive
1A L.D.O VOLTAGE REGULATOR
- Manufacturer
- HTC
- Manufacturer part #
- LM1117GS-1.8
- Store part #
- C465008
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,970 in stock
#C465008
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.98 | ₹104.90 |
| 50+ | ₹16.51 | ₹825.50 |
| 150+ | ₹14.59 | ₹2,188.50 |
| 500+ | ₹12.20 | ₹6,100.00 |
| 2,500+ | ₹11.14 | ₹27,850.00 |
| 5,000+ | ₹10.49 | ₹52,450.00 |
5 × ₹20.98
₹104.90
excl. GST
₹123.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117GS-1.8
₹104.90 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
The LM1117GS is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117GS features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117GS is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117GS is offered in a 3-pin surface mount package SOT-223-3L. The output capacitor of 10μF or larger is needed for output stability of LM1117GS as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers
- High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives
- Battery Chargers
Key features
- Output Current up to 1A
- Dropout Voltage is 1.2V at Output current
- Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Thermal Protection
- Surface Mount Package SOT-223-3L
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117AG-18-AA3-A-R#C71122UTC · SOT-223-4 | UTC | SOT-223-4 | 105 | ₹10.77 · 105 in stock | View |
 | AMS1117-1.8RG#C2977153HANSCHIP semiconductor · SOT-223 | HANSCHIP semiconductor | SOT-223 | 1,460 | ₹7.57 · 1,460 in stock | View |
 | CJT1117B-1.8#C2961228JSCJ · SOT-223 | JSCJ | SOT-223 | 2,400 | ₹8.59 · 2,400 in stock | View |
 | LM1117S-1.8#C126026HTC · SOT-223-3 | HTC | SOT-223-3 | 1,115 | ₹28.03 · 1,115 in stock | View |
 | AMS1117-1.8#C6185Advanced Monolithic Systems · SOT-223 | Advanced Monolithic Systems | SOT-223 | 10,395 | ₹31.41 · 10,395 in stock | View |
