HXY MOSFETDatasheet (PDF)

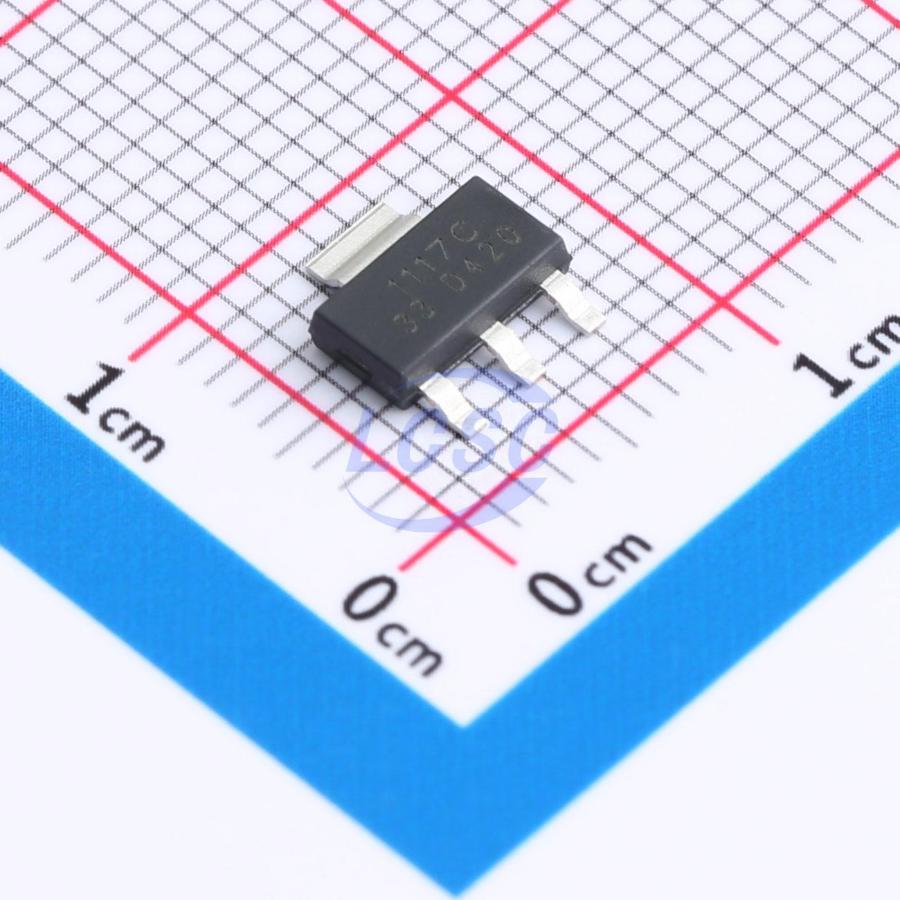

LM1117IMP-3.3/NOPB-HXY
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
800mA Bipolar Linear Regulator
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- LM1117IMP-3.3/NOPB-HXY
- Store part #
- C42411820
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,260 in stock
#C42411820
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.39 | ₹81.95 |
| 50+ | ₹12.95 | ₹647.50 |
| 150+ | ₹11.25 | ₹1,687.50 |
| 500+ | ₹9.95 | ₹4,975.00 |
| 2,500+ | ₹8.93 | ₹22,325.00 |
| 5,000+ | ₹8.41 | ₹42,050.00 |
5 × ₹16.39
₹81.95
excl. GST
₹96.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117IMP-3.3/NOPB-HXY
₹81.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
The LM1117IMP-xx/NOPB series is a low-dropout three-terminal linear regulator with a 1.3V dropout voltage at 800mA load current. Its standby current is extremely low at only 2mA, compared to 5mA for competing devices. In addition to fixed output voltage versions (1.2V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), an adjustable version is available, providing 1.25V to 12V output voltage with only two external resistors. The series features thermal shutdown to ensure stability of the IC and power system, and employs trimming technology to guarantee output voltage accuracy within 2%. Other accuracy grades (such as 1%) are available upon request. The device is available in a SOT-223 power package.
Applications
- Computer motherboards and graphics cards
- LCD monitors and televisions
- DVD decoder boards
- ADSL modems
- Post-stage regulators for switching power supplies
Key features
- Maximum output current: 0.8A
- Input voltage range: 15V max
- Line regulation: 0.03%/V (typ.)
- Standby current: 2mA (typ.)
- Load regulation: 0.2%/A (typ.)
- Ambient temperature: -20°C ~ 85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV1117-33IDCYR-HXY#C42411812HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 2,185 | ₹21.91 · 2,185 in stock | View |
 | REG1117-3.3-HXY#C42411814HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 2,660 | ₹157.93 · 2,660 in stock | View |
 | LM1117IMPX-3.3/NOPB-HXY#C42411819HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 2,455 | ₹22.33 · 2,455 in stock | View |
 | LD1117S33CTR-HXY#C42411825HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 3,870 | ₹10.81 · 3,870 in stock | View |
 | LD1117S33TR-HXY#C42411824HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 245 | ₹11.31 · 245 in stock | View |
