TDSEMICDatasheet (PDF)

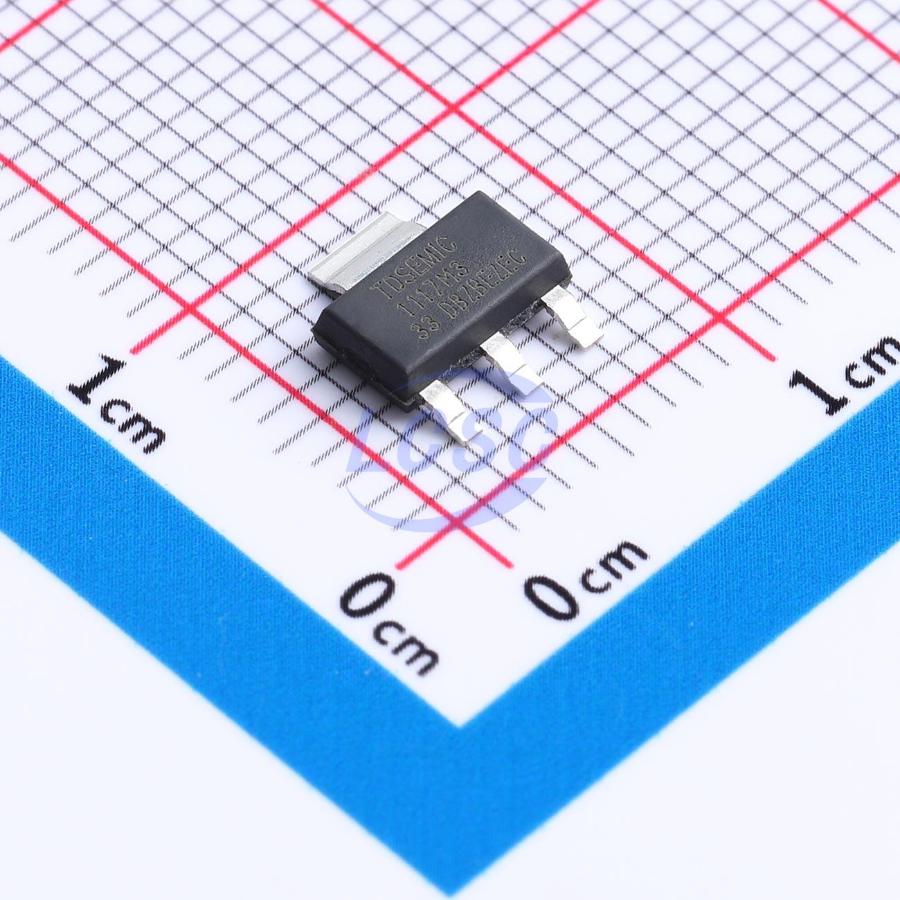

LM1117IMP-3.3-TD
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- LM1117IMP-3.3-TD
- Store part #
- C50675572
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,010 in stock
#C50675572
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.19 | ₹80.95 |
| 50+ | ₹12.82 | ₹641.00 |
| 150+ | ₹11.13 | ₹1,669.50 |
| 500+ | ₹9.86 | ₹4,930.00 |
| 2,500+ | ₹8.85 | ₹22,125.00 |
| 5,000+ | ₹8.33 | ₹41,650.00 |
5 × ₹16.19
₹80.95
excl. GST
₹95.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117IMP-3.3-TD
₹80.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 1A
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.146 g
Overview
The LM1117IMP series is a low dropout linear regulator with an output current capability of 1.0A. The series includes both fixed output voltage and adjustable output voltage versions, with an output voltage accuracy of ±1.5%. To ensure device and system stability, the series incorporates built-in thermal protection and current limiting protection, and employs trimming techniques to control output voltage accuracy within ±1.5%. The product is available in SOT223, TO252-2, TO220-3, TO263-3, and SOT89-3 packages.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Switching power supply post-stage voltage regulators
Key features
- Adjustable output voltage: 1.25V to 13.8V, requiring only two external resistors
- Fixed voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5.0V
- Output current capability: 1.0A
- Output voltage accuracy: ±1.5%
- Maximum operating voltage: 15V
- Line regulation: <0.2%, load regulation: <0.4%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPX1117M3-L-3.3/TR-TD#C42422081TDSEMIC · SOT-223 | TDSEMIC | SOT-223 | 2,870 | ₹9.98 · 2,870 in stock | View |
