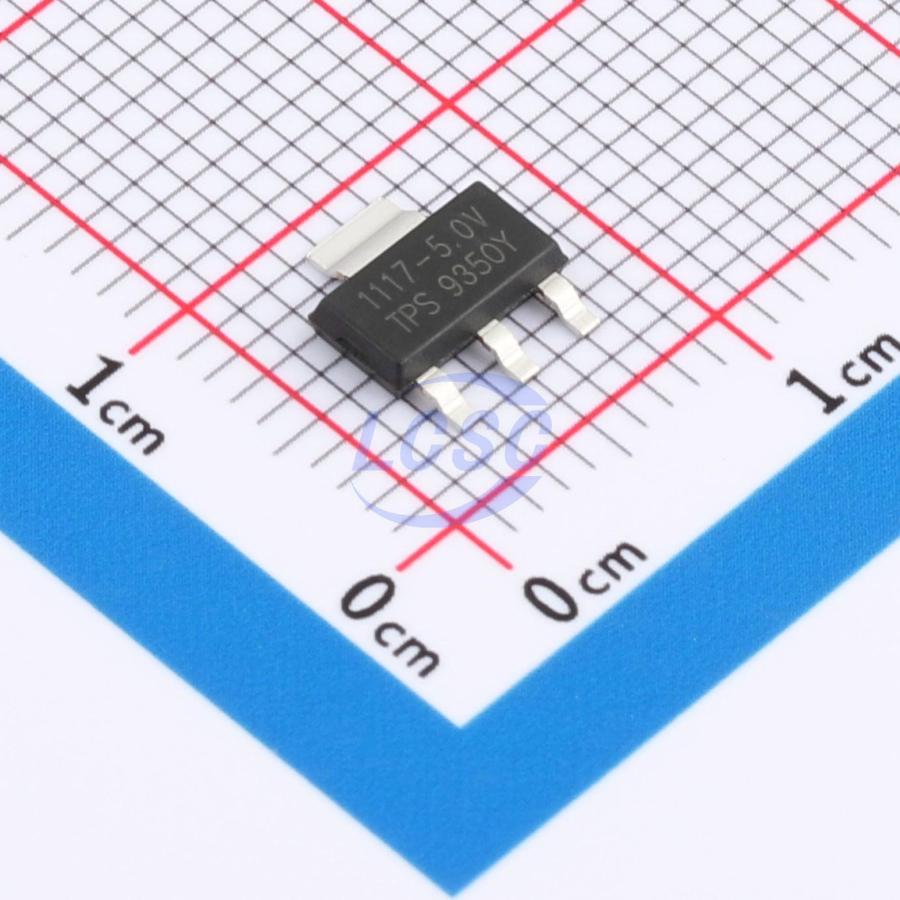

LM1117MPX-5.0-TP
5V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223-3RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM1117MPX-5.0-TP
- Store part #
- C52146070
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,790 in stock
#C52146070
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 1,000+ | ₹3.85 | ₹3,850.00 |
| 4,000+ | ₹3.44 | ₹13,760.00 |
| 8,000+ | ₹3.23 | ₹25,840.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM1117MPX-5.0-TP
₹64.20 for 10 + GST
Specifications
- Output Voltage
- 5V
- Operating Temperature
- -50℃~+140℃
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
Applications
- High-efficiency linear regulator
- Post-regulator for switching DC/DC converters
- Motherboard and graphics card power management
- SCSI-2 active termination
- Battery charger
Key features
- 1A maximum output current
- Adjustable or fixed 3-terminal output
- 18V maximum input voltage
- Fast transient response
- Current limiting, safe operating area, and thermal shutdown protection
- Line regulation: 0.2%
- Load regulation: 0.4%
- Ambient temperature: −50℃ ~ +140℃
- Available in SOT223-3 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTLV1117-50IDCYR#C52146077TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 3,880 | ₹6.38 · 3,880 in stock | View |
 | TPSPX1117M3-L-5-0#C52146081TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 3,110 | ₹6.38 · 3,110 in stock | View |
| LM340MPX-5.0-TP#C41348208TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,420 | ₹50.63 · 2,420 in stock | View | |
 | LM7805MPX-TP#C41348209TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,184 | ₹78.14 · 2,184 in stock | View |
 | TP7805Y3#C48543233TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 241 | ₹93.59 · 241 in stock | View |
