HTCDatasheet (PDF)

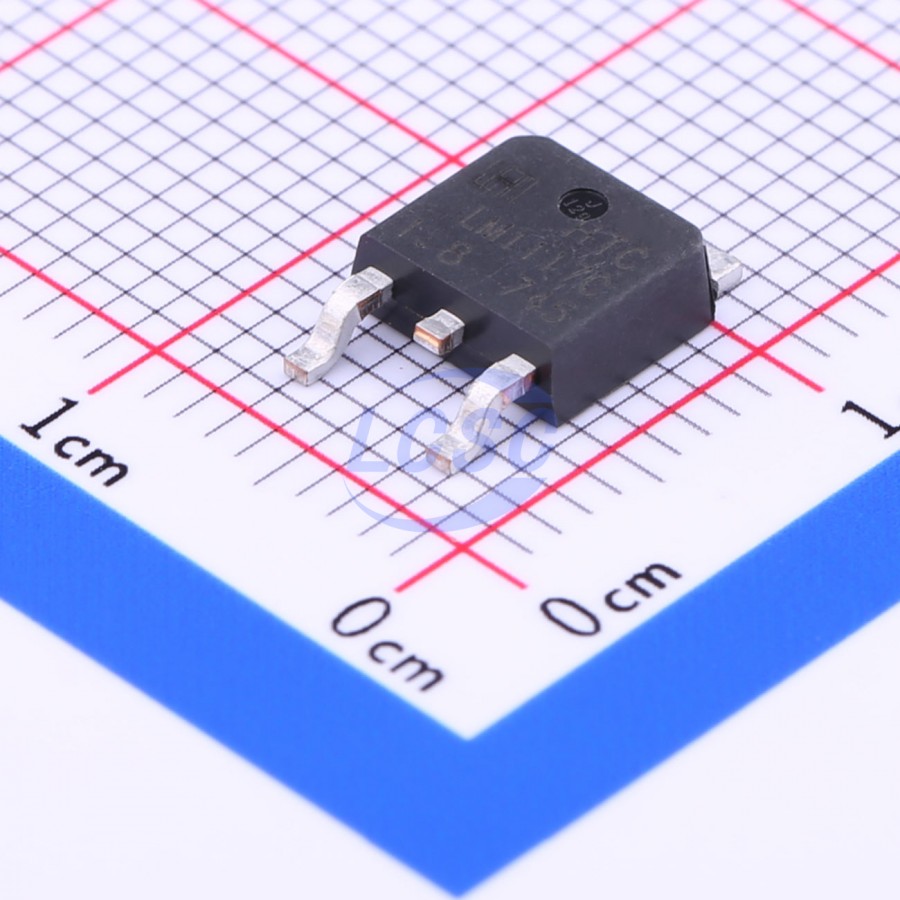

LM1117RS-1.8
1.8V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS CompliantActive
1A Low Dropout (LDO) Voltage Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM1117RS-1.8
- Store part #
- C262793
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C262793
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.61 | ₹198.05 |
| 50+ | ₹31.41 | ₹1,570.50 |
| 150+ | ₹27.89 | ₹4,183.50 |
| 500+ | ₹23.50 | ₹11,750.00 |
| 2,500+ | ₹21.55 | ₹53,875.00 |
| 5,000+ | ₹20.37 | ₹1,01,850.00 |
5 × ₹39.61
₹198.05
excl. GST
₹233.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117RS-1.8
₹198.05 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.463 g
Overview
The LM1117 is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117 features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117 is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117 is offered in a 3-pin surface mount package SOT-223, TO-252 & SOT-89. The output capacitor of 10μF or larger is needed for output stability of LM1117 as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives
- Battery Chargers
Key features
- Output Current up to 1A
- Low Dropout Voltage (1.2V at 1A Output current)
- Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Terminal Protection
- Maximum Input Voltage 20V
- Surface Mount Package SOT-223, TO-252, SOT-89
- 100% Thermal Limit Burn-In
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117CD-1.8(UMW)#C19270108UMW · TO-252 | UMW | TO-252 | 505 | ₹11.25 · 505 in stock | View |
 | NCP1117DT18RKG#C232663onsemi · TO-252-2(DPAK) | onsemi | TO-252-2(DPAK) | 2,330 | ₹26.74 · 2,330 in stock | View |
 | MC33269DT-1.8/TR#C49021834HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 2,480 | ₹18.80 · 2,480 in stock | View |
 | AMS1117CD-1.8#C841795Advanced Monolithic Systems · TO-252 | Advanced Monolithic Systems | TO-252 | 5 | ₹71.92 · 5 in stock | View |
 | NCV1117DT18RKG#C603857onsemi · DPAK | onsemi | DPAK | 2 | ₹90.86 · 2 in stock | View |
