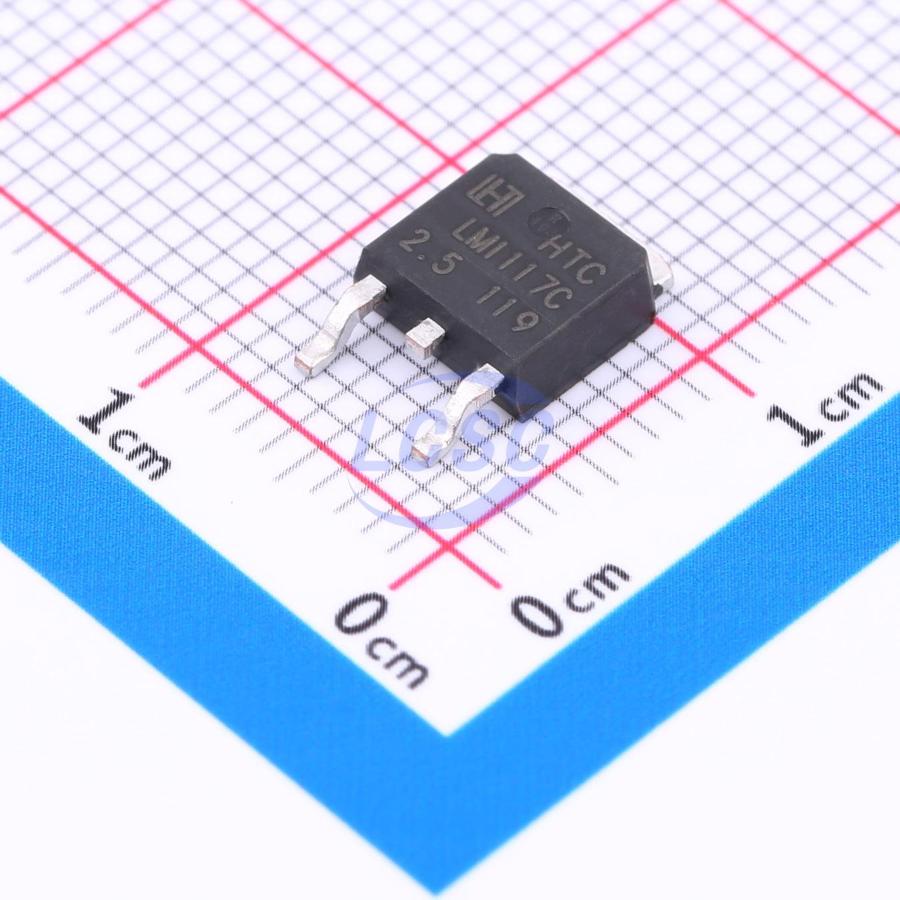

LM1117RS-2.5
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252
TO-252ROHS CompliantActive
1A LDO Voltage Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM1117RS-2.5
- Store part #
- C5279969
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C5279969
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.58 | ₹132.90 |
| 50+ | ₹23.25 | ₹1,162.50 |
| 150+ | ₹21.82 | ₹3,273.00 |
| 500+ | ₹20.03 | ₹10,015.00 |
| 2,500+ | ₹19.24 | ₹48,100.00 |
| 5,000+ | ₹18.76 | ₹93,800.00 |
5 × ₹26.58
₹132.90
excl. GST
₹156.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117RS-2.5
₹132.90 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.49 g
Overview
The LM1117 is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117 features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117 is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117 is offered in a 3-pin surface mount package SOT-223, TO-252 & SOT-89. The output capacitor of 10μF or larger is needed for output stability of LM1117 as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives Battery Chargers
Key features
- Output Current up to 1.0A
- Low Dropout Voltage (1.2V at 1.0A Output current)
- Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Thermal Protection
- Maximum Input Voltage 20V
- Surface Mount Package SOT-223, TO-252, and SOT-89
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL1117-25CY#C177779BL · TO-252-2(DPAK) | BL | TO-252-2(DPAK) | 2,495 | ₹15.36 · 2,495 in stock | View |
 | AZ1117D-2.5TRE1#C460432DIODES · TO-252-2 | DIODES | TO-252-2 | 120 | ₹11.05 · 120 in stock | View |
 | NCV1117DT25RKG#C463600onsemi · DPAK | onsemi | DPAK | 1 | ₹172.74 · 1 in stock | View |
| LP38690DTX-2.5/NOPB#C2872229TI · TO-252-3 | TI | TO-252-3 | 8 | ₹281.49 · 8 in stock | View | |
 | LP38690DT-2.5/NOPB#C2872481TI · TO-252-3 | TI | TO-252-3 | 3 | ₹636.02 · 3 in stock | View |
