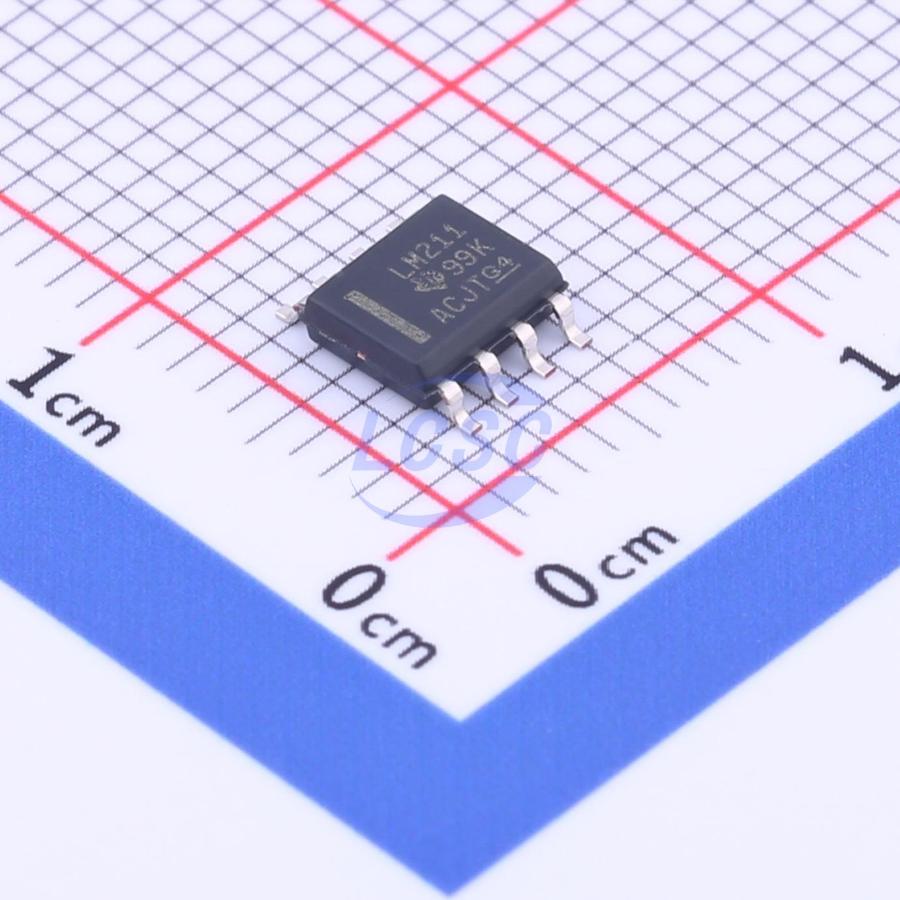

LM211DR
1 6mA 700uV SOIC-8 Comparators RoHS
Differential Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM211DR
- Store part #
- C962955
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,590 in stock
#C962955
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.81 | ₹174.05 |
| 50+ | ₹26.98 | ₹1,349.00 |
| 150+ | ₹23.63 | ₹3,544.50 |
| 500+ | ₹19.45 | ₹9,725.00 |
| 2,500+ | ₹17.58 | ₹43,950.00 |
| 5,000+ | ₹16.46 | ₹82,300.00 |
5 × ₹34.81
₹174.05
excl. GST
₹205.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM211DR
₹174.05 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 10nA
- Output Mode
- CMOS;TTL
- Operating Temperature
- -40℃~+85℃
- Features
- Enable/shutdown function;Offset voltage nulling
- Dual Supply
- ±15V
- Ib - Input Bias Current
- 75nA
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 165ns
- Quiescent Current(Iq)
- 6mA
- Vos - Input Offset Voltage
- 700uV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 3.5V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.116 g
Overview
The LM111, LM211, and LM311 devices are single high- speed voltage comparators. These devices are designed to operate from a wide range of power- supply voltages, including ±15- V supplies for operational amplifiers and 5- V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC-. Offset balancing and strobe capabilities are available, and the outputs can be wire- OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.
Applications
- Desktop PCs
- Body Control Modules
- White Goods
- Building Automation
- Oscillators
- Peak Detectors
Key features
- Fast Response Time: 165 ns
- Strobe Capability
- Maximum Input Bias Current: 300 nA
- Maximum Input Offset Current: 70 nA
- Can Operate From Single 5- V Supply
- Available in Q- Temp Automotive
- High- Reliability Automotive Applications
- Configuration Control and Print Support
- Qualification to Automotive Standards
