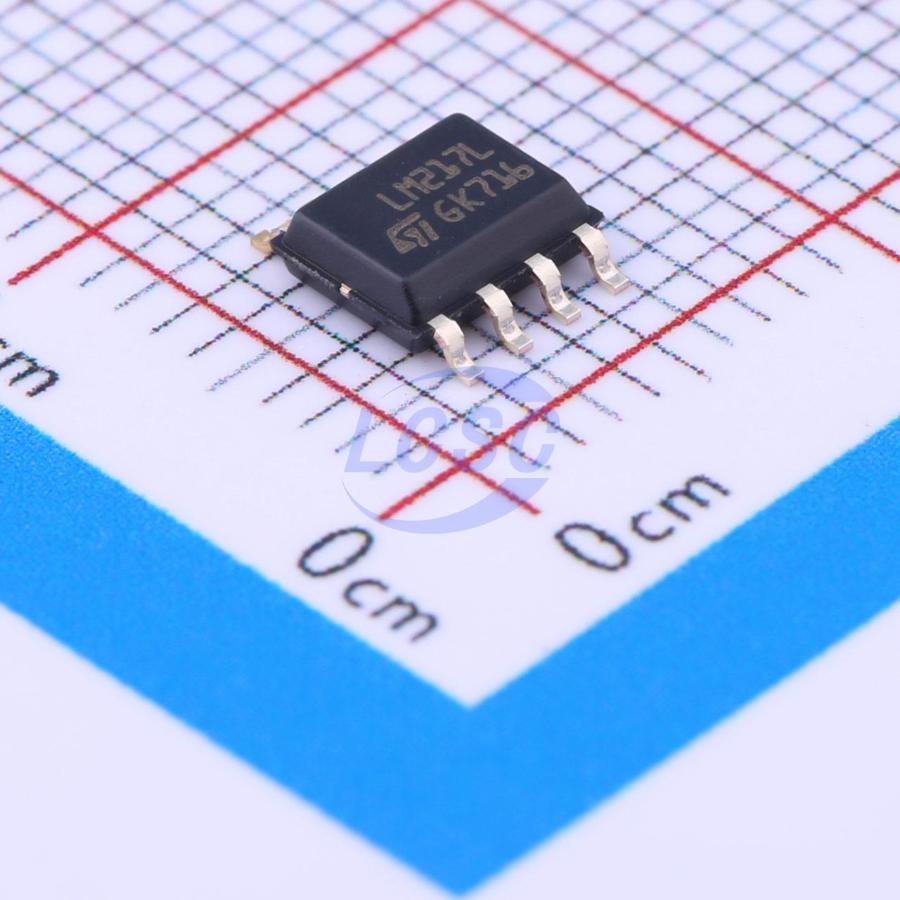

LM217LD13TR
1.2V~37V Positive Adjustable SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
Low current 1.2 to 37 V adjustable voltage regulators
- Manufacturer
- ST
- Manufacturer part #
- LM217LD13TR
- Store part #
- C7925
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C7925
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.71 | ₹108.55 |
| 50+ | ₹17.11 | ₹855.50 |
| 150+ | ₹15.14 | ₹2,271.00 |
| 500+ | ₹12.67 | ₹6,335.00 |
| 2,500+ | ₹11.58 | ₹28,950.00 |
| 5,000+ | ₹10.91 | ₹54,550.00 |
5 × ₹21.71
₹108.55
excl. GST
₹128.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM217LD13TR
₹108.55 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The LM217L/LM317L are monolithic integrated circuits in SO-8 and TO-92 packages intended for use as positive adjustable voltage regulators. They are designed to supply up to 100 mA of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Key features
- Outuput voltage range: 1.2 to 37 V
- Outuput current in excess of 100 mA
- Output current up to 100 mA
- Line regulation typ. 0.01% Load regulation typ. 0.1%
- Thermal overload protection
- Short-circuit protection Output transition safe area compensation
- Floating operation for high voltage applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317LM/TR#C434493HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,595 | ₹15.31 · 1,595 in stock | View |
 | LM317LM/NOPB#C2867749TI · SOIC-8 | TI | SOIC-8 | 86 | ₹82.79 · 86 in stock | View |
 | LM317LCDR-TP#C41407987TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 150 | ₹7.79 · 150 in stock | View |
 | LM317LD#C41407988TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,230 | ₹13.71 · 3,230 in stock | View |
 | LM317LDR2G-TP#C41407990TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 1,850 | ₹13.96 · 1,850 in stock | View |
