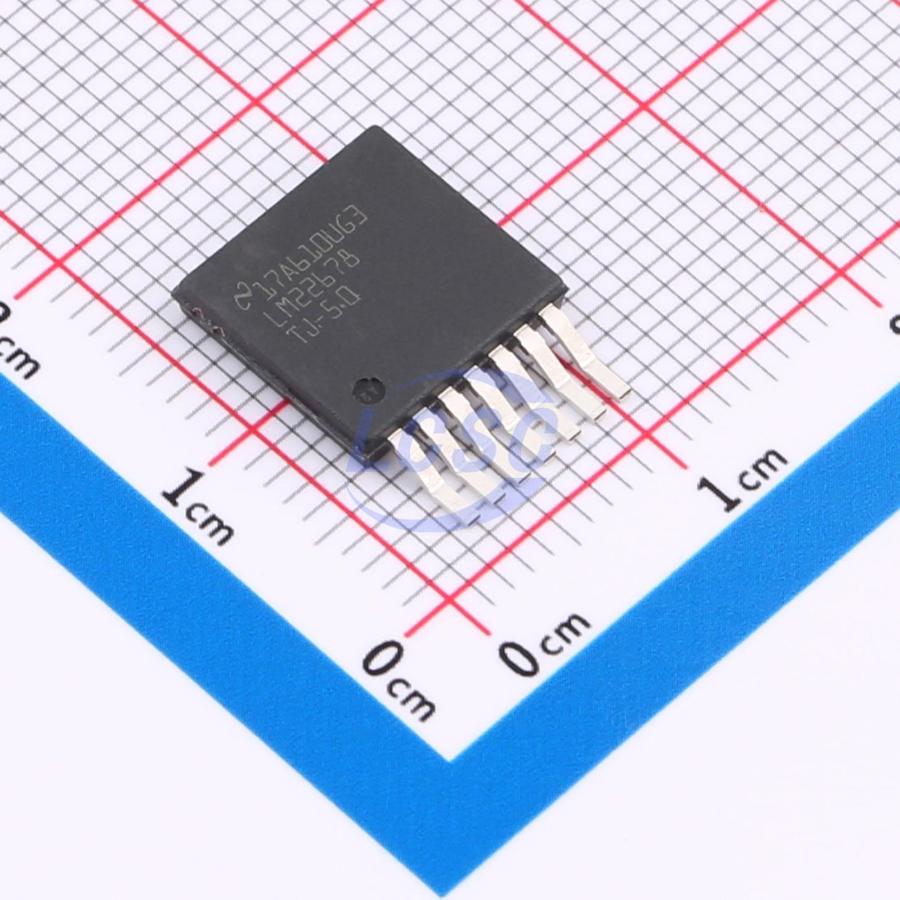

LM22678TJE-5.0/NOPB

The LM22678 switching regulator provides all of the functions necessary to implement an efficient high-voltage step-down (buck) regulator using a minimum of external components. This easy-to-use regulator incorporates a 42-V N-channel MOSFET switch that can provide up to 5 A of load current. Excellent line and load regulation along with high efficiency (>90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5-V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 μA (typical). Built-in soft-start (500 μs, typical) saves external components. The LM22678 device also has built-in thermal shutdown, and current limiting to protect against accidental overloads.

Applications

• Industrial Control
• Telecom and Datacom Systems
• Embedded Systems
• Conversions from Standard 24-V, 12-V and 5-V Input Rails

Key features

• Wide Input Voltage Range: 4.5 V to 42 V
• Internally Compensated Voltage Mode Control Stable With Low ESR Ceramic Capacitors
• 100 mΩ N-Channel MOSFET
• Output Voltage Options: -ADJ (Outputs as Low as 1.285 V), -5.0 (Output Fixed to 5 V)
• ±1.5% Feedback Reference Accuracy
• Switching Frequency of 500 kHz
• -40°C to 125°C Operating Junction Temperature Range
• Precision Enable Pin
• Integrated Boot-Strap Diode
• Integrated Soft-Start
• Fully WEBEN Γ(CH⊕ Enabled
• LM22678-Q1 is an Automotive-Grade Product that is AEC-Q100 Grade 1 Qualified (-40°C to +125°C Operating Junction Temperature)
• PFM (Exposed Pad) Package
