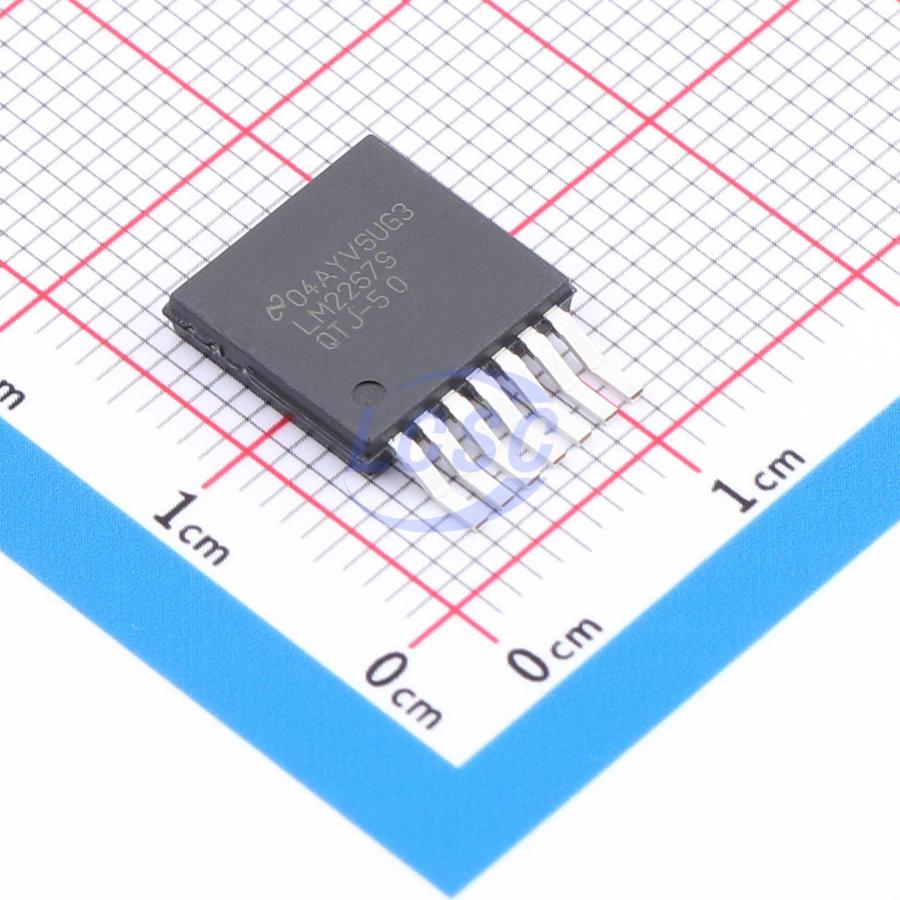

LM22679QTJ-5.0/NOPB

The LM22679 switching regulator provides all the functions needed to implement a highly efficient, high-voltage step-down regulator with minimal external components. This easy-to-use regulator integrates a 42V N-channel MOSFET switch capable of delivering up to 5A of load current, with excellent line and load regulation and high efficiency (>90%). Voltage-mode control provides a short minimum on-time, enabling the widest input-to-output voltage ratio. Internal loop compensation eliminates the tedious task of calculating loop compensation components. The regulator is available in both fixed 5V output and adjustable output voltage options. The 500kHz switching frequency enables the use of small external components and achieves good transient response. An adjustable soft-start feature can be implemented by selecting a single external capacitor. In addition, a single external resistor can be used to set the switching current limit, optimizing the solution. The LM22679 also incorporates thermal shutdown and current limiting to protect against accidental overload.

Applications

• Industrial distributed power applications
• Test and measurement
• Appliances
• General wide input voltage applications

Key features

• Wide input voltage range: 4.5V to 42V
• Internal compensation voltage mode control, stable operation with low ESR ceramic capacitors
• 100mΩ N-channel MOSFET
• Output voltage options: Adjustable (minimum output voltage 1.285V); 5.0 (fixed output voltage 5V)
• ±1.5% feedback reference voltage accuracy
• 500kHz switching frequency
• Operating junction temperature range: –40°C to 125°C
• Adjustable soft-start
• Adjustable current limit
• Integrated bootstrap diode
• Full WEBENCH support
• LM22679-Q1 manufactured using automotive-grade process, compliant with AEC-Q100
• PFM (exposed pad) package
