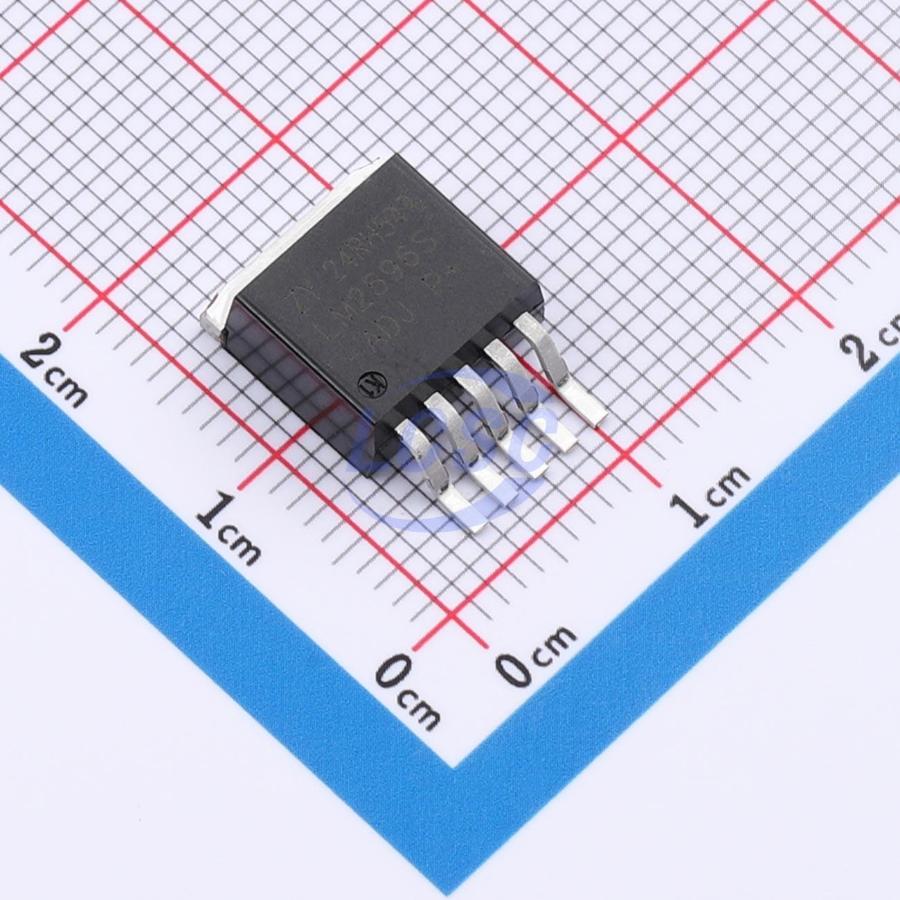

LM2596-ADJFW05ARHQ
150kHz Step-down type Adjustable 1.2V~37V 3A TO-263-5 Voltage Regulators - DC DC Switching Regulators
TO-263-5RoHSActive
- Manufacturer
- GR
- Manufacturer part #
- LM2596-ADJFW05ARHQ
- Store part #
- C49443605
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,210 in stock
#C49443605
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.70 | ₹253.50 |
| 50+ | ₹40.31 | ₹2,015.50 |
| 150+ | ₹35.87 | ₹5,380.50 |
| 800+ | ₹30.31 | ₹24,248.00 |
| 2,400+ | ₹27.84 | ₹66,816.00 |
| 4,800+ | ₹26.35 | ₹1,26,480.00 |
5 × ₹50.70
₹253.50
excl. GST
₹299.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
LM2596-ADJFW05ARHQ
₹253.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Number of Outputs
- 1
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.2V~37V
- Output Current
- 3A
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.56 g
Overview
The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed-frequency oscillator. The LM2596 series operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what can be required with lower frequency switching regulators.
Key features
- 3.3-V, 5-V, 12-V, and adjustable output versions
- Adjustable version output voltage range: 1.2-V to 37-V +4% maximum over line and load conditions
- 3-A output load current
- Input voltage range up to 40 V
- Requires only four external components
- Excellent line and load regulation specifications
- 150-kHz fixed-frequency internal oscillator
- TTL shutdown capability
- Low power standby mode, typically 80 μA
- High efficiency
- Uses readily available standard inductors
- Thermal shutdown and current-limit protection
