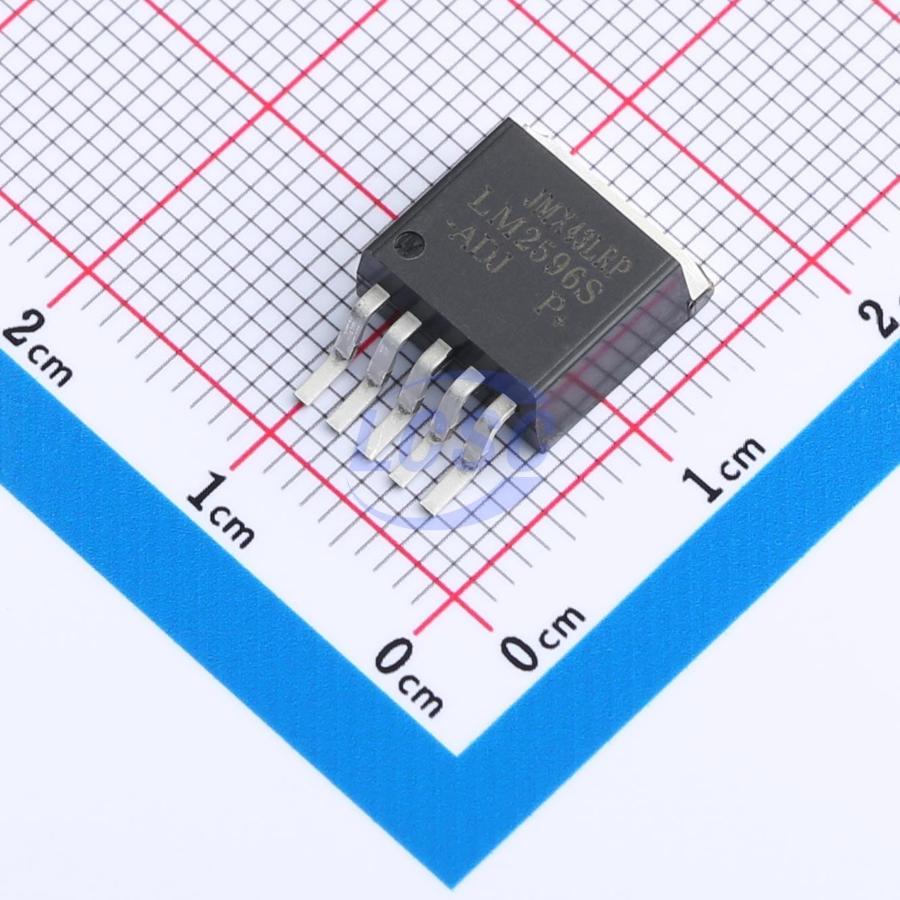

LM2596S-ADJ

Buck Switching Regulator IC Adjustable 1.3V~37V 1 Output 3A TO-263-5L

TO-263-5LRoHSActive

DC-DC switching step-down converter

Manufacturer: GR
Manufacturer part #: LM2596S-ADJ
Store part #: C19631825
Package / case: TO-263-5L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,750 in stock

#C19631825

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹65.94	₹65.94
10+	₹52.01	₹520.10
30+	₹46.13	₹1,383.90
100+	₹38.74	₹3,874.00
500+	₹31.78	₹15,890.00
800+	₹29.82	₹23,856.00

Quantity (min 1)

1 × ₹65.94

₹65.94

excl. GST

₹77.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 800 per reel

LM2596S-ADJ

₹65.94 for 1 + GST

Specifications

Operating Temperature: -20℃~+70℃
Frequency - Switching: 170kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Topology: Buck
Output Type: Adjustable
Operating Voltage: 4.5V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 1.3V~37V
Output Current: 3A
Quiescent Current: 2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 800 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.844 g

Overview

The LM2596-xx series is a DC/DC step-down switching converter controlled by a fixed-frequency 170kHz PWM. It mainly consists of internal frequency compensation, fixed-frequency oscillator, built-in overcurrent protection, and power switch control circuits. Capable of driving 3A loads, it offers high efficiency, low ripple, and excellent line and load regulation. Only a minimal number of external components are required to implement DC/DC step-down voltage regulation, making it simple and practical. The PWM control circuit can linearly adjust the duty cycle from 0 to 100%. It supports external enable control. When overcurrent occurs, a built-in secondary overcurrent protection module activates, reducing the PWM frequency from 170kHz to 50kHz.
